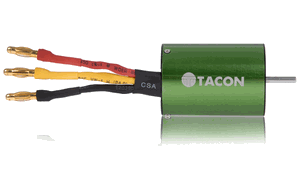

Tacon 3650-9T Brushless Motor 3930KV for 1/10th On-Road RC Car
New
1 was available
R400.00
0% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable. Check my rate
The seller has indicated that they will usually have this item
ready to ship within 3 business days.
Shipping time depends on your delivery address.
The most accurate delivery time will be calculated at checkout,
but in general, the following shipping times apply:
You have to watch the Video  youtube.com/watch?v=jZ8mo-IY38g  I am running Tacon motors in three of my cars, My HPI Sprint, Yokomo YR4, and my small 1/18 short course truck and the performance is amazing.
Â
code                                     96m23-car-3650-3930 Net Weight (g)                       223 Watts                                   900 Outer Diameter?mm)             35.8 Length (mm)                          50 Stator                                   21MM No of cells (lipo)                    3 max efficiency (%)               85%-89% max efficiency current          72 no load current(A)/               7.4V 3.6 Internal Resistance (mohm)  0.0086 Shaft Diameter (mm)            3.175 Shaft Length (mm)               16 KV (RPM/VOLT)                  3930 Turns (for cars)Poles            9T/2POLES Max Voltage                       12.6 Wire Size                           0.34 Bullet Connectors               YES Bullet Connector Size         4.0MM design for                           FSD
Â
youtube.com/watch?v=jZ8mo-IY38g
Â
I am running Tacon motors in three of my cars, My HPI Sprint, Yokomo YR4, and my small 1/18 short course truck and the performance is amazing.
Net Weight (g)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 223
Watts                                   900
Outer Diameter?mm)Â Â Â Â Â Â Â Â Â Â Â Â Â 35.8
Length (mm)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 50
Stator                                   21MM
No of cells (lipo)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 3
max efficiency (%)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 85%-89%
max efficiency current          72
no load current(A)/Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 7.4VÂ 3.6
Internal Resistance (mohm)Â Â 0.0086
Shaft Diameter (mm)Â Â Â Â Â Â Â Â Â Â Â Â 3.175
Shaft Length (mm)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 16
KV (RPM/VOLT)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 3930
Turns (for cars)Poles            9T/2POLES
Max Voltage                       12.6
Wire Size                           0.34
Bullet Connectors               YES
Bullet Connector Size         4.0MM
design for                           FSD
