Tactile Switch with Cap 12mm
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details

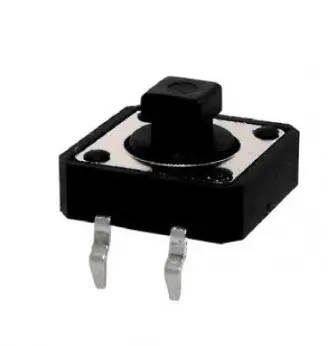

12mm Tactile Switch with Cap
Are you looking for a reliable and durable switch to complete your next project? Then look no further than the 12mm Tactile Switch with Cap! This handy switch is perfect for hobbyists looking to build their own unique projects.
Tactile Switches or tact switches are on/off electronic switch that is only on when there is some pressure put on them or when the button is pressed. As soon as the tactile switch button is released and the pressure has been taken off, the circuit is then broken. Tact switches work with user interaction with the button or switch when it makes contact with the control panel beneath, in most cases this is usually a printed circuit board (PCB)
Give your next project a very satisfying button-pressing sound with our 12mm tactile switches that come with caps to not only make it sound satisfying but also make it visually appealing.

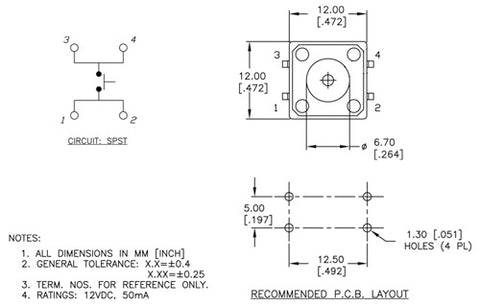

Schematic
The schematic above shows us the dimensions of the 12mm Tactile Switch as well as how it looks on the inside and this should give you a good idea of how they work when you press and release the button.
Note: Colors may vary
12mm Tactile Switch with Cap Specification
Contact Configuration | SPST |
Terminal Type | Solder, Through Hole |
Switch Operation | Momentary |
Actuator Length | 3.8mm |
Actuator Type | Button |
Length | 12.5mm |
Width | 12mm |
Dimensions | 12 x 12.5mm |
Illuminated | No |
Mounting Type | Through Hole |
Contact Current Rating | 50 mA @ 12 V dc |
Operating Force | 3.53 N |
Height | 7.3mm |
Voltage Rating | 12V dc |
Maximum Operating Temperature | +85C |
Operating Temperature Range | -40 → +85C |
Contact Material | Silver Plated Stainless Steel |
Minimum Operating Temperature | -40C |
Mechanical Life | 200000Cycles |
Documentation
- Datasheet
