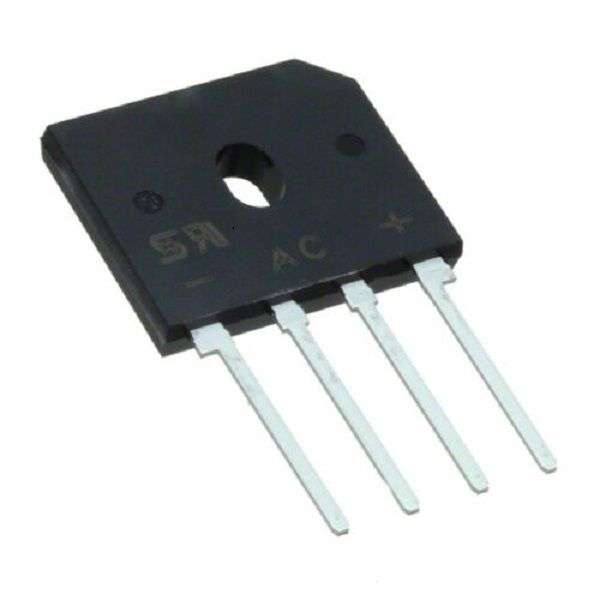

Taiwan Semiconductor (GBU402) Bridge Rectifier, Single Phase, 100 V, 4 A

Bridge Rectifier, Single Phase, 100 V, 4 A, SIP, 4 Pins, 1 VProduct OverviewThe GBU402 is a 4-pin single-phase glass passivated Standard Bridge RectifierDiode with moulded plastic body case. It has terminals leads solderable perMIL-STD- 750, Method 2026 and high temperature soldering guaranteed 250°C/10seconds/0.375-inch lead lengths at 5lbs tension.UL94V-0 Flammability ratingIdeal for printed circuit board150A Peak surge overload rating70V Maximum RMS voltage-55 to 150°C Operating junction temperature rangeApplicationsMains RectificationProduct InformationNo. of Phases: Single PhaseRepetitive Peak Reverse Voltage: 100VAverage Forward Current: 4ABridge Rectifier Case Style: SIPForward Voltage Max: 1VNo. of Pins: 4PinsBridge Rectifier Mounting: Through HoleForward Surge Current: 150AOperating Temperature Max: 150°CProduct Range: GBU40
