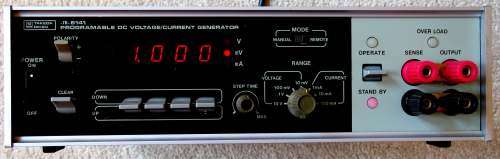

Takeda Riken Programable DC Voltage/Current Reference Standard

This model TR 6141, programable, precision DC Voltage/Current generator was originally Japanese Gov. approved as a standard for instrument calibration. It provides the following outputs: -

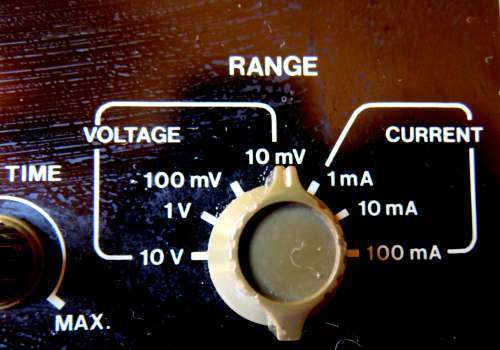

Voltage output = 1mV (.001V) to 10V in steps of 1mV

Current output = 1mA(.001A) to 100mA (.1A) in steps of 1mA

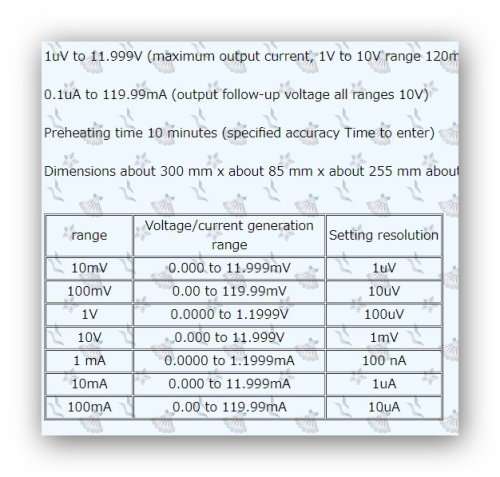

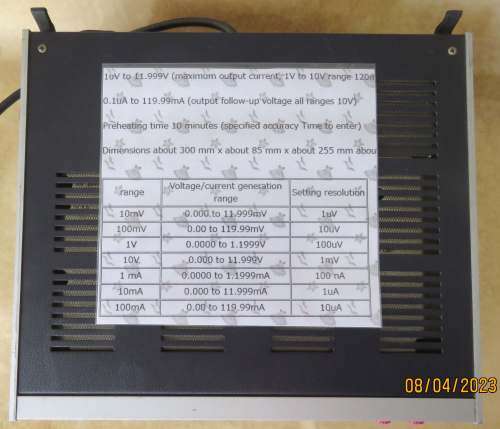

Accuracy is within 1uVs and 1uAs range. See chart in photos.

The purchase price was R9475 and has been in frequent use until last year with closure of a business.  It was used for repair and calibration of process/sensor/ measuring instruments including common multimeters.

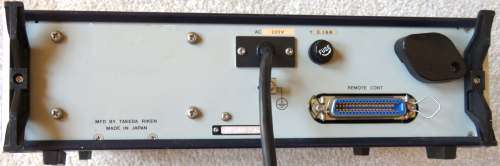

  It is in 100% working condition and cosmetically 10/10.  There is no user manual included since this was originally in Japanese only.  However, operation is simple and controls are self-explanatory.  These is also no carry handle since it was rack mounted.

!
