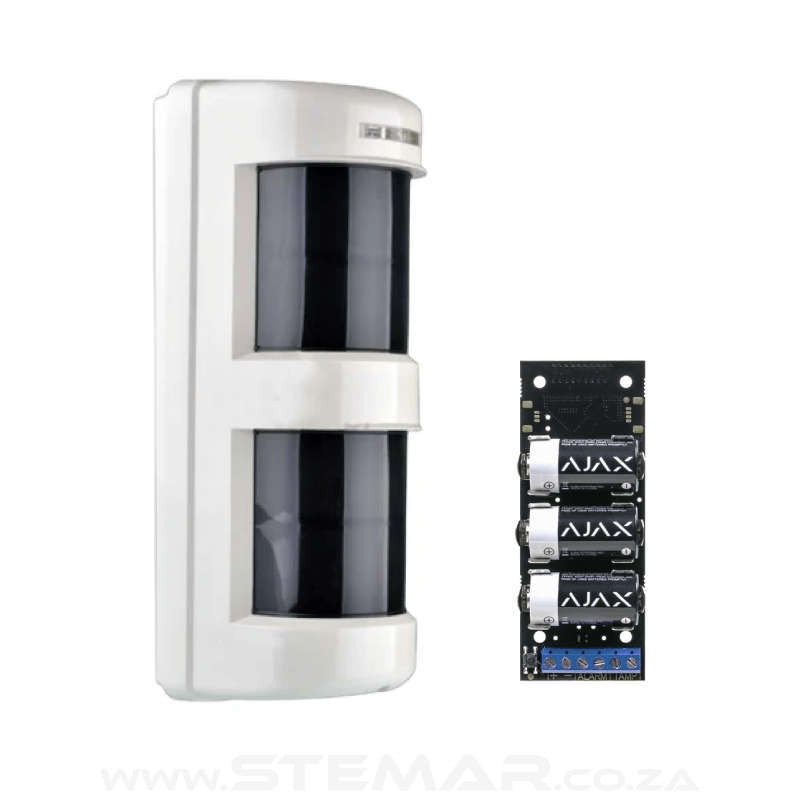

The Takex 180 Ajax Integration Kit consists of the following:

  • 1x Takex TX-114FR 180° wireless outdoor PIR
  • 1x Ajax transmitter for integration, including batteries



*Click HERE to request a quotation for best pricing on Ajax products

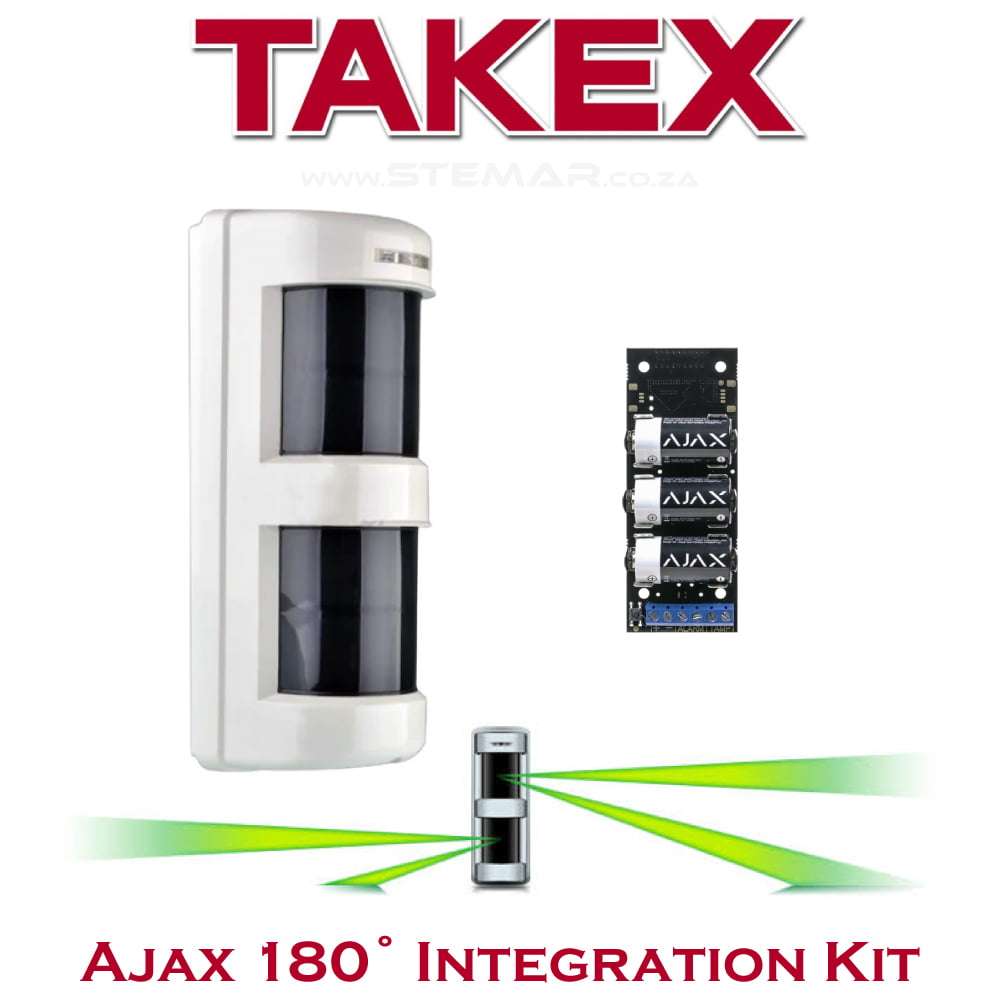

Takex 180 Ajax Integration Kit

How is it used?

The Takex TX-114FR detector has 2x dual 90° sensors allowing for 180° detection for up to 12 metres.

Features:

With its 4 x 12m PIR detectors (2 x heads) giving up to 180 degrees of effectively pet immune coverage, the TX-114FR remains the professional choice for reliable, trouble-free outdoor motion detection. Incorporating key features such as day/night discrimination, variable timer alarm relay, NO/NC output, pulse count and sensitivity adjustments, there really is no need to look further.

Dual zone detector with 2 heads (4 PIR's) for detection in both horizontal and downward zones
Pet immunity for small animals
180º coverage detection 2m to 12m
Back tamper and pole mount kit
and/or detection mode, day/night sensor, adjustable pulse count/sensitivity
Mounting height 0.8m to 1.2m
1 year warranty



Technical Specifications

Detection systemPassive infrared
CoverageHorizontal detection Angle: 90° (x2)
Detection distance: 12m
Horizontal zone: 7 zones (x2)
Downward zone: 7 zones (x2)
Mounting height0.8 - 1.2m
Area adjustmentHorizontal: 90 degrees Detection distance: 2m to 12m
(Adjustable by changing the vertical angle of downward curtain)
Supply voltage3V to 9VDC Alkaline or Lithium Battery
(2.3V to 10VDC operation voltage)
Current consumption35A
5mA/3V (Test mode)
Alarm outputSolid State Switch N.C./N.O. selectable
10VDC · 0.01A Max
One shot output when detecting objects (approx. 2sec)
Trouble outputReal time output
· when the unit suffers functional trouble. (From terminal of Alarm)
Tamper outputReal time output
· when the cover is detached from the unit
· when the unit is detached from the installed wall or pole.
· when compartment is separated from back plate
LED indicatorRed LED:
Blinking for approx. 1min during warm-up
Lighting for 1sec at detection during walk-test (LED lights only in a test-mode)
Blinking when trouble alarm is issued (Lights once every 5 sec)
Pulse countOnce/Three times selectable (by dip switch)
Sensitivity adjustmentApprox. 30% to 170% (by rotary switch)
Alarm prohibition time10sec/120sec/300sec/900sec selectable (by dip switches)
Detection modeAND/OR selectable
Mounting positionIndoor/Outdoor [Wall or Pole]
WiringTerminals
Weight620g
AppearanceBody: AES resin
Lens: PE resin
AccessoryMounting screw: 2pcs
Adhesive sheet: 1pc
Area masking sheet: 2pcs
Back tamper disable collar: 1pc
Battery holder: 1pc



Environmental Specification

Ambient temperature-20°C to +50°C
IP RatingIP54



Click HERE to request a quotation for best pricing on Ajax products
