TAMIYA 1\10 scale Wild Dagger - TL01/TL01B

Two motors for a powerful monster   truck

INCLUDES:

1.  2 CHANNEL RADIO

2. NI-MH BATTERY PACK

3. CHARGER

4. 2 CHANNEL RECEIVER

5. 3-SPEED SPEED CONTROLLER

6. TWO 540 MOTORS INCLUDED

COMPLETELY ASSEBLED READY TO RUN.

• Product full name : 1/10 Wild Dagger 4WD Racing Truck
  　

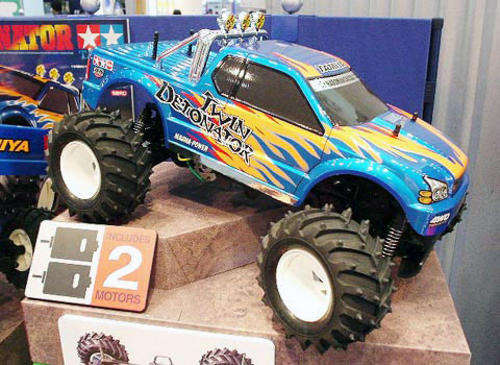

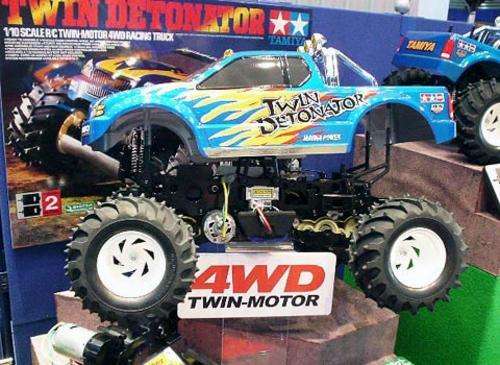

• Thundering around off-road stadiums with immense tires, Monster Trucks have fascinated the world for years. Tamiya is proud to present its latest radio-controlled monster truck: the Twin Detonator. In order to generate power worthy of its dynamic image, the chassis has been equipped with a motor in both the front and the rear. With the battery located in the middle of the chassis, the Twin Detonator is perfectly balanced for rough riding. The centrally positioned servo ensures the equal alignment of the steering tie rods, improving control. The four-wheel double wishbone suspension offers flexible handling over all road conditions.

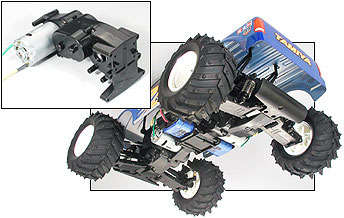

  【   Two motors for a powerful monster truck    】　The chassis adopts a sturdy gear-train, firmly holding the gearboxes on both sides with a semi-monocoque frame. This arrangement guarantees stability on even the toughest of terrain, and allows easy access and maintenance of gearbox without disassembly.

Overall length=431mm, Overall width=310mm, Overall height=243mm.

• Clearance: 47mm
• Weight Fully-Equipped: 2,360g
• Wheelbase: 281mm
• Tread F/R: Both 250mm
• Polycarbonate body equipped with a metal-plated roll bar.
• Chassis Material: Polycarbonate
• Chassis Shape: Monocoque Frame
• Steering Tie Rod: 2 part
• Suspension Front and Rear: Double Wishbone
• Front and rear gearboxes come pre-assembled.
• Gearboxes can be removed from chassis for maintenance without having to disassemble the rest of the chassis.
• Features 4 independent double wishbone suspensions with large diameter monster truck tires.
• Caster Angle-F/R: Both 0deg
• Camber Angle-F/R: Both 0deg
• Toe Angle-F/R: 0(variable)/0deg
• Damper: F/R Friction Damper
• Transmission Type: Shaft Twin-motor Full-time 4WD
• Gear Ratio: 18.3:1 (16.5:1)
• Diff. gear system: F/R 3 Bevel Gear Dif
• Mechanical 3-speed controller and two Type 540 motors included.
• Tire Width F/R: Both 60mm
• Tire Diameter F/R: Both 130mm
