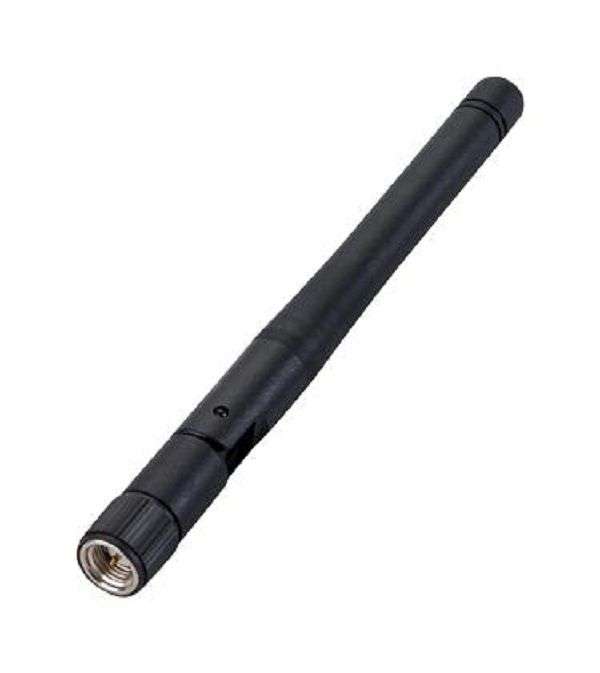

Taoglas (GW.15.2113) Whip Antenna, 2.4GHz to 2.5GHz, 1.8 VSWR, 6dBi Gain

Whip Antenna, 2.4GHz to 2.5GHz, 1.8 VSWR, 6dBi Gain, 50ohm, VerticalPolarisation, SMA ConnectorThe GW.15 2.4 GHz dipole SMA plug mount antenna is ideal for 2.4 GHz wirelessapplications such as Bluetooth and Wireless LAN. At only 108mm in length, anomni-directional 6dBi gain across all bands ensures constant reception andtransmission. The antenna structure is designed for robust handling and thehousing is made with TPU giving superior environmentalreliability and a quality finish. The antenna can be rotated 90 degrees on thebase hinge for ease of placement.Many module manufacturers specify peak gain limits for any antennas that are tobe connected to that module. Those peak gain limits are based on free-spaceconditions. In practice, the peak gain of an antenna tested in free-space candegrade by at least 1 or 2dBi when put inside a device. So ideally you should gofor a slightly higher peak gain antenna than mentioned on the modulespecification to compensate for this effect, giving you better performance.Product InformationAntenna Type: WhipFrequency Min: 2.4GHzFrequency Max: 2.5GHzVSWR: 1.8Gain: 6dBiAntenna Mounting: SMA ConnectorInput Power: 10WInput Impedance: 50ohmAntenna Polarisation: Vertical
