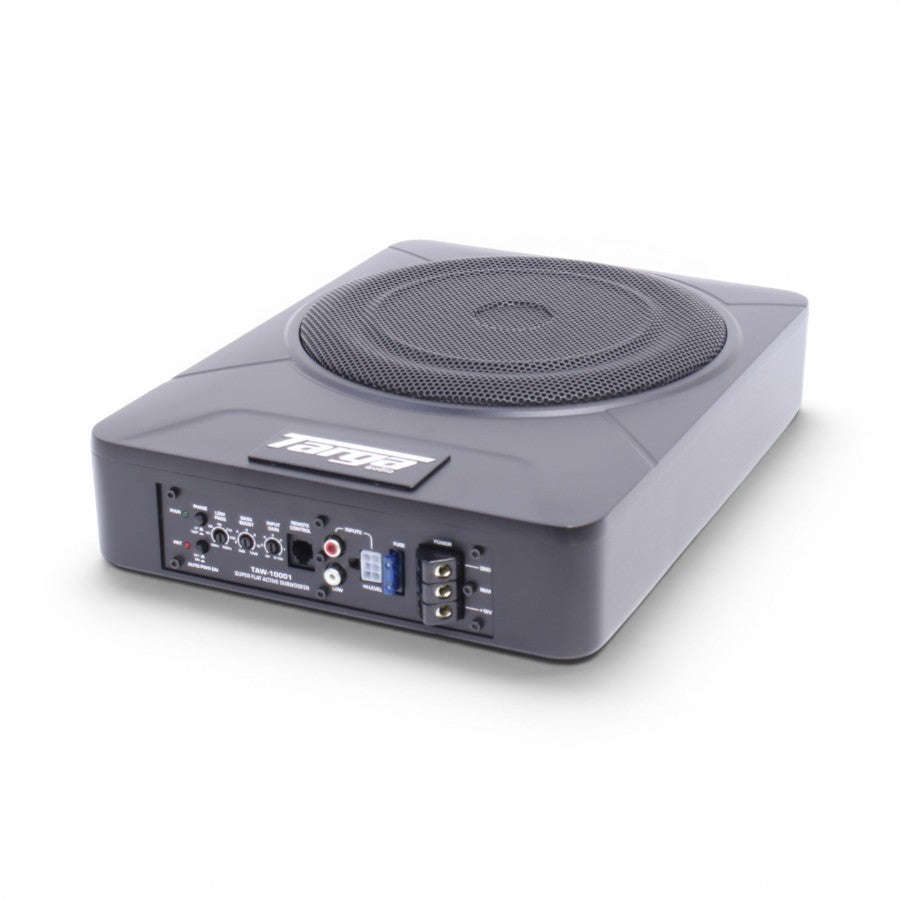

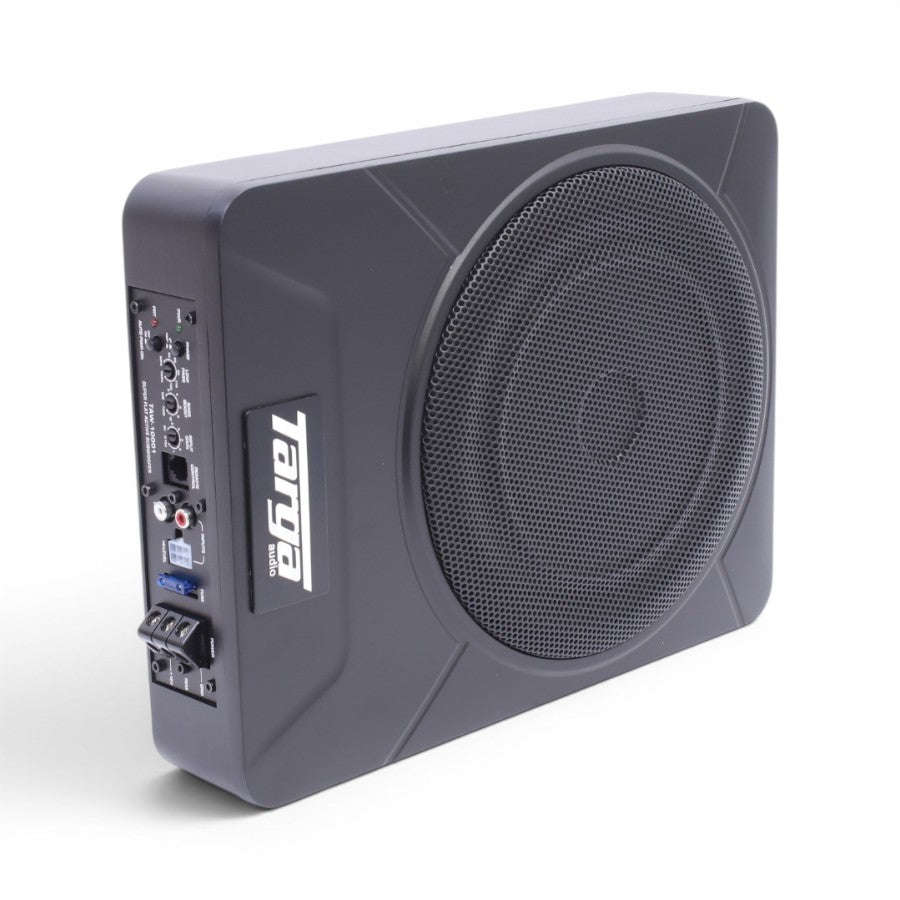

Targa TAW-10001 10" 10 000w Active Subwoofer/Amplifier Unit
The TAW-10001 Compact Active Subwoofer adds powerful, controlled bass to your vehicle without taking up valuable cabin or boot space.
Its ultra-slim 2.5-inch enclosure is well suited to convertibles, pick-up trucks, cargo vehicles and family cars. The built-in MOSFET mono amplifier provides an all-in-one bass solution, eliminating the need to install a separate amplifier.
Adjust the sound to suit your vehicle using the variable low-pass filter, 012 dB bass boost and 0180° phase control. Speaker-level and RCA inputs allow connection to factory-fitted or aftermarket audio systems, while the included wired remote lets you adjust the bass from the driver's seat.
FEATURES
Compact 2.5-inch-high enclosure
Built-in MOSFET mono amplifier
Variable 50150 Hz low-pass filter
Adjustable 012 dB bass boost
Adjustable 0180° phase control
Speaker-level and RCA inputs
Compatible with factory and aftermarket audio systems
Wired bass remote control
Die-cast aluminium heatsink
Space-saving installation design
Suitable for cars, convertibles, pick-up trucks and cargo vehicles
SPECIFICATIONS
Model: TAW-10001
Product type: Compact active subwoofer
Frequency response: 20150 Hz
Low-pass frequency: 50150 Hz
Signal-to-noise ratio: 91 dB
Phase adjustment: 0180°
Bass boost: 012 dB
Low-level input sensitivity: 100 mV6 V
High-level input sensitivity: 18 V
Operating voltage: 14.4 V
Supported voltage range: 1016 V
Enclosure height: 2.5 inches / 63.5 mm
Amplifier type: Built-in MOSFET mono amplifier
Inputs: Speaker-level and RCA
Recommended power cable: 8-gauge
