TAS5630 Subwoofer Amplifier Board Class D 2.1 Channel Digital Sound Amplifiers 150Wx2+300W

Description:

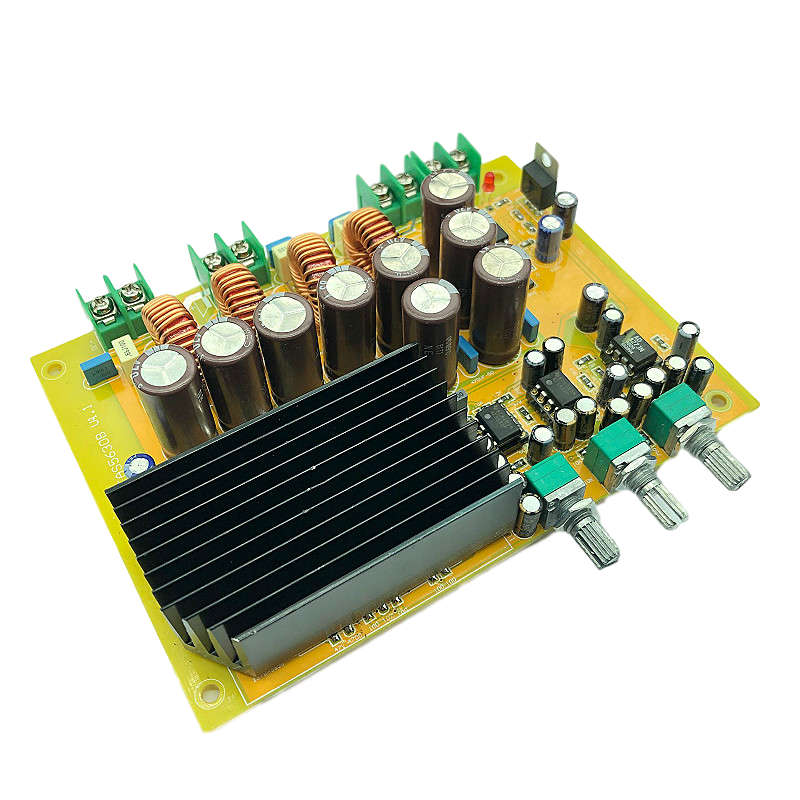

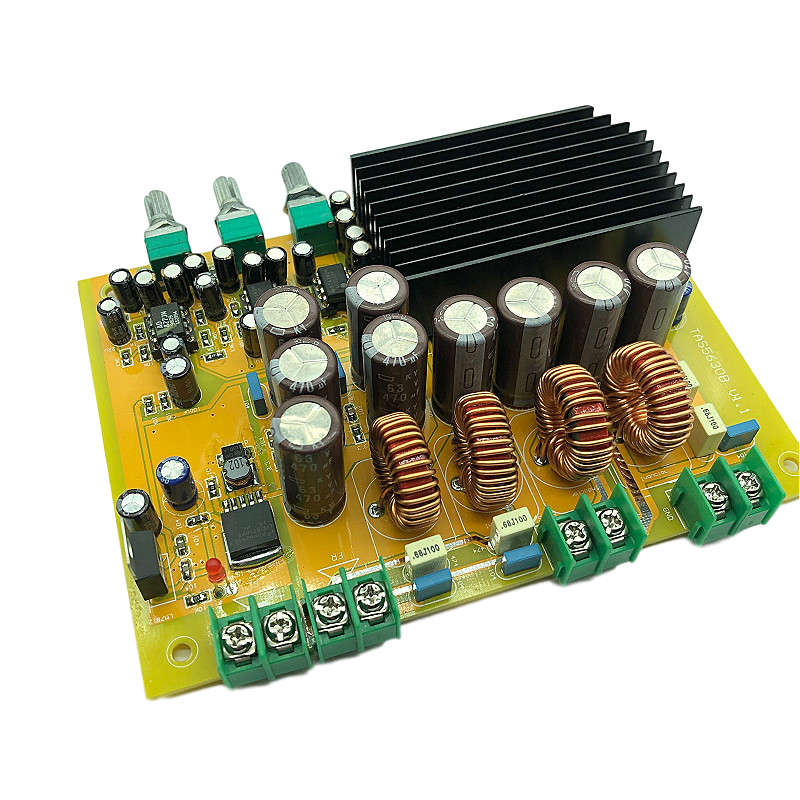

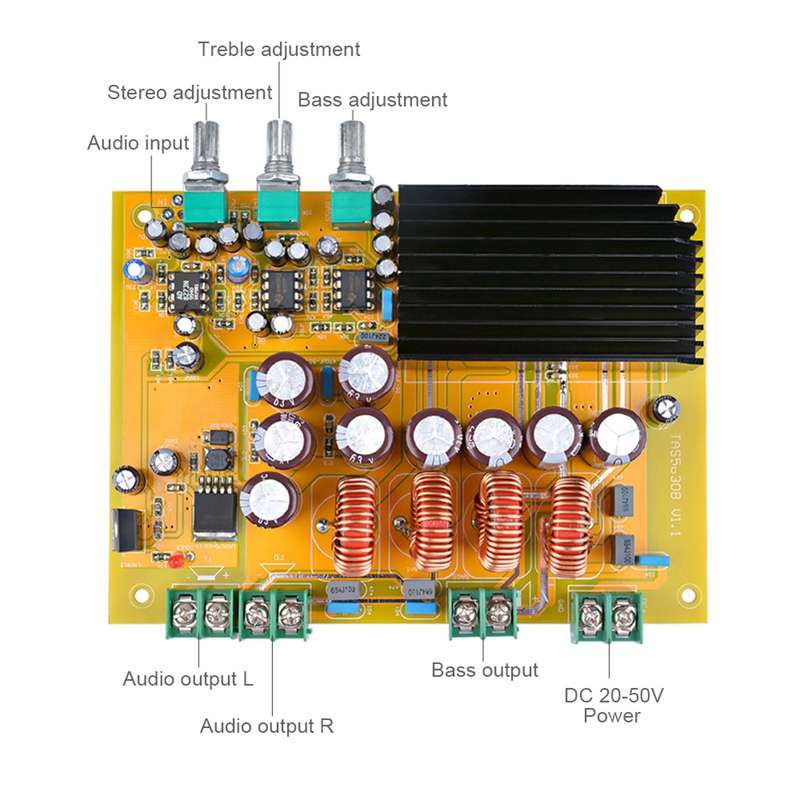

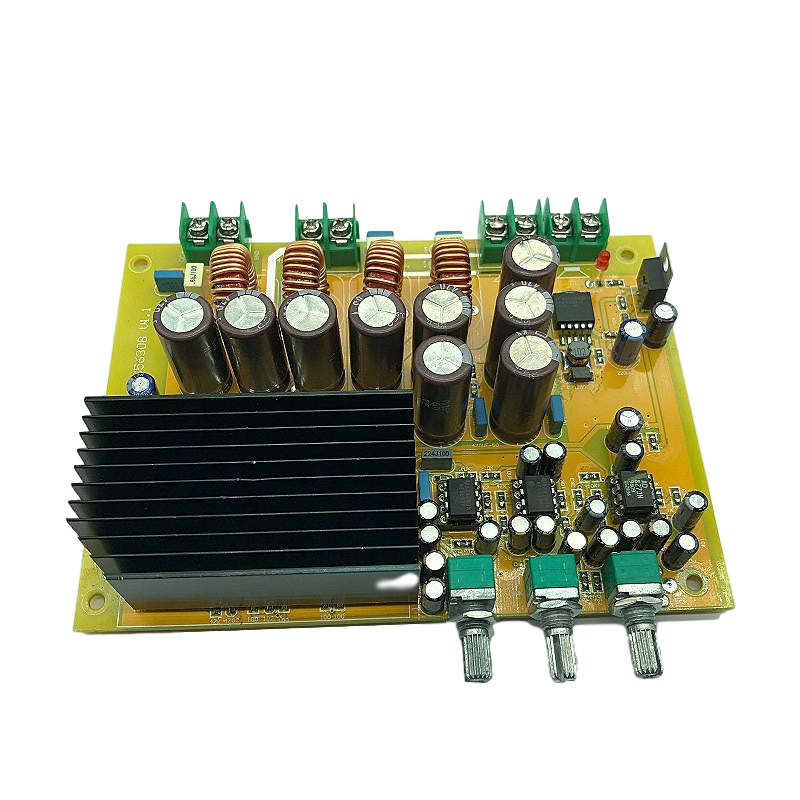

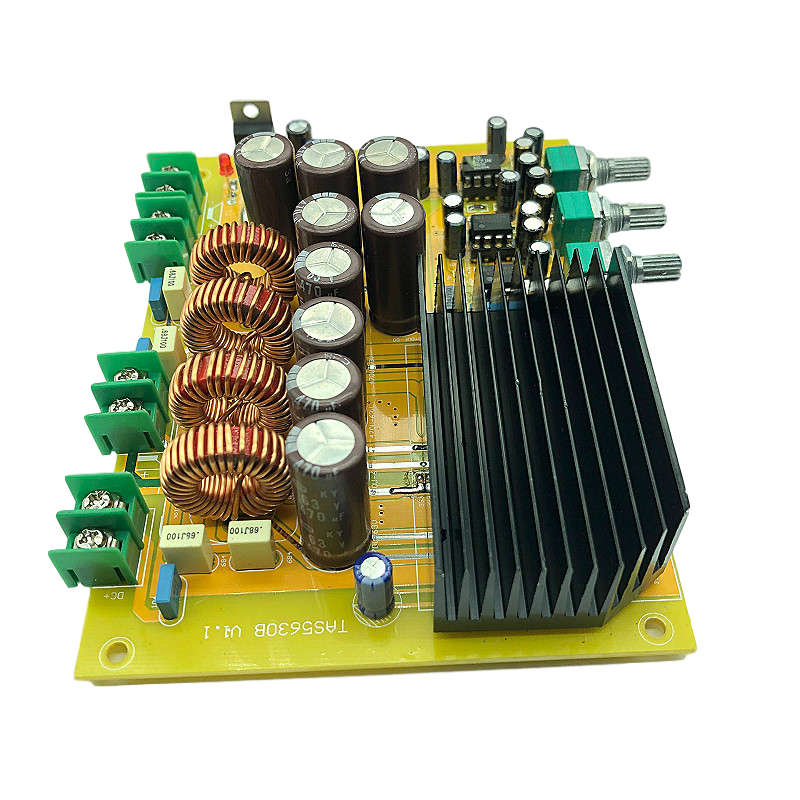

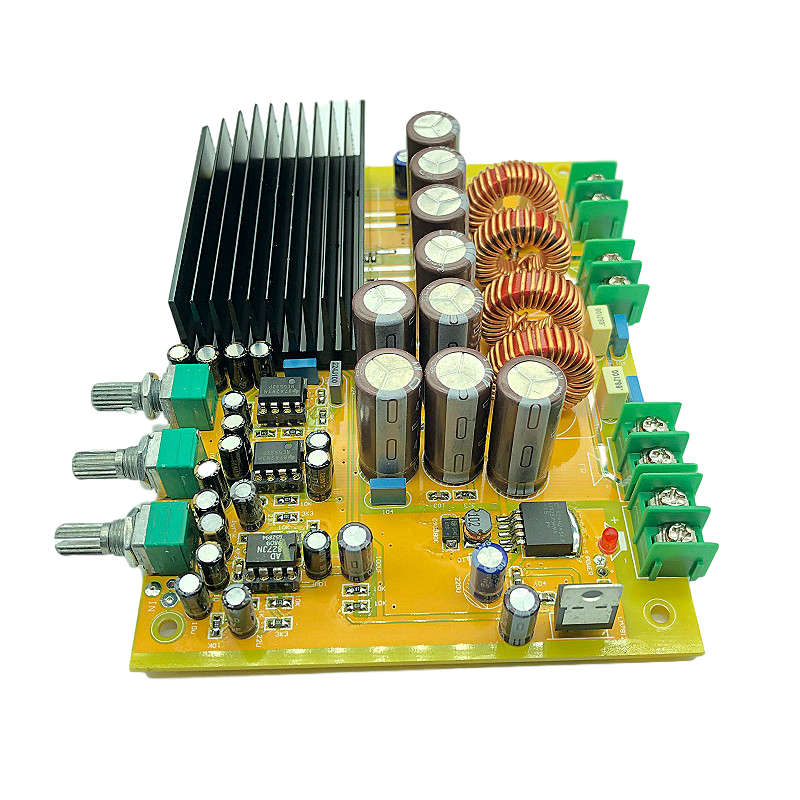

This product is a TAS5630 channel power amplifier board. It is a DC power supply. Use an AC adapter and insert a rectifier bridge and filter capacitor. It has powerful functions and quiet operation.

Features:

High-definition media playback and ultra-low distortion in Blue ray home theater systems, stand-alone home theaters, and professional systems. Is the current top digital amplifier

This is a flagship digital amplifier. Its analytical power and details are all extreme. Its driving force is very powerful and its power consumption is very low.

The op amp is used as the left and right channel preamplifiers, with excellent dynamic and detail performance.

This board is a finished board that can be used when powered.

Specification:

Maximum Power Per Channel: Above 200W

Model Number: TAS5630

Channels: 3 (2.1)

Color: yellow

Material: metal + pc

Parametric indicator: (subwoofer channel)

DC=50V, R=4Ω, THD+N=10%, P=300W

DC=50V, R=6Ω, THD+N=10%, P=210W

DC=50V, R=8Ω, THD+N=10%, P=160W

DC=50V, R=4Ω, P=240W when THD+N=1%

DC=50V, R=6Ω, THD+N=1%, P=160W

DC=50V, R=8Ω, when THD+N=1%, P=125W

Total Harmonic Distortion (THD+N): <1%

Signal to Noise Ratio (SNR): Greater than 100dB

Input impedance: 20KΩ

Output offset voltage: less than 150mV

Voltage gain: adjustable

Conversion Rate (SR): 50V/us

Frequency Response Range: 20Hz--20kHz

PCB size: 140 * 102MM

Power supply range: DC20--50V (minimum 24V 8A and above)

Note:

The board is a DC power supply. Do not input AC directly. Use an AC transformer, externally connect a rectifier bridge and filter capacitor. In addition, the DC power supply should not exceed 50V and it should not be lower than 20V. If it is less than 20V, it will not start. In addition, there is a relationship between the output power and the power of the power supply. The 50V power will be4 times larger than the power at 20V.

Package included:

1 x High power digital amplifier board
