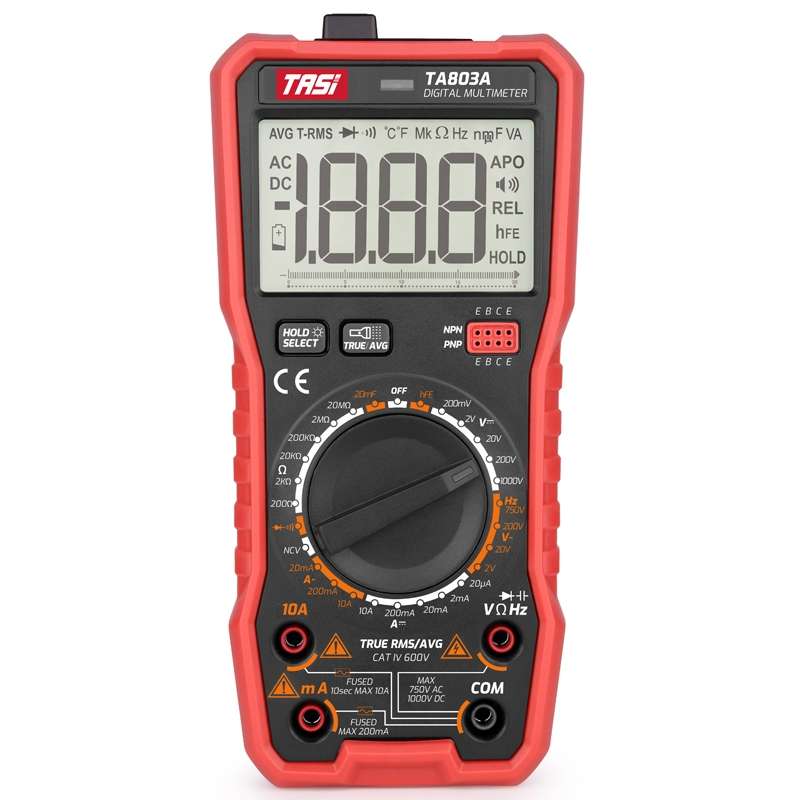

TASI TA803A Digital High Precision Multimeter Digital Display Household Multifunction Electrician Multimeter

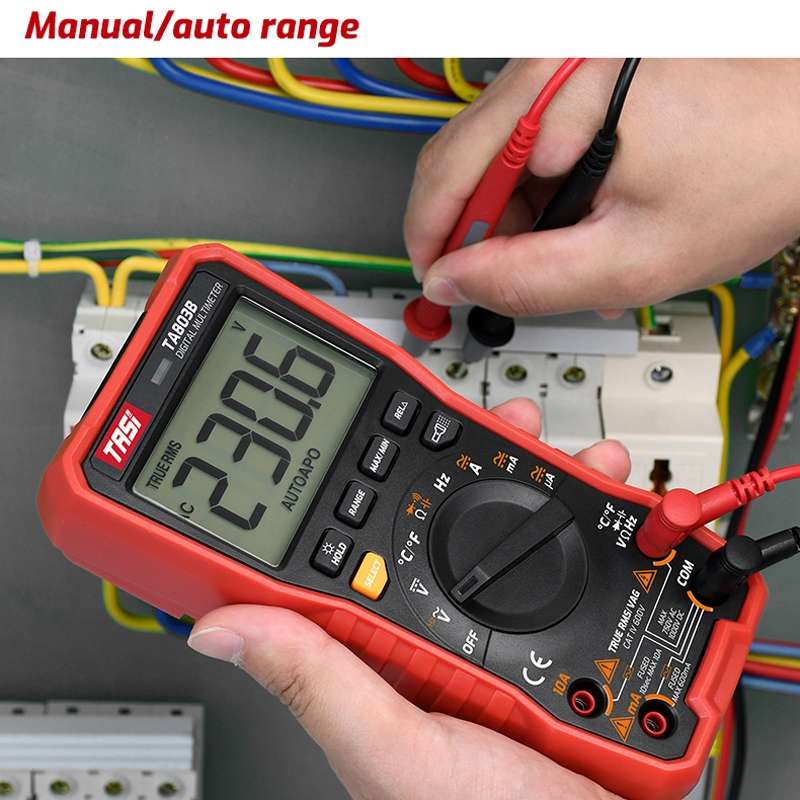

1. Operation mode: TA803A: manual range; TA803B/TA803C: manual/automatic range
2. DC voltage: TA803A/TA803B: 0.1mV-1000V; TA803C: 0.01mV-1000V
3. AC voltage: 0.01mV-750V
4. Current: 0.01uA-10A
5. Capacitance: TA803A: 1nF-20000uF; TA803B: 1nF-6000uF; TA803C: 1nF-2000uF
6. Resistance: TA803A: 0.1 ohm-20 megohm; TA803B: 0.1 ohm-60 megohm; TA803C: 0.01 ohm-20 megohm
7. Frequency: TA803A: 40Hz-1000Hz; TA803B: 10Hz-100kHz; TA803C: 10Hz-20MHz
8. Display: TA803A: 1999 (31/2) bits; TA803B: 5999 (3 5/6) bits; TA803C: 19999 (4 1/2) bits
9. Sampling frequency: about 3 times / second

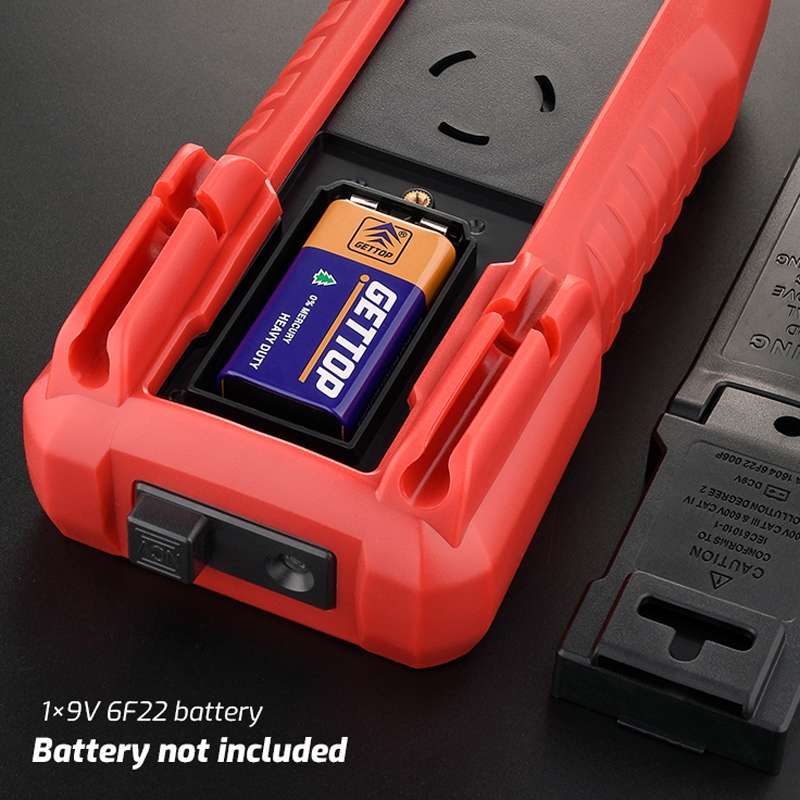

10. Power supply: 9V battery (not included)
11. Automatic shutdown: about 15min
12. General features: intelligent anti-burn-in, low voltage display, rms value, backlight display, on/off alarm, value lock

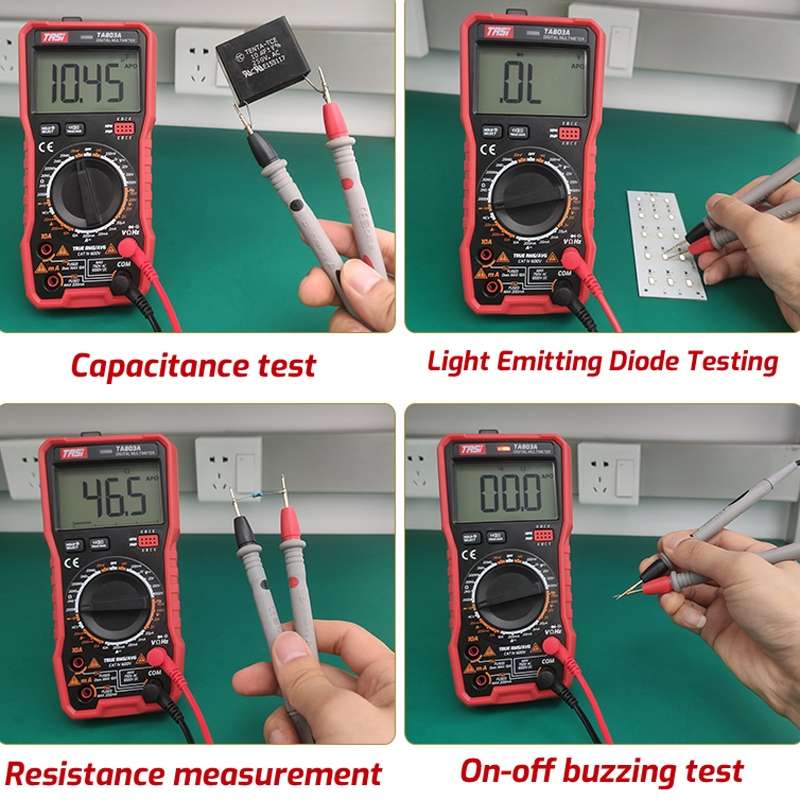

13. Functions:
- TA803A: analog bar display, average value measurement, diode measurement, triode measurement, NCV function
- TA803B: diode measurement, maximum / small value measurement, temperature measurement, duty cycle / relative value
- TA803C: analog bar display, diode measurement, temperature measurement, duty cycle/relative value

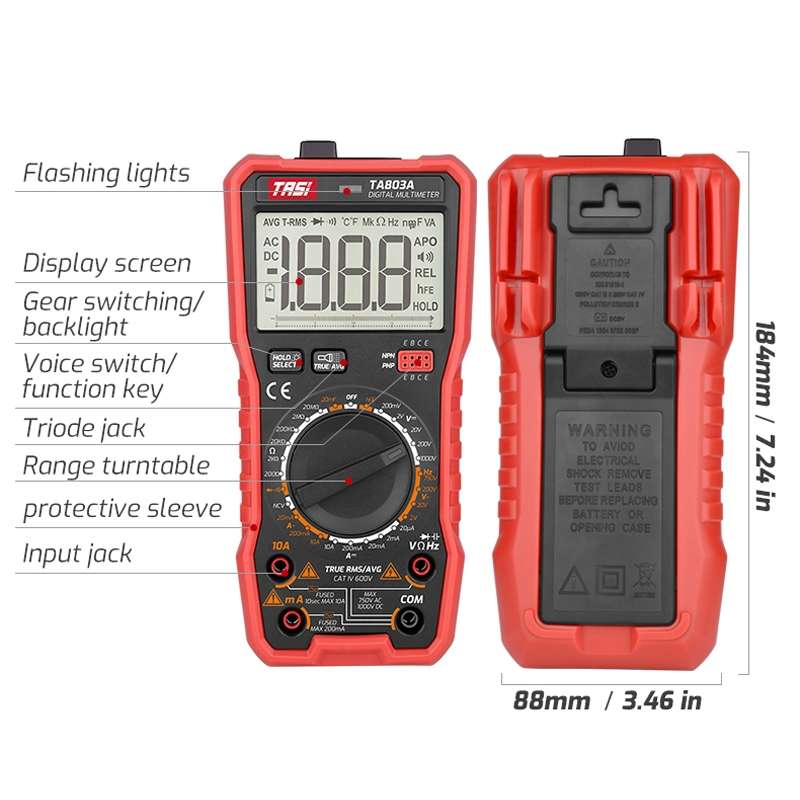

14. Size: about 18.4 x 8.8 x 4.6cm
15. Weight: about 320g

Features:

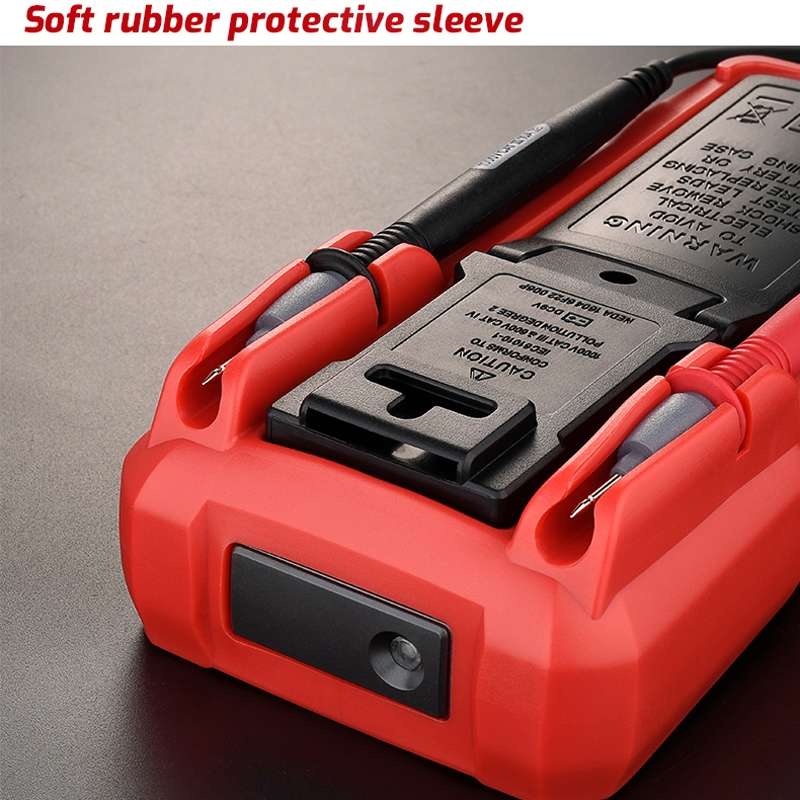

1. Soft rubber protective case + meter pen clip design, leather case can be drop-proof, dustproof, shockproof, meter pen can be stored for protection, to avoid accidental injury
2. Back thickened bracket design, more convenient placement
3. Flashlight lighting function, in the dark environment can also be easily measured
4. Large screen backlight display, easy to read in the dark environment

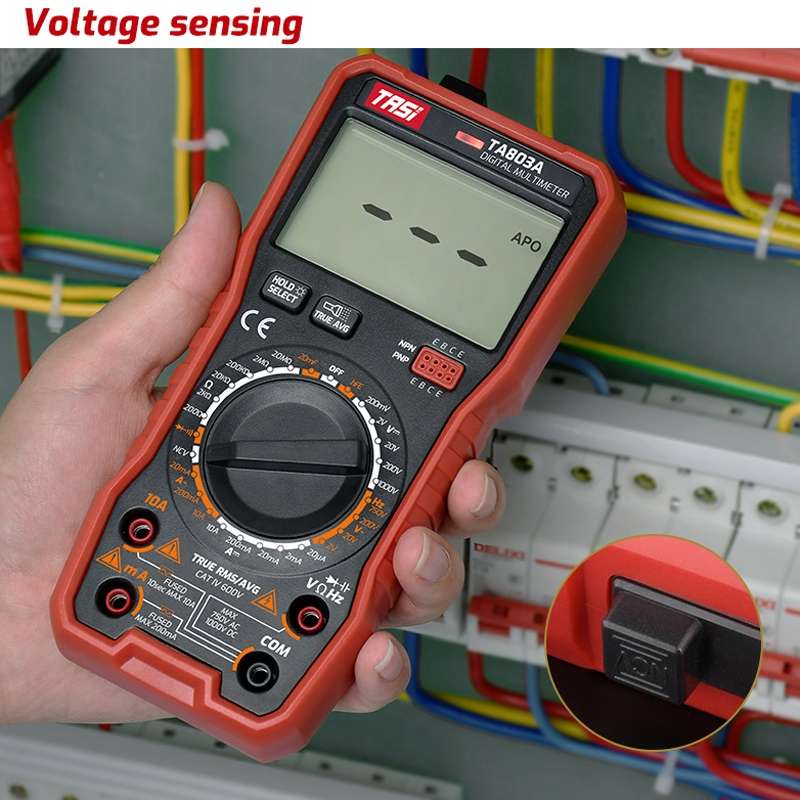

5. NCV voltage sensing function, according to the detected voltage strength, display and different frequency of the beeping alarm sound (only TA803A has)

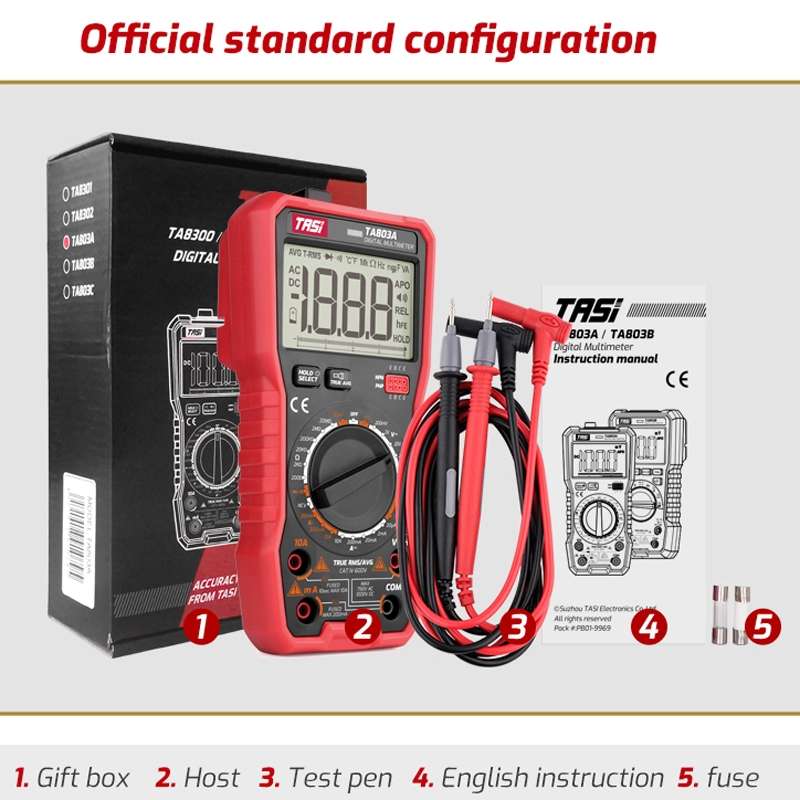

Packing list:
- Host x 1
- Meter pen x 2
- Thermocouple x 2
- Fuse x 2
- Instruction manual x 1


TBD0603775801
