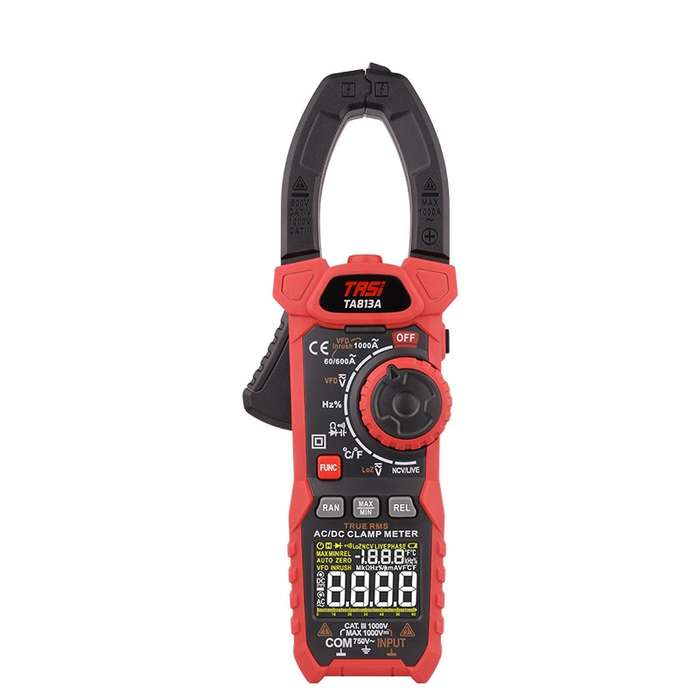

TASI TA813A Clamp Meter High Accuracy AC DC Voltage Ammeter

1. AC voltage: 0.1mV - 1000V
2. AC current: 0.1A - 1000A
3. DC voltage: 0.1mV - 1000V
4. DC current: 0.1A - 1000A (TA813B)
5. Frequency: 10Hz - 10MHz
6. Temperature measurement: -40 - 1000 degrees Celsius
7. Duty cycle: 1% - 99%
8. Resistance measurement: 0.1 ohms - 60 megohms
9. Capacitance measurement: 1nF-100mF
10. Counting: up to 6000 counts
11. Power supply: 3 x 1.5V AAA batteries (not included)
12. Machine size: 240 x 85 x 48mm
13. Machine weight: 362g

Features:

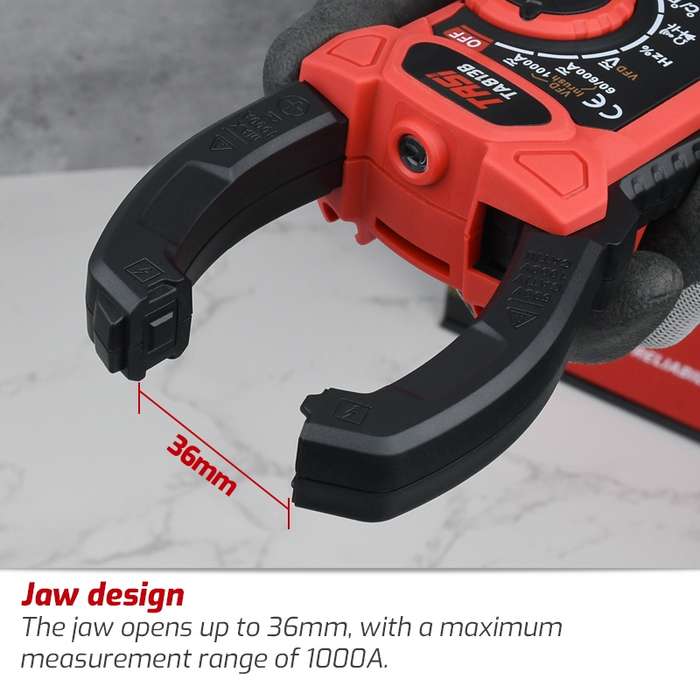

1. The clamp head can open up to 36mm, and the large jaw design can measure 1000A current

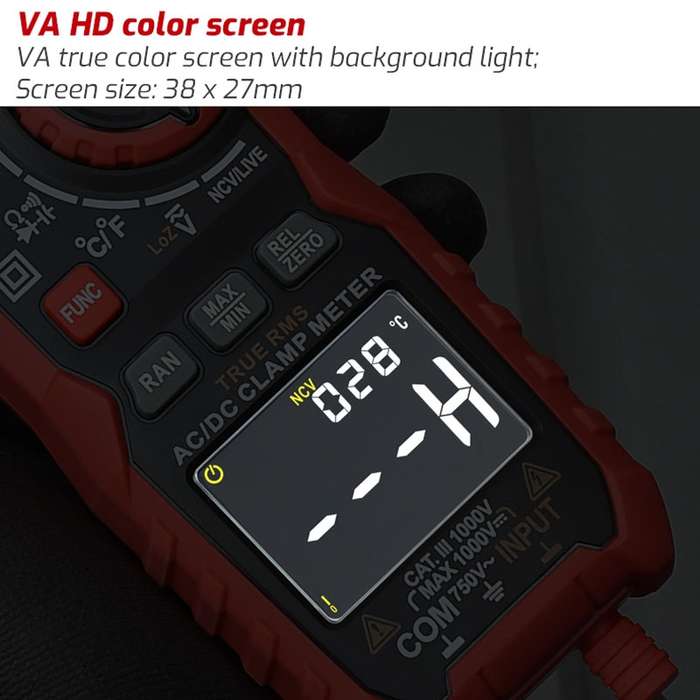

2. VA color screen backlit digital display, reverse display design, easy to view from different angles

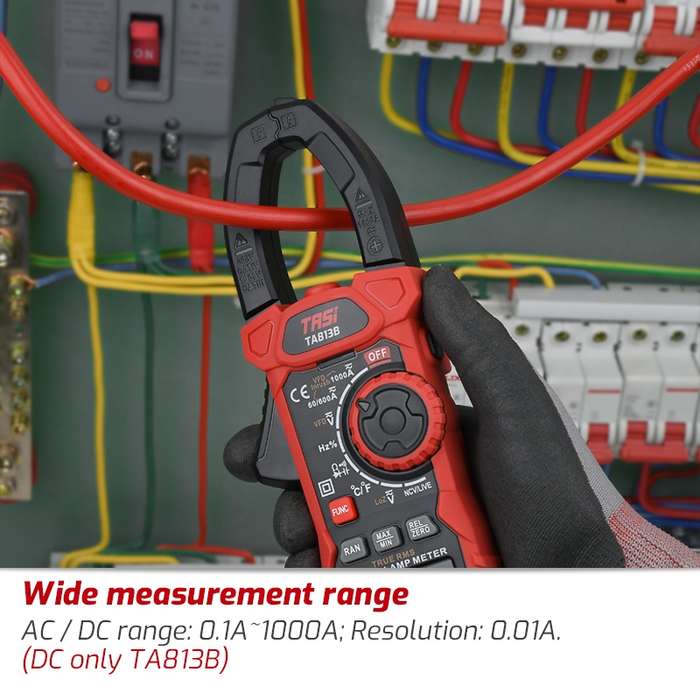

3. AC and DC current measurement, 1000A large range (only TA813B has DC current function)

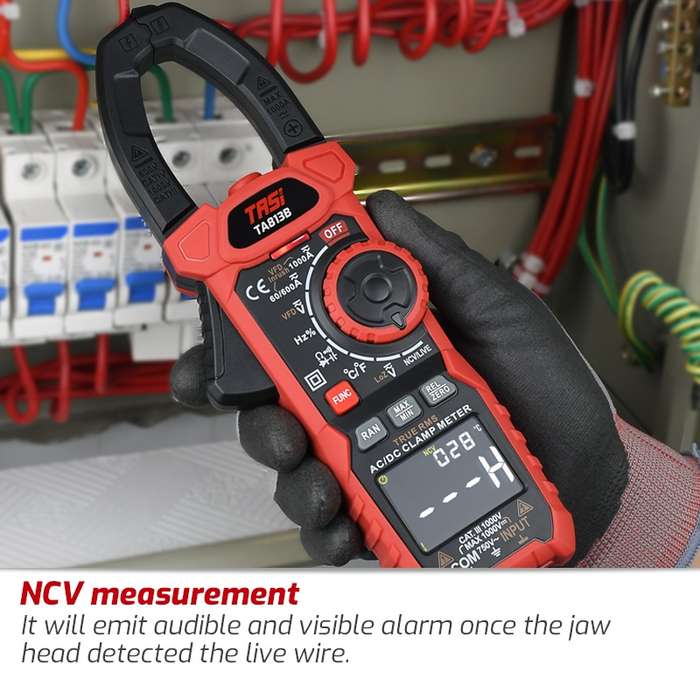

4. NCV non-contact voltage induction, when the clamp head senses the live wire, it will send out an audible and visual alarm prompt

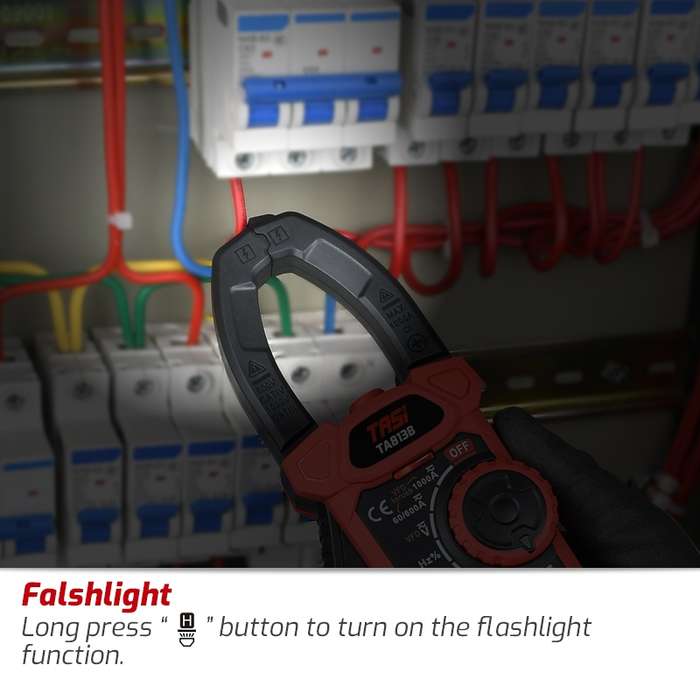

5. Long press the flashlight button on the side to turn on the flashlight lighting, and you can easily measure in dark scenes
6. Double-injection soft rubber design, comfortable to touch, and the test pen can be easily stored in the card slot

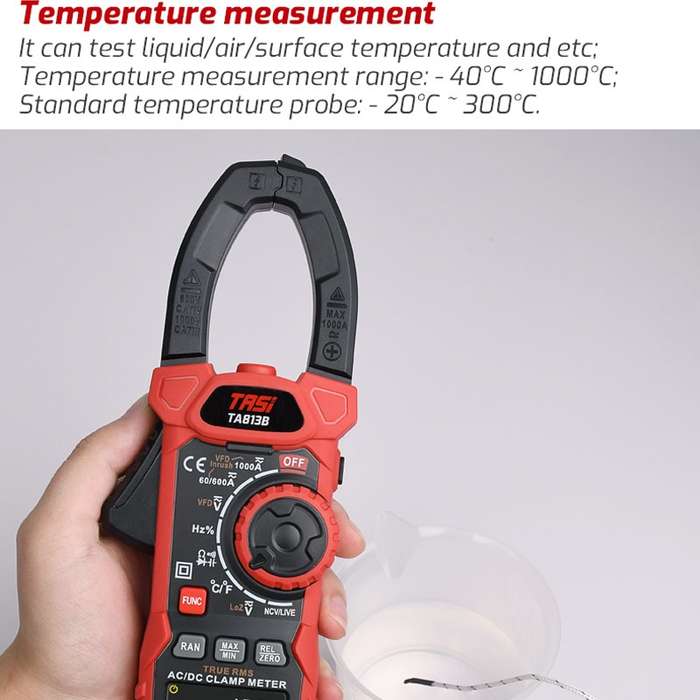

7. Use temperature sensing line to measure liquid/air/surface temperature

Function:
-True RMS
-Continuity test
-Diode test
-Automatic/manual ranging
-Data retention
-Automatic shut-down
-Relative value
-Flashlight
-VFD function
-LowZ
-INRUSH function
-VA color screen digital display
-Max/Min Mode
-Low battery prompt
-NCV non-contact sensing
-DCA ZERO function

Package list:
- Host x 1
- Test lead x 1
- Cloth bag x 1
- Instructions x 1
- Thermocouple x 1


TBD0603686301
