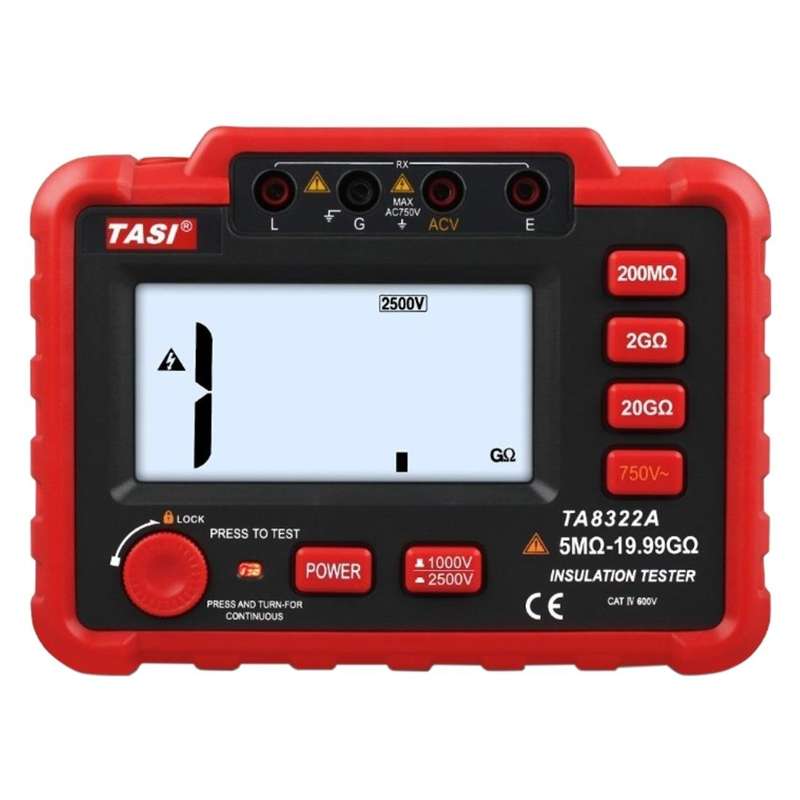

TASI TA8322A High Voltage Digital Electronic Meter Insulation Resistance Tester

1. Material: ABS
2. Output voltage: 1000-2500V
3. Short-circuit current: less than 4mA
4. Voltage test: AC750V
5. Sampling rate: about 3 times per second
6. Maximum display: 1999
7. Measurement method: dual integral A/D conversion
8. Jack position: Insulation resistance: L.E AC750V

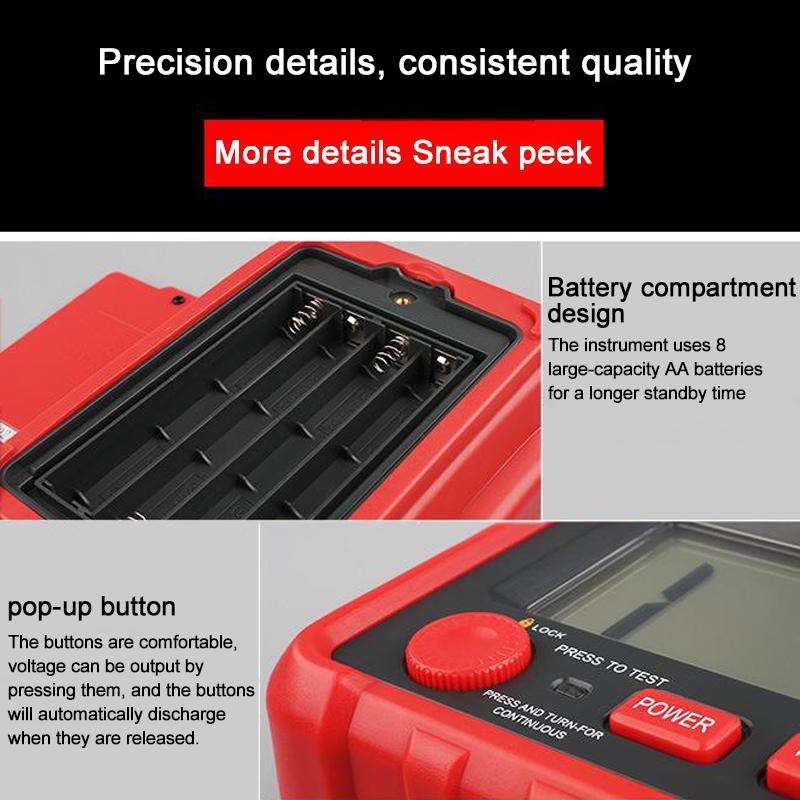

9. Power supply: AA batteries x8 (not included in this product)

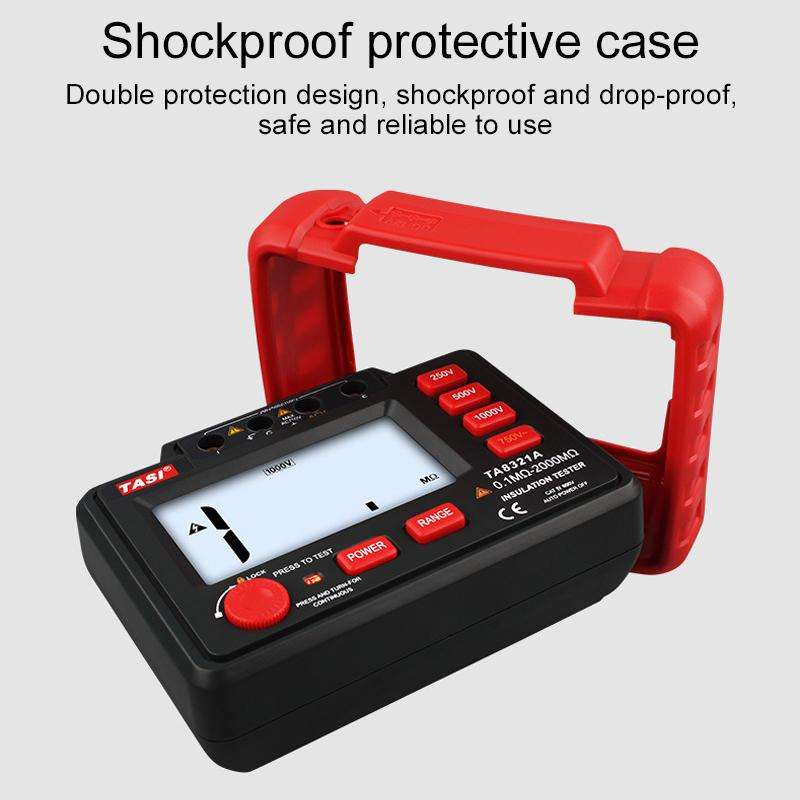

10. Double protection design, shockproof and drop-proof for safe use
11. Alarm function design, the measured resistance is lower than the lower limit of the range, and the reading will automatically alarm when it is invalid

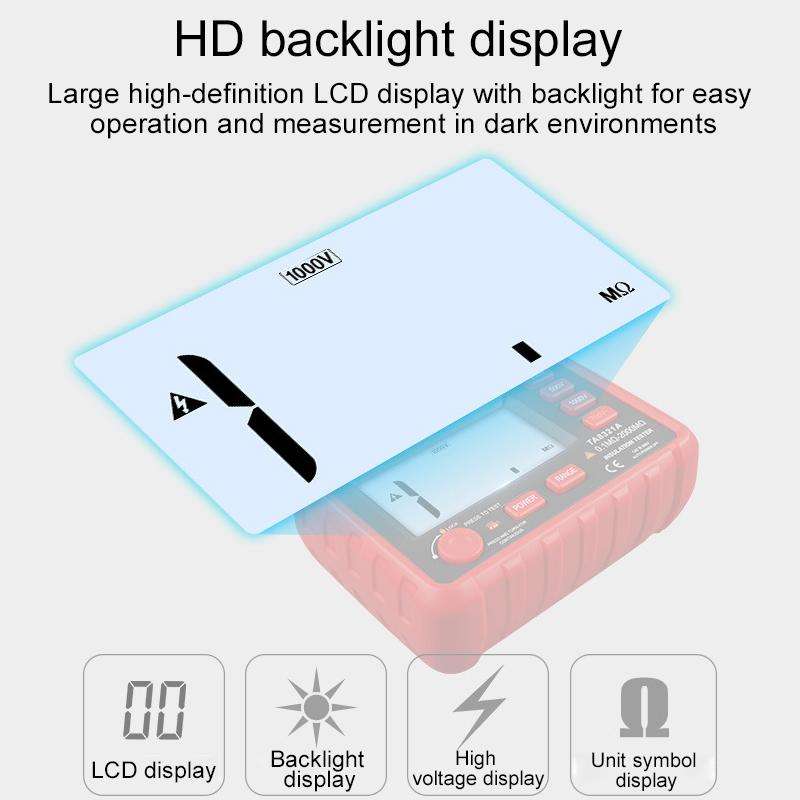

12. Large-screen high-definition LCD display with backlight display, convenient for operation and measurement in dark environments


EDA0081420
