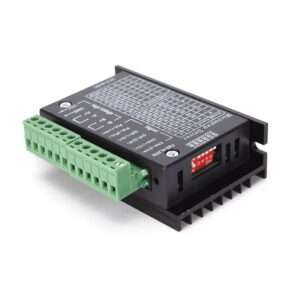

Tb6600 stepper motor controller 4A for micro-controller

Tb6600 stepper motor controller 4A for micro controllers.

Tb6600 stepper motor controller features
Support 8 kinds of current control
Support 7 kinds of micro-steps adjustable
The interface has high-speed optocoupler isolation
Automatic semi-flow to reduce heat
Large area heat sink
Anti-high-frequency interference ability
Input anti-reverse protection
Overheat, over current and short circuit protection

Specification
Input Current: 0~5A
Output Current: 0.5~4.0A
Control Signal 3.3~24V
Power (MAX): 160W
Micro Step: 1, 2/A, 2/B, 4, 8, 16, 32
Temperature: 1045
Humidity: No Condensation
Weight: 0.2 kg
Dimension: 96 * 71 * 37 mm

Comments

• When "EN" is Low, the motor is in a free state (Off-line mode). In this mode, you can adjust the motor shaft position manually; when "EN" is High (Vacant), the motor will be in an automatic control mode.
• "Direction" is the motor direction signal pin,
• "PULSE" is the motor pulse signal pin. Once it gets a pulse, it moves a step.
