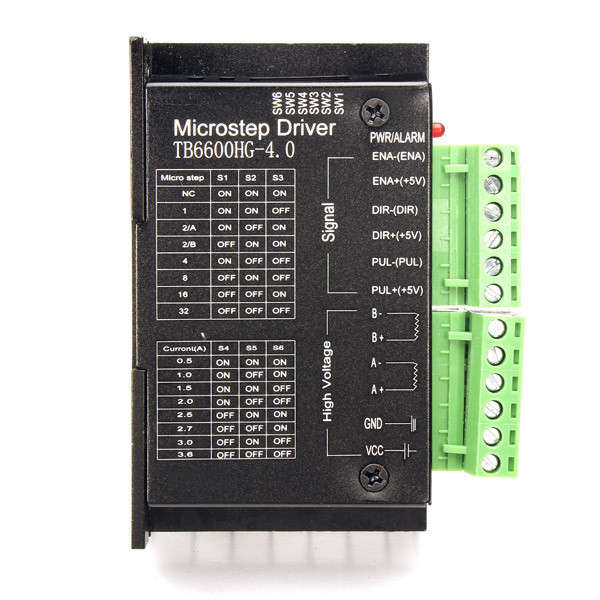

TB6600 Upgraded Version 32 Segments 4A 40V 57/86 Stepper Motor Driver

TB6600 Upgraded Version 32 Segments 4A 40V 57/86 Stepper Motor Driver
Feature:
9V-40V DC power supply
H-bridge bipolar constant phase flow driver
The maximum output current is 4.0A (eight optional)
Up to 32 segments of six kinds of sub-modes available
The input signal high-speed photoelectric isolatio

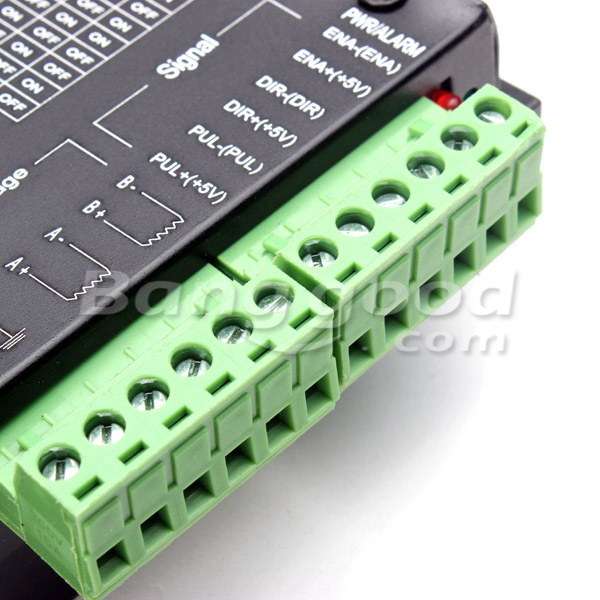

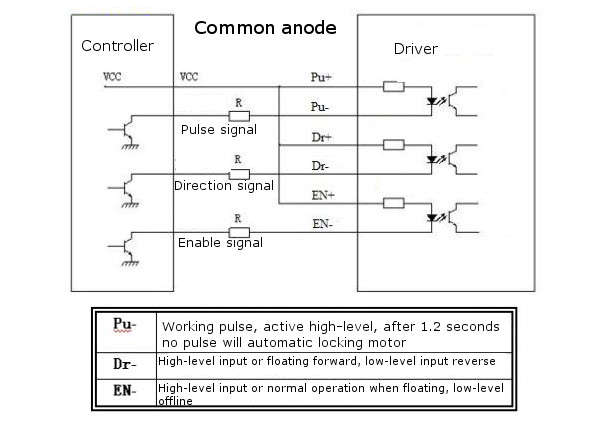

Standard common anode single pulse interface
Offline keep function

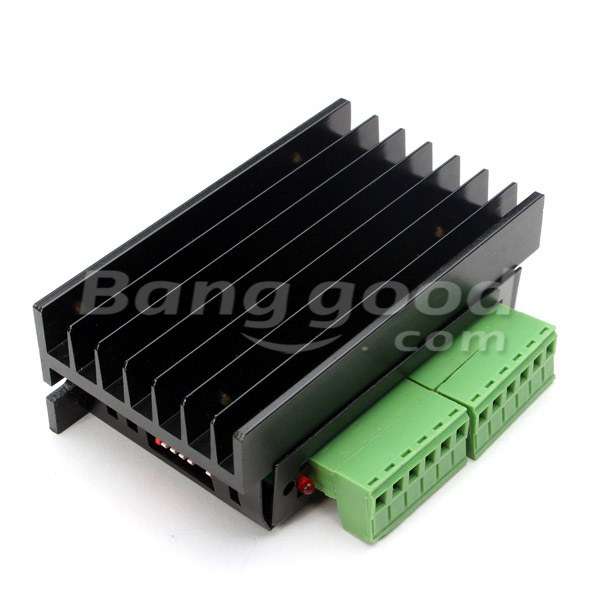

Semi-enclosed chassis can adapt to a more demanding environment
Provide energy saving semiautomatic current lock function
Built-in thermal protection and over-current protection
Specification:

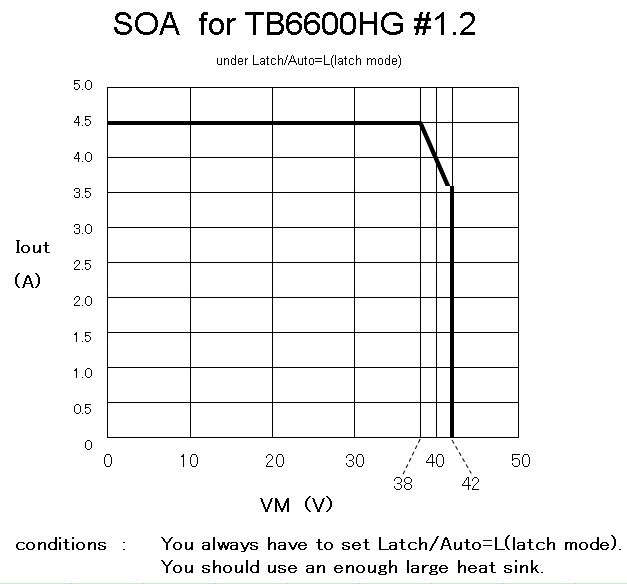

Voltage: up to 50V
ON resistance (upper + lower) = 0.4 Ω
Forward and reverse rotation control

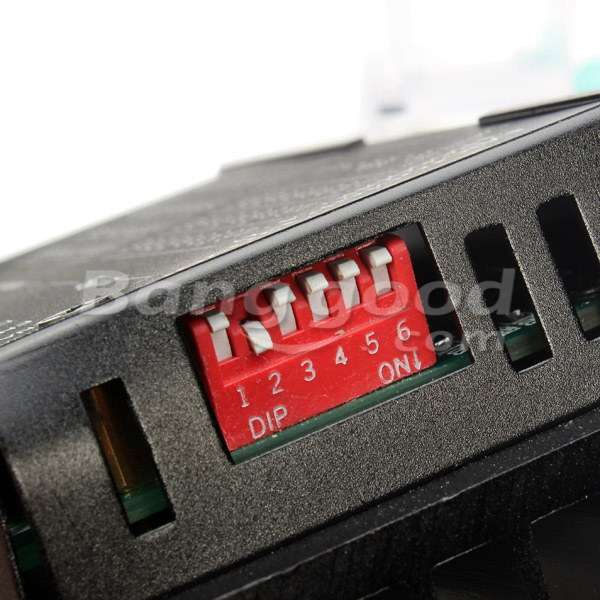

5 kinds of sub-modes selectable (1/1, 1/2, 1/4, 1/8, 1/16 step)
Output current: IOUT = 5.0A (peak within 100ms)
Rated output: IOUT = 4.5 A
Input pull-down resistor: 100 KΩ
Current output alarm pin: Ialert = 1mA
Monitor output pin (MO): Imo = 1mA
With reset and enable pins
With a standby function.
Breaking the traditional single-supply
Built-in thermal protection (TSD) circuit
Built-in voltage protection (UVLO) circuit
Built-in over current detection (ISD), the circuit
Note:
This driver is the upgraded version TB6600, heightening segment to 32 subdivision, suitable for high segmentation applications.

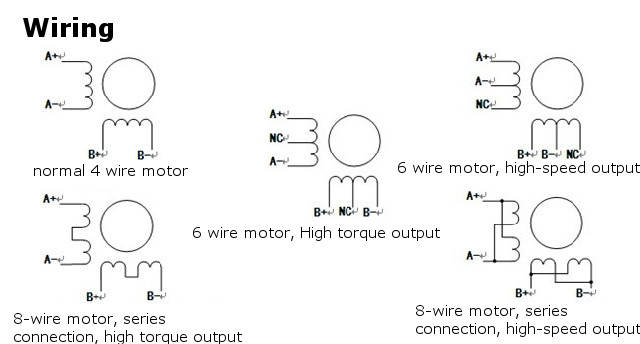

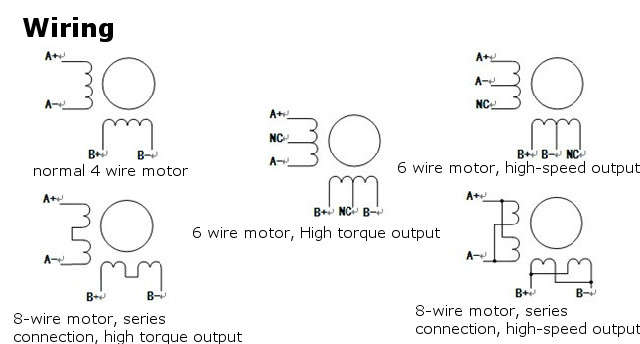

For step motor: 42, 57, 86 type 2 phase 4 phase (4 / 6 / 8 line)
Package included:

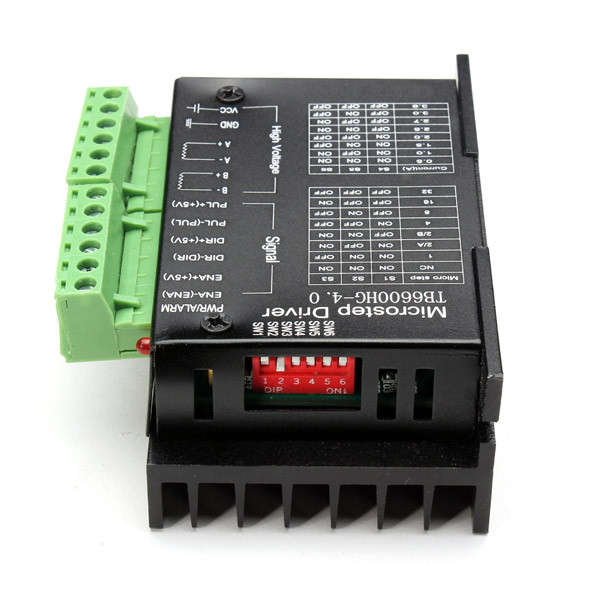

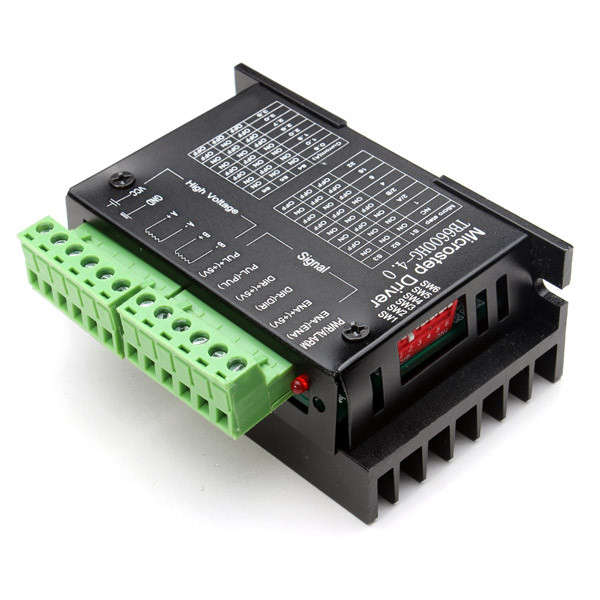

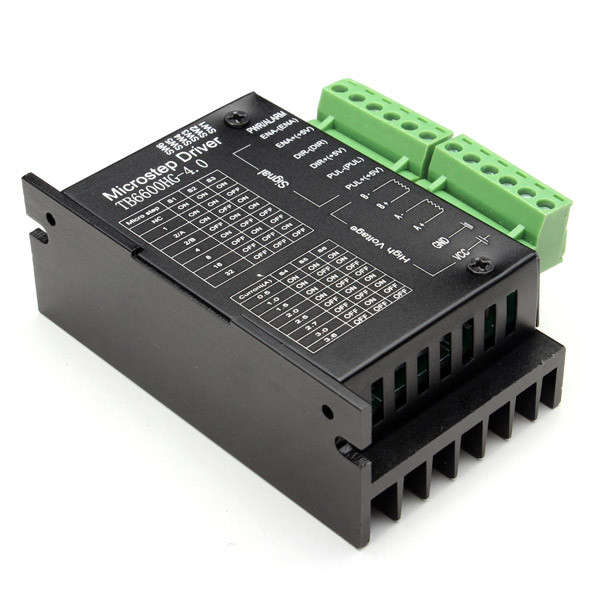

1 x TB6600 Stepper Motor Driver Controller
