TBS Source One V5.1 5inch

TBS Source One V5.1 5inch

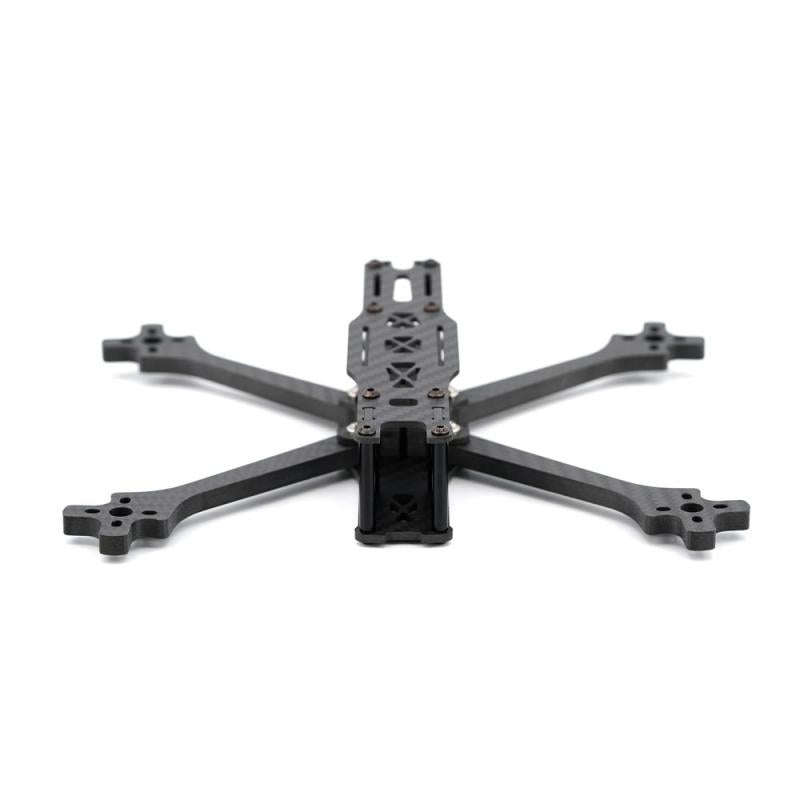

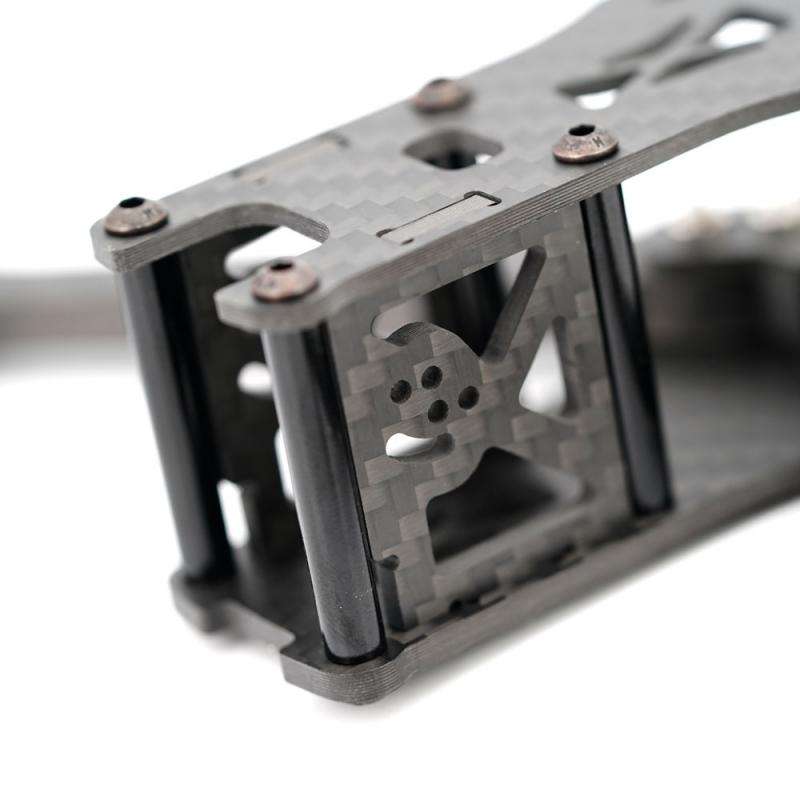

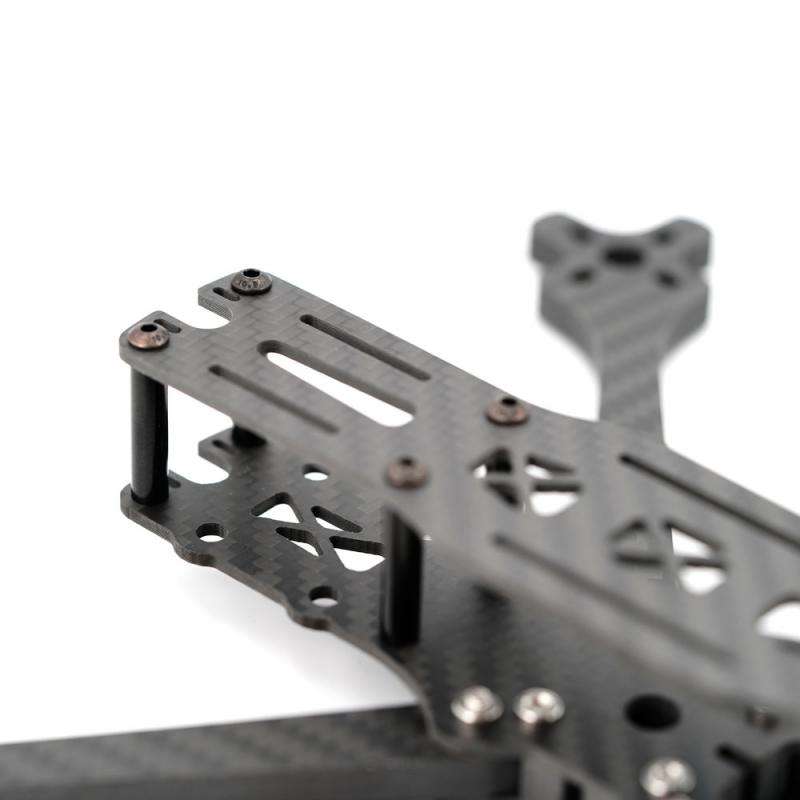

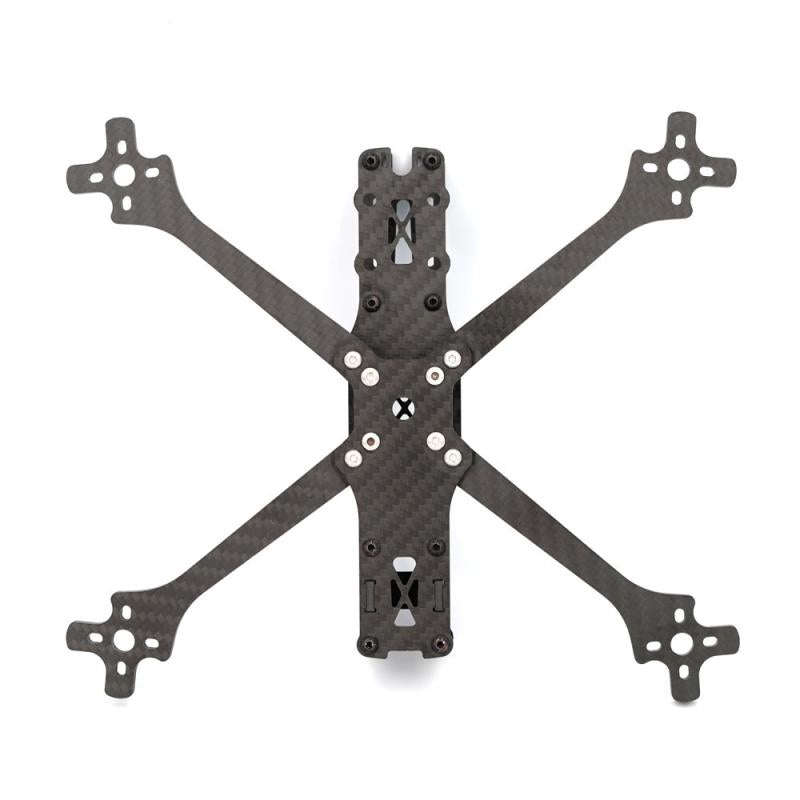

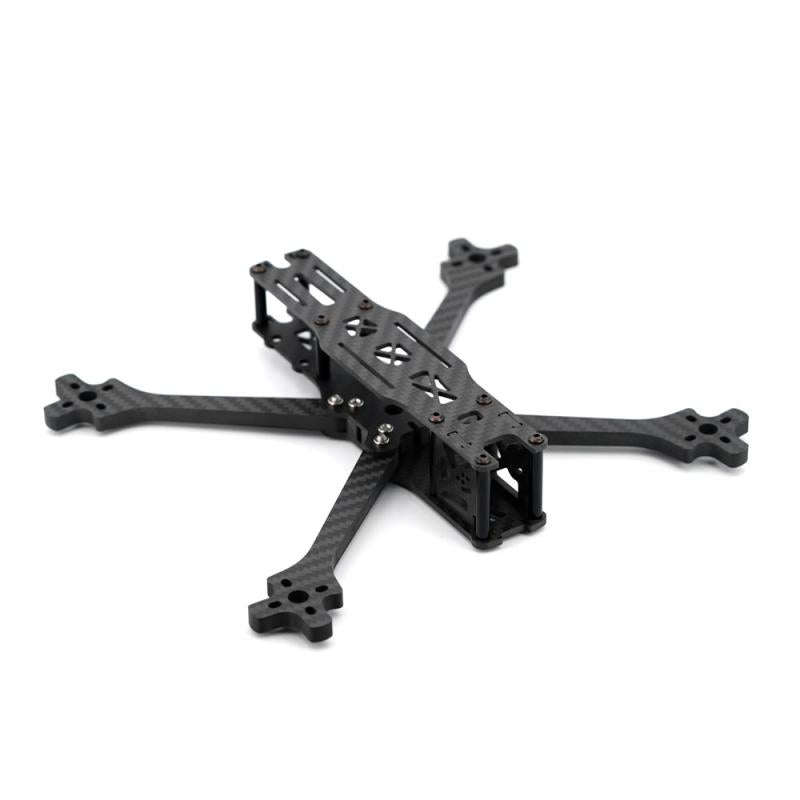

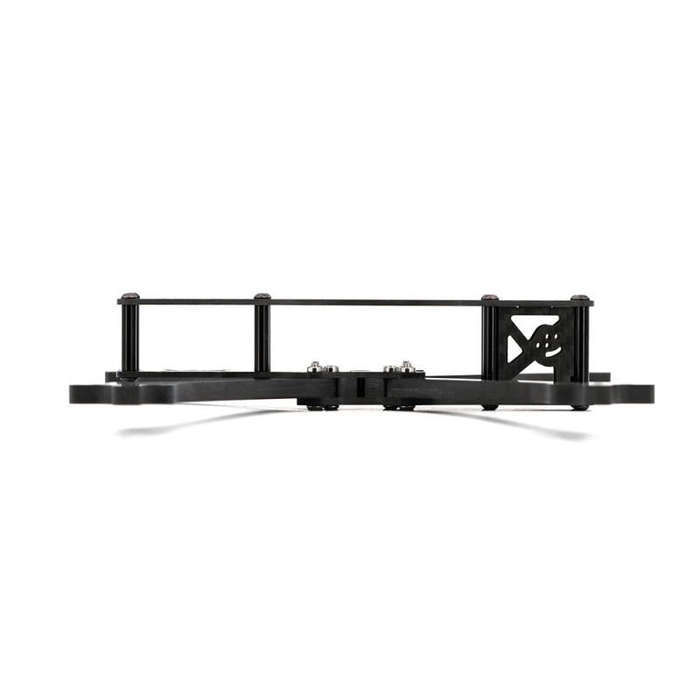

The SOURCE ONE project is a first of its kind collaborative FPV frame project initiated by Team BlackSheep. It's a wide-stance X configuration frame, popular for freestyle or free-range acrobatic flying. It is built to withstand harsh crashes and abuse. It fits and protects all the classic FPV components and is optimized for light weight. The SOURCE ONE is a perfect everyday workhorse for casual FPV flying and competitive freestyle.

About the project

The SOURCE ONE project is a first of its kind collaborative FPV frame project initiated by Team BlackSheep. The frame is donated to the community to empower creators and makers, and integrate best practices and current trends faster into a continuously manufactured product. In return, it allows the local distribution network to have cheap and direct access to a good frame in order to allow them compete in an increasingly predatory marketplace.

The hope is for this frame to enable broad access to FPV thanks to a low price point, great documentation and wide availability of compatible parts and accessories, without violating other people's intellectual property.

Get involved!

• Project files: https://github.com/tbs-trappy/source_one (Coming Soon)
• Interactive Manual (work in progress)
• 3D Printed files on Thingiverse: https://www.thingiverse.com/tag:sourceone

Package contains

• 1x Frame (Top, Middle and Bottom. Brace and 2x Camera plate, 4x Arms, 1x arms
• spacer)
• 1x Screw & Standoff set

Technical specifications

• Wheelbase 5": 226
• Top Plate: 2mm
• Middle Plate: 2mm
• Bottom Plate: 2.5mm
• Arms Spacer: 6mm
• Camera plate:2mm
• Standoff height: 30 and 22mm
• Arm thickness 5": 6mm
• Stack Mounting: 30.5 × 30.5mm & 20 x 20
• Weight 5": 123.5g

Hardware

• 16X M3x10 allen screw
• 4X M3x12 allen screw
• 4X M3x14 allen screw
• 4X OD 5mm M3 30mm standoff
• 4X OD 5mm M3 22mm standoff
• 8x M3 press insert nut

Recommended parts

The part recommendations are put together by engineers and pilots. We strive for reliability and high quality in all of our selections, which may cost a bit extra but it allows you to enjoy the frame much more!

Budget Build

• FC: HGLRC Titan 60A FC AIO
• ESC: 4x Flycolor Raptor 30A BlHeli-SMotors: 4x MasterPilot 2750kV or MasterPilot PRO 2750kV
• Camera: RunCam Racer 5 (1.8mm)
• VTx: TBS Unify Pro RACE or TBS Unify Pro HV SMA 800mW
• Antenna: TBS Linear Whip or TBS Triumph SMA
• Props: HQ V1S Props or Gemfan Hulkie or Gemfan Flash

TBS PowerCube Build

• FC, ESC, VTx, OSD: TBS PowerCube FPVision 2in1
• Motors: 4x MasterPilot 2750kV or MasterPilot PRO 2750kVCamera: RunCam Racer 5 (1.8mm)
• Antenna: TBS Linear Whip or TBS Triumph SMA
• Props: HQ V1S Props or Gemfan Hulkie or Gemfan Flash

Pro Freestyle Build

• FC: BrainFPV Radix & PDB
• ESC: 4x TBS BulletProof DSHOT600 25A ESC
• Motors: 4x ETHIX Mr.Steele SILK V2 2345kV Motor
• Camera: RunCam Racer 5 (1.8mm)
• VTX: TBS Unify Pro HV 800mW
• Antenna: TBS Linear Whip or TBS Triumph SM
• Props: HQ V1S 5x4.5x3
