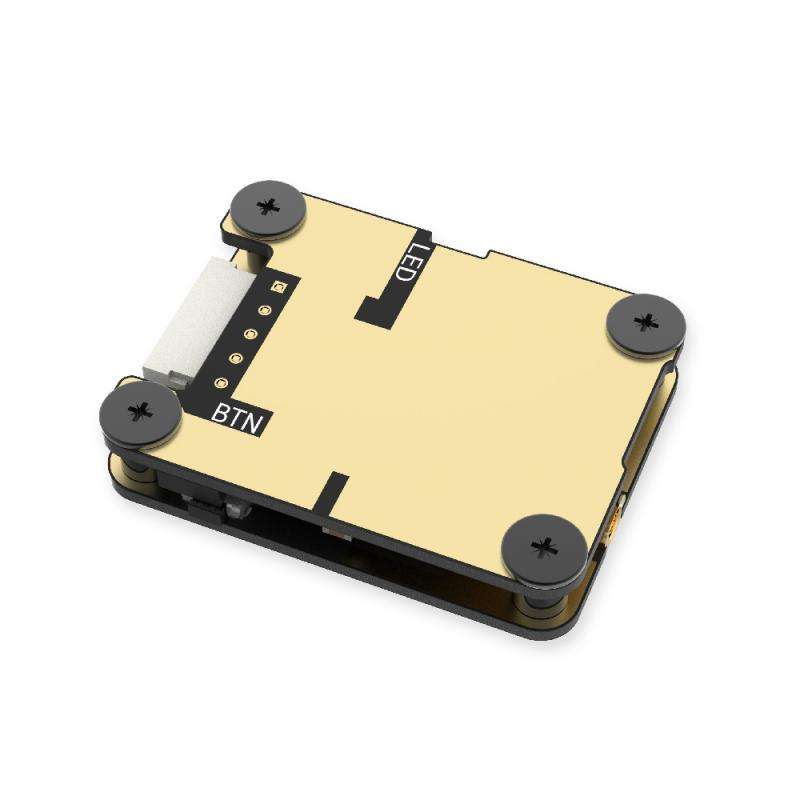

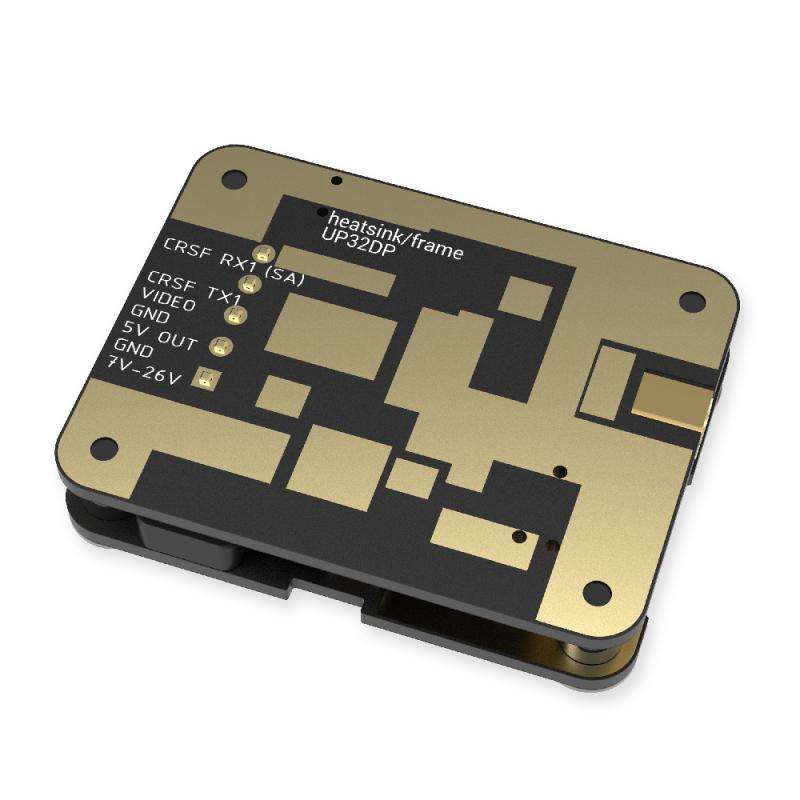

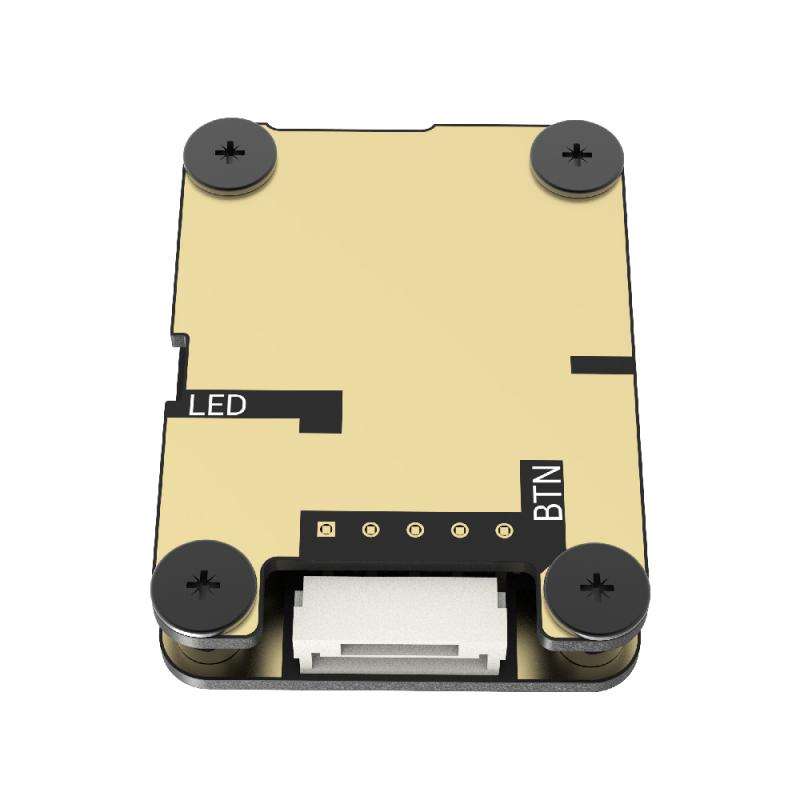

TBS Unify Pro32 DP (MMCX) TBS Unify Pro32 DP (MMCX) TBS Unify Pro32 DP (MMCX) TBS Unify Pro32 DP (MMCX)
TBS Unify Pro32 DP (MMCX) TBS Unify Pro32 DP (MMCX) TBS Unify Pro32 DP (MMCX) TBS Unify Pro32 DP (MMCX)

TBS Unify Pro32 DP (MMCX)

New 10 available
R1,248.75
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
FlyingRobot449
100.00 % Positive ratings
Buyer protection
How you're covered
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
TBS373
Bob Shop ID
678415588
The TBS UNIFY PRO32 DP (MMCX), is a high-quality video transmitter (VTx) designed for use in fpv drones. It comes with several features like improved robustness, decreased size and power consumption. Enhanced performance and durability through advanced heat dissipation which requires no additional heatsink or fan.

Highlights

  • World's lightest 3 Watt video transmitter
  • Frequency range: 4990 MHz - 6030 MHz
  • OSD configuration using TBS Smart Audio 2.1
    (via Betaflight, TBS Crossfire / Tracer or Ardupilot)
  • One button frequency and power setup
  • LUA support for CRSF users
  • MMCX connector
  • 2-6S input
  • Double noise filtering (>63dB SNR)
  • Optimized heat dissipation, no heatsink required
  • Optional matching circular polarized antenna available

Specifications

Operating Voltage6V - 25V (2 - 6S)
Video Input Impedance75 Ohm
SNR>63dBm
Weight8.7g
Dimensions37 x 28 x10mm
Antenna ConnectorMMCX
Video FormatNTSC/PAL
Output Power10dBm (10mW), 14dBm (25mW), 20dBm (100mW), 23dBm (200mW), 26dBm (400mW), 27dBm (500mW), 30dBm (999mW), Max

User Manual

  • Link

Included

  • 1x TBS UNIFY PRO32 DP 5G8 HV Video transmitter
  • 1x Silicone cable (ends pre-tinned)
  • 1x MMCX to SMA pigtail
  • 1x Heat transfer tape for easy FPV drone mounting
