TBS2083 Intelligent 5 x 1 HDMI Switch / Switcher with IR Remote HDMI Splitter Hub Box 1080p for HDTV PS3ub Box 1080p for HDTV PS3
- Brand New In Box (Sealed but sometimes supplied without film wrapping)
- THIS PRODUCT IS IMPORTED ON ORDER - PLEASE SEE "SHIPPING & PAYMENT" FOR DELIVERY TIMES
Selection
Size: HDMI Switch 5 ports
Product details
- Product Dimensions: 7.6 x 5.8 x 1.8 cm ; 54 g
- Boxed-product Weight: 100 g
Find out more about our Delivery Rates and Returns Policy - Item model number: TBS2083
- ASIN: B00M6I8K2E
- Date first available: 14 Oct. 2014
Specifications
- Supports 12-bit Deep Color per channel
- Supports up to 1080P video resolution
- Supports 2.5Gbps/250MHz per channel, maximum bandwidth per display is 7.5Gbps
- Compatible with HDMI 1.4b HDCP 1.0/1.1 standards
Product Description
Ran out of HDMI ports? Wanting to reduce cable clutter? Now you can do all that with the intelligent 5x1 HDMI Auto Switch with Remote Control function. It has 5 HDMI input sources to provide plug-and-forget auto sensing capability that switches input automatically when a signal is detected. It also has a source select button on the switch and a remote control to provide flexibility for you to manually switch between 5 sources.
Note: Plug-and-forget auto sensing function only works correctly for devices that do not output continuous voltage over HDMI port when turned off. Powering on a device gives the switch output priority over the other 4 devices. Output priority is switched back to the last powered on device if the current in use device is turned off.
Features and Specifications
¿¿¿ 5 HDMI input sources, 1 HDMI output
¿¿¿ Supports 12-bit Deep Color per channel
¿¿¿ Supports up to 1080P video resolution
¿¿¿ Supports 2.5Gbps/250MHz per channel, maximum bandwidth per display is 7.5Gbps
¿¿¿ Supports uncompressed audio: LPCM
¿¿¿ Supports compressed audio: DTS Digital, Dolby Digital, DTS-HD, and Dolby True-HD
¿¿¿ Compatible with HDMI 1.4b HDCP 1.0/1.1 standards
¿¿¿ 24K gold plated connector

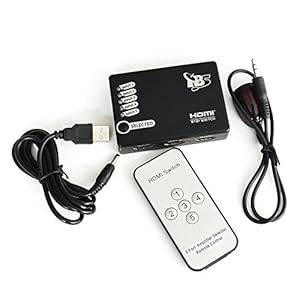

Package Contents:
¿¿¿ 5x1 HDMI Intelligent Switch x 1
¿¿¿ Remote control x 1
¿¿¿ IR receiver x 1
¿¿¿ USB A Male Supply Power Cable
¿¿¿ User manual
Note: There is a USB power cable in the package. This cable is for connecting to the TV USB port for power supply if necessary. The switch can function normally without this cable but in some case, when there is not enough power supply coming from the HDMI cable, you need to plug in the USB power cable with one side in the device DC 5V port and another side on TV USB port to make it work.
