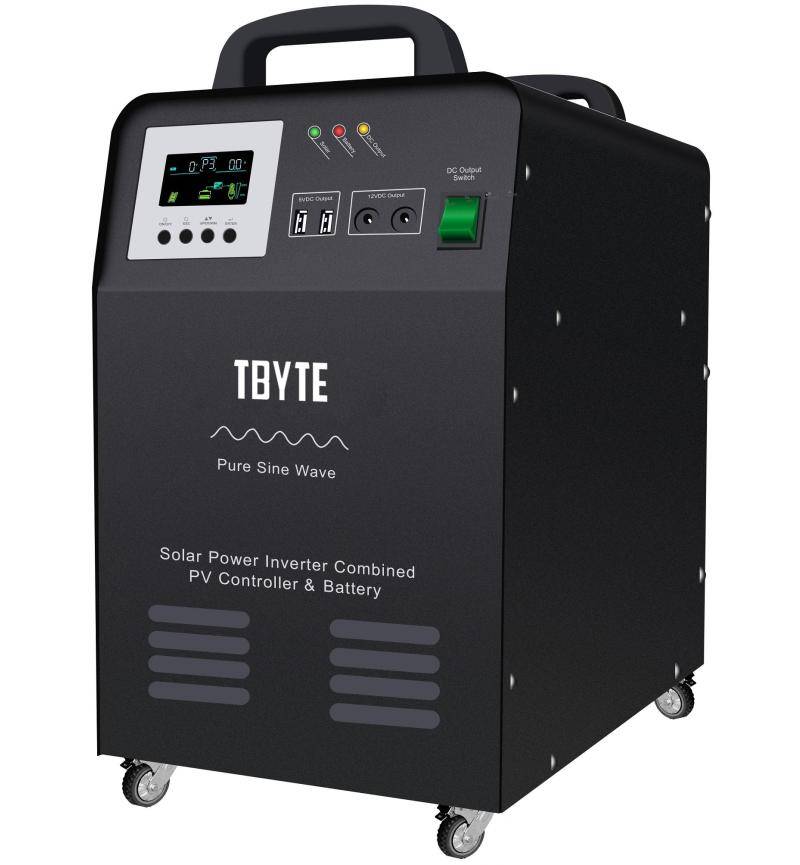

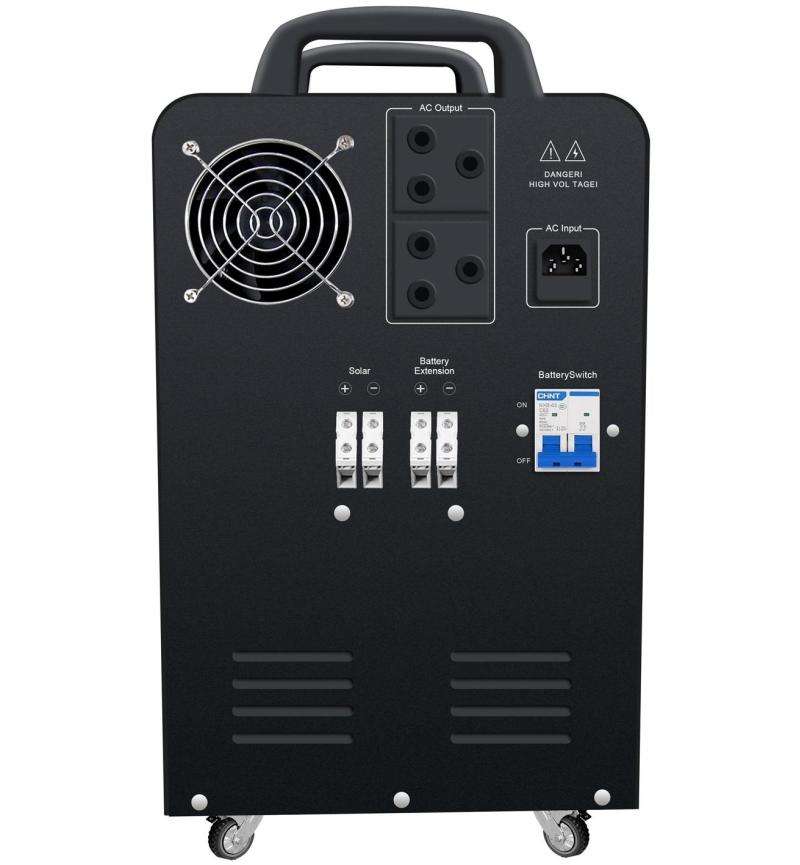

TBYTE 1000W Inverter with 12V 100AH Battery

1000W INVERTER WITH 12V100AH BAT- SP1000W
Integrated photovoltaic power point energy storage system.
Intelligent charge and discharge management system function,

Effectively protect the battery charge and discharge.

Colourful and bright display, visually display the working status of

The machine

Output overload, overvoltage, over temperature, short circuit

intelligent protection:
Output pure sine wave, strong load capacity

Built-in solar charge controller, high charging efficiency

Adjustable switching mode, DC, AC, solar priority mode.

Solar Power Inverter Combined PV controller & Battery
Model: SP0312-55P SP0512-55P SP1012-100P SP1524-100M SP2024-200M
Inverter

Battery Voltage: 12V 24V
In-built battery specification: 55AH 55AH 100AH/12V 100AH/12V*2 200AH/12V*2
Rated power :300W 500W 1000W 1500W 2000W
Output Voltage: 110VAC/220VAC
Output Frequency: 50/60Hz
Output Waveform :Pure Sine Wave
Charge by a means supply

Rated Voltage: 110VAC/220VAC�x means an optional function
Charge Current: 6A 8A 12A 15A 20A
Solar Input

Maximum Photovoltaic Voltage(VDC): =25V =145V
Charge Voltage(VDC: 13.7V 27.4V
Rated Charge Current(A): (PWM)5-10A (MPPT)30A (MPPT)60A
Maximum Power(Wp): 360Wp 800Wp 1600Wp
Voltage of overcharge Voltage(VDC): =25V =145V
Voltage of overcharge recovery:(VDC) 14.0V 28.0V
Voltage of floating charge(VDC): 13.7V 27.4V
DC Output

Voltage of high-voltage protection(VDC): 16V 32V
Voltage of high-voltage recovery(VDC): 15.2V 30.4V
Voltage of low-voltage recovery(VDC): 13V 26V

Voltage of low-voltage protection(VDC): 11V 22V
5VDC USB Output Port5VDC USB: 2units/MAX 2A
12VDC Output Port12VDC: 2 DC Ports (MAX 2A)
Starting Temperature of the exhaust fan:45
Ambient Temperature for operation:0-4
Ambient Temperature for storage:-25-55

Operation/Storage Conditions/: 0-90%(no condensation)
External dimensions: D x W x H(mm) 423 x 260 x 453 x 430x380 x 534 x 555 x 515 x 540
Packing dimensions: D x W x H(mm) 520 x 370 x 520 x 545 x 480 x 620 x 640 x 600 x 695
