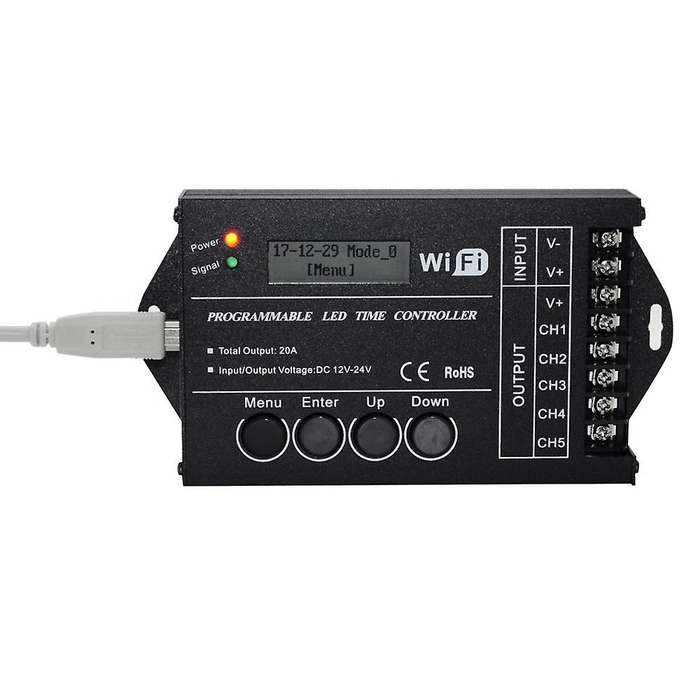

TC421 LED Time WIFI Controller Programmable DC12-24V 5 Channel 20A Common Anode for LED Lights

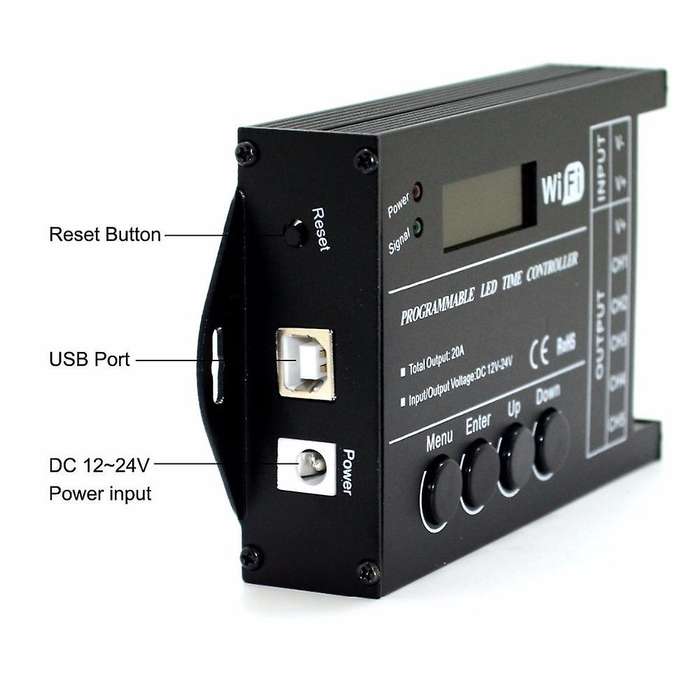

V+: is the positive pole of the load output;It is the positive and negative power input, when the load power is too large, you can choose this 2-port. (Note: You only need to choose one between the power input DC port and 2 ports)Function instructionsThe controller has two modes: energy saving mode and setting mode, among which there are four buttons \menu\, \input\, \+\ and \-\.Working temperature: -20~60 CelsiusPower supply voltage: DC12~24VStatic power consumption: Less than 1WControled : WIFIOutput: 5 channelsMax load current: 20AOutput: Five CMOS drain-open outputConnection : common anodeOutput Interface1. The negative pole of the first channel of load output;2. CH2: the negative pole of the second channel of the load output;3. CH3: The negative pole of the third channel of load output;4. CH4: The negative pole of the fourth channel of load output;5. The negative pole of the fifth channel of load output;Colour:BlackMaterial:plasticSize:150x75.5x26mmPackage Contents:1* time controllerOnly the above package content, other products are not included.Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
