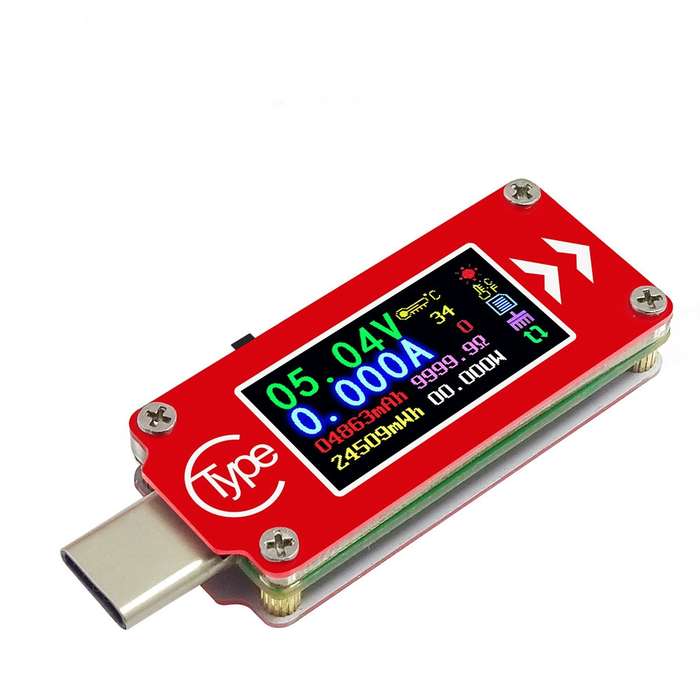

TC64 Color Ccreen PD Fast Charge Detection Type-C Voltage Current Meter Tester

1. Display: 0.96 inch color LCD display
2. Voltage measurement range: 3.70-30.00V, voltage measurement resolution: 0.01V
3. Current measurement range: 0-4.000, current measurement resolution: 0.001A
4. Capacity accumulation range: 0-99999mAh
5. Voltage measurement accuracy: - /+ (0.8% + 4 digits at 25 degrees Celsius)
6. Energy accumulation range: 0-99999mWh 999.99Wh current 7.
7. Measurement accuracy: - /+ (1% + 4 digits, at 25 degrees Celsius)
8. Load impedance range: 1ￎﾩ-9999.9ohm
9. Power measurement range: 0-120W
10. Temperature range: -0 ~ 80 degrees Celsius
11. Temperature measurement error: +/- 3 degrees Celsius
12. Operating temperature range: 0 ~ 45 degrees Celsius
13. Product size: 50mmx19mmx9mm
14. Refresh rate: 2Hz
15. Product weight: 7g (with packaging 14g)
16. Fast charging recognition mode: QC2.0, QC3.0, APPLE 2.4A / 2.1A / 1A / 0.5A, Android DCP, SAMSUNG
17. Note:
- The product current only flows from the male connector to the female connector (unidirectional current), the reverse current is still charged, but the current is displayed as 0. Please note when using.
- If you use our TC64 meter to connect to the phone, you must have a PD charger or a converter cable.
- Type-C port is a full-featured port, supports Type-C fast charging, supports almost all Type-C devices, but does not support Type-C identity resistance (no Type-C trigger)
