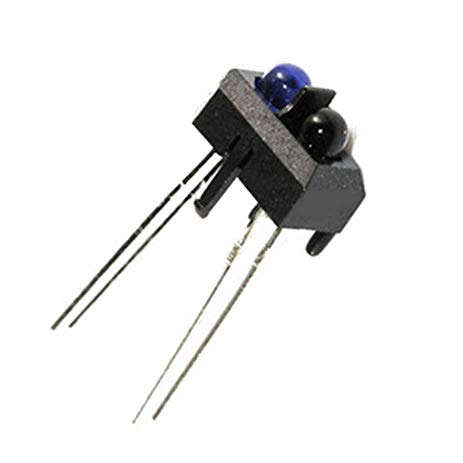

TCRT5000 Reflective Optical Sensor with Transistor Output

The TCRT5000 and TCRT500L are reflective sensors which include an infrared emitter and phototransistor in a leaded package which blocks visible light. The package includes two mounting clips. TCRT5000L is the long lead version.

Features
 •   Package type: Leaded
 •   Detector type: Phototransistor
 •   Dimensions: L 10.2 mm x W 5.8 mm x H 7.0 mm
 •   Peak operating distance: 2.5 mm
 •   Operating range: 0.2 mm to 15 mm
 •   Typical output current under test: Ic = 1 mA
 •   Daylight blocking filter
 •   Emitter wavelength 950 nm
 •   Lead (Pb)-free soldering released
 •   Lead (Pb)-free component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC

Applications
• Position sensor for shaft encoder
• Detection of reflective material such as paper, IBM cards, magnetic tapes etc.
• Limit switch for mechanical motions in VCR
• General purpose - wherever the space is limited.
