TCS CDP PRO V2015.R3 bluetooth with free keygen software on the CD auto diagnostic scan for CARS, TRUCKS AND BUSES
Overview:
Type: auto diagnostic tool
Voltage: 12v-24v
Power: 2w-5w
Certification: CE
Applicable Models: OBD Cars and trucks
Model Number: OVD-BTB
YearsMaterial: Plastic
Weight: 0.7kg
size: 40*17*8cm
Language: Support Multi-language
Operating System: windows XP / Windows 7 / Windows 8 / Windows 10
Advantage: with free keygen activation

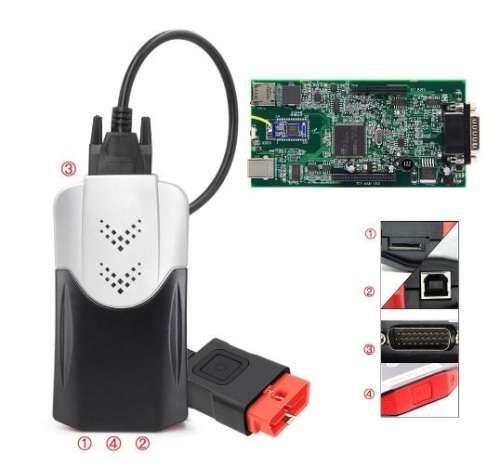

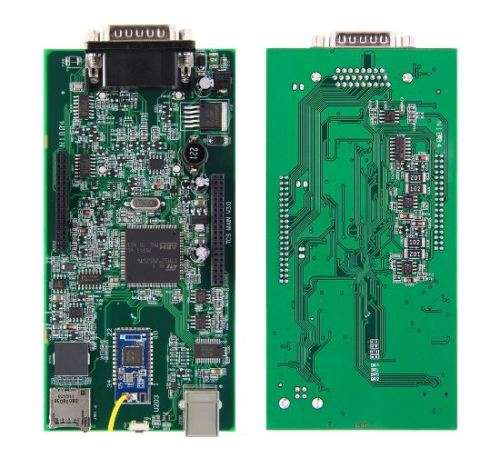

Special Features: Double pc board with 9241A IC
Product Description:
Free Activation TCS CDP V2015.R3 bluetooth with keygen software on the CD auto diagnostic scan for Iveco trucks and Cars
TCS CDP Pro OBD2 Scanner is a newly released diagnostic tool for cars and trucks, with bluetooth .TCS CDP Pro is a quick and reliable diagnostic tool serving as a link between vehicle and computer. It works on both old and new vehicles.
Multiplexer function 2xHS CAN (ISO 11898-2), SW CAN (SAE J2411), K / L (ISO 9141-2), VPW (J1850), PWM (J1850), RS485 (J1708), TTL and (SPI, analog in, 5volt out)
Top 6 reasons to get TCS CDP PRO:
1. Supported Language: English, Spanish, French, Italian, Portuguese, Czech, Dansk, German, Turkish, Greek, Dutch, Hungarian, Norwegian, Polish, Romanian, Russian, Serbian, Swedish
2. Can work on windows XP / Windows 7 / Windows 8 / Windows 10
3.Can work for CAR + TRUCK + Generic 3 in 1
4. The quality of our products is the highest, we use the green dual board with 9241 chips.
5. With Bluetooth Function
Software version:
2014.R2 / V2015.3 with free keygen, V2015.03 is the default version on CD
TCS CDP Pro Specifications:
Power: 5W
Voltage: 12V
Item Length: 10 inch
Item Width: 8 inch
Item Height: 5 inch
External Testing Certification: CE
Item Type: Car Diagnostic Cables and Connectors
Item Weight: 0.6 kg
FLIGHT RECORDER
With the flight recorder function, you can record parameters in real time while you are driving a vehicle. During recording, you can, with a press of a button, highlight the specific error so that you can investigate the detected error at a later time. CDP PRO is equipped with built-in memory thus removing the need to bring a computer. Memory cart not include in package.
MULTI COLOUR INDICATOR
With the multi colour indicator on CDP PRO, you have full control of the diagnostic process. Different colors and sound communicates the status and the placement of the indicator allows you to see it from a far. For example, if the indicator alternates between blue and green the CDP + is in communication with the vehicle control unit.
CONNECTOR WITH LED
To locate the diagnostic connector in the vehicle with ease, even if it's located in a dark and inaccessible place, there is a LED on the 16-pin connector to help you along. The location and the design allows the light to function even when using the adaptor cable for vehicles without a 16-pin diagnostic socket.
VOLTAGE CHECK
When CDP PRO is connected to the vehicle, the unit will check the battery voltage of the vehicle and automatically adjusts itself to the vehicle's voltage level of 12 or 24 volts. If the voltage gets too high or too low, CDP pro will warn you with both sound and light and you will also be alerted through the battery icon in our diagnostic software.
CHASSIS NUMBER VIN
In our CARS software, we have a smart function that allows you to read out the chassis number from the vehicle that you would like to diagnose. This ensures that the right model and year is selected automatically. In addition, engine code for vehicles, which are commonly available on the markets, is also selected automatically.
ISS
Intelligent System Scan (ISS) scans through all the systems in the vehicle and displays the fault codes that are stored in each system. This saves time and you get a quick overview of the actual status of the entire vehicle. When the ISS is complete, you can then select a specific control system to analyse the results further on.
ISI
Intelligent System Identification (ISI) identifies and selects automatically the type of controller that is mounted in the vehicle. This ensures that the diagnostic session is performed correctly with the correct parameters as required.
REPORT FUNCTION
Under this function tab, you will be able to see the adaptations and adjustments that are possible for a specific vehicle without having the vehicle near you Together with the help texts as a guide, you can plan and be effective in your work ;. Even under complex situations.
OBD-FUNCTIONS
CDP PRO is equipped with an unique multiplexer technology, which allows it to be used on all types of vehicles, regardless of voltage levels and communication standards. For those vehicles that do not use the standard 16-pin connector, we offer a complete set of certified and customized adapter cables and kits.
UNIVERSAL
For most OBD functions, such as adjustments and programmings, there are detailed instructions and help texts to assist you in your diagnosis work You will find step by step information about prerequisites, preparation and implementation of various functions; making even the most complex function simple to perform
HELP FUNCTION
For most OBD functions, such as adjustments and programmings, there are detailed instructions and help texts to assist you in your diagnosis work You will find step by step information about prerequisites, preparation and implementation of various functions; making even the most complex function simple to perform.
Package list:

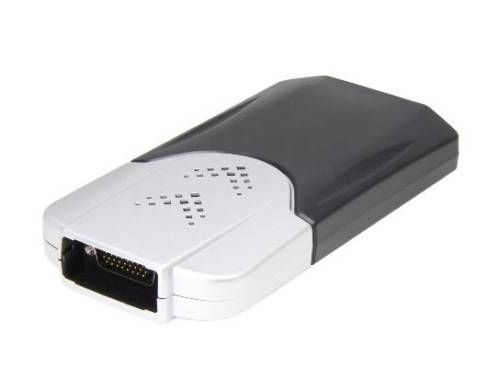

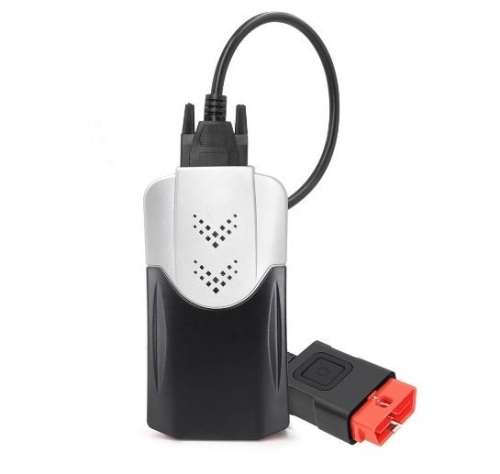

1pc x TCS CDP PRO Main Unit With Bluetooth

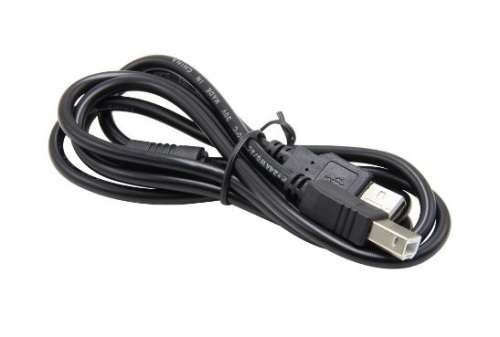

1pc x USB Cable

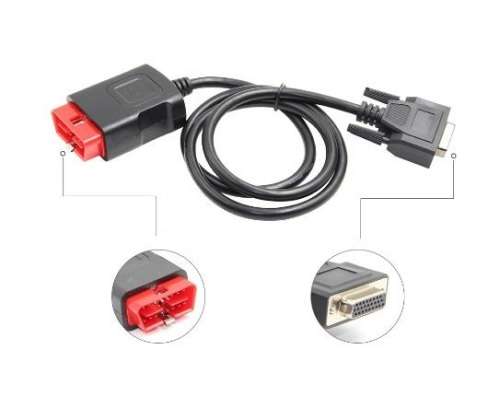

1pc x OBD2 Cable
1pc x Software CD
