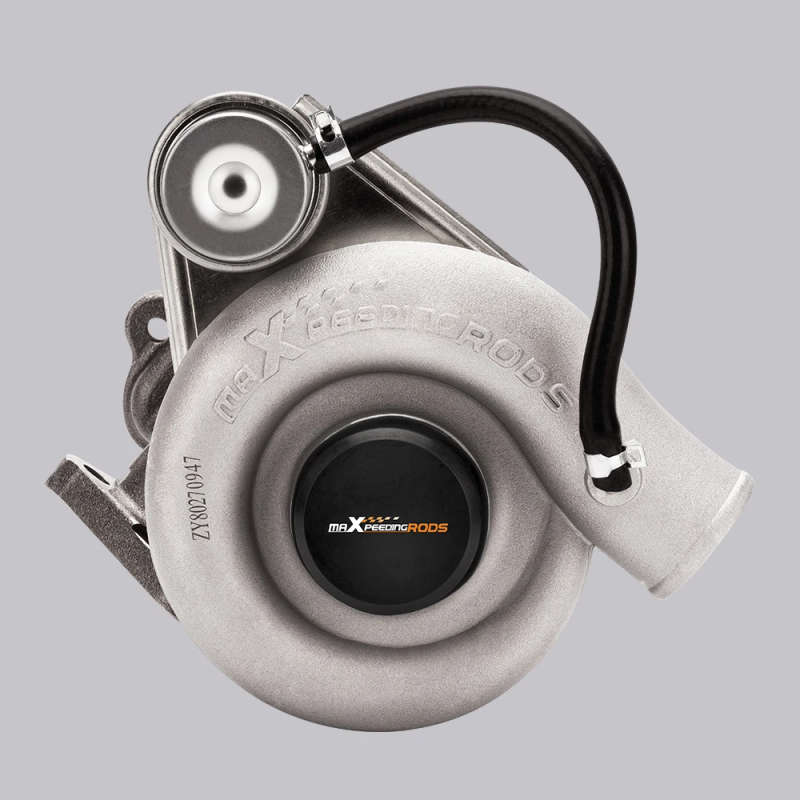

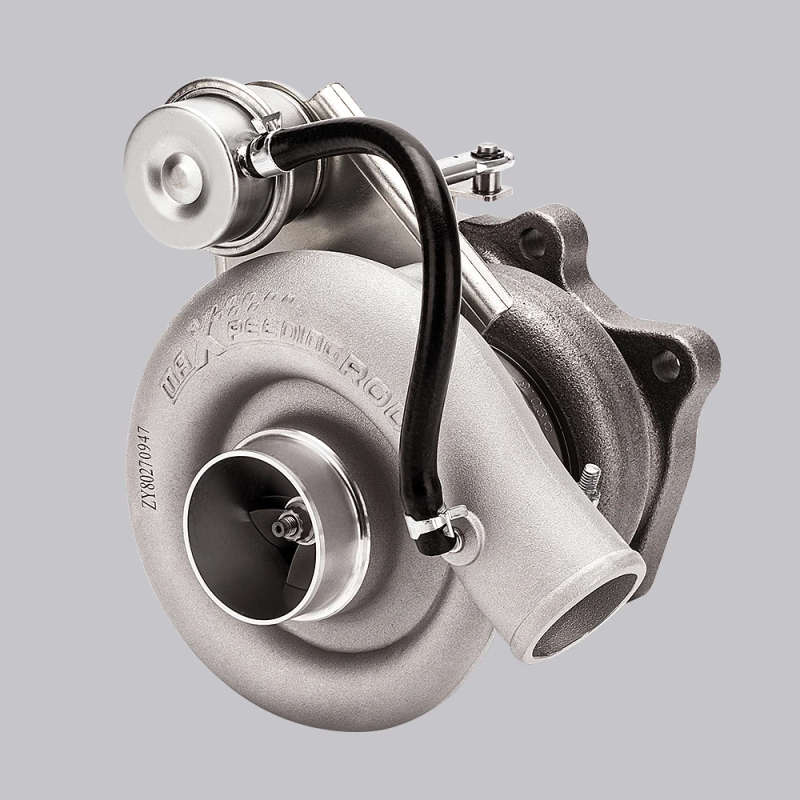

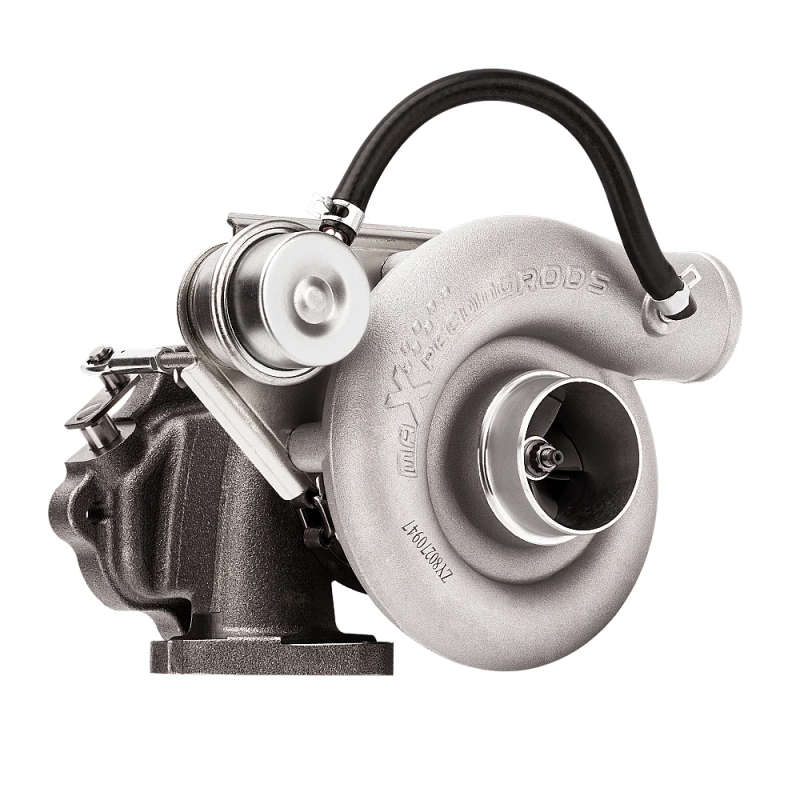

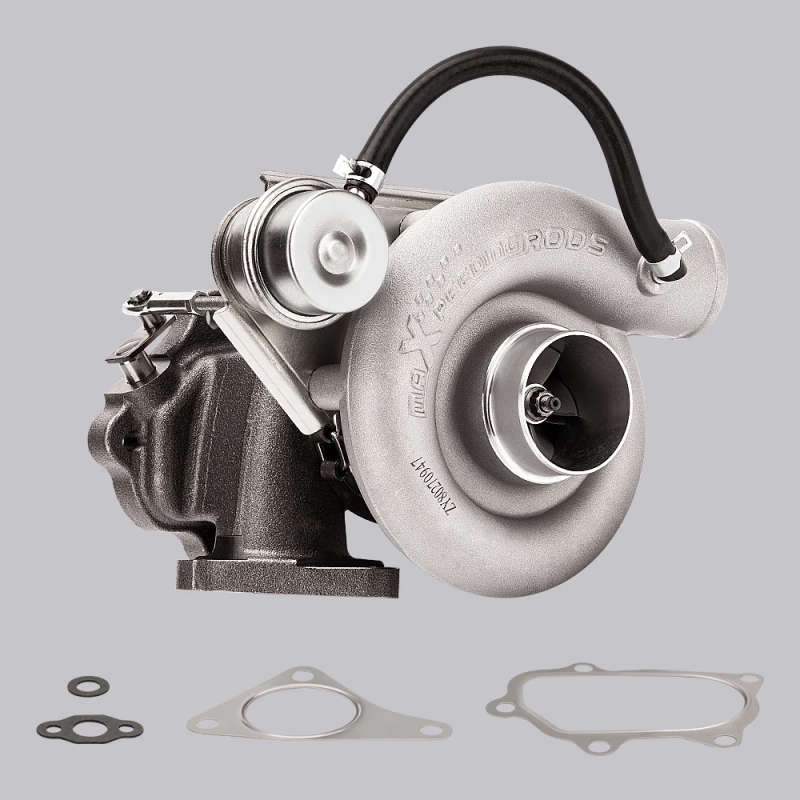

Maxspeedingrods TD05 20G Turbo for Subaru Impreza WRX STI EJ20 EJ25 Max Rated - 420HP (313kw), Water and Oil Cooled (10006775)

Upgrade your Subaru Impreza WRX/STI with the TD05 20G Turbo for a boost in performance up to 420HP. This turbo is designed for EJ20/EJ25 engines, delivering maximum power and efficiency.

document.createElement('video');
https://electromannsa.co.za/wp-content/uploads/2024/03/hduOIaGvx1q37K1WfCb_1100197571486_mp4_264_ld.mp4

Application:

for Subaru IMPREZA WRX / STI EJ20 EJ25 engine 2002 - 2006
for Subaru Impreza WRX Limited Sedan 4-Door
for Subaru Impreza WRX Limited Wagon 4-Door
for Subaru Impreza WRX Sedan 4-Door
for Subaru Impreza WRX STI Limited Sedan 4-Door
for Subaru Impreza WRX STI Sedan 4-Door
for Subaru Impreza WRX TR Sedan 4-Door
for Subaru Impreza WRX Wagon 4-Door

*Notice: All for WRX Wagon engines and automatic sedan engines came with a TD04, all for manual WRX sedans including STI versions had a TD05 model. If your original turbo is TD04 model, some modification(connections, bolts, fixed screws etc.) is required.

Specification

Exhaust Outlet Flange: 5-Bolt Flange
Exhaust Inlet Flange: 3-Bolts Flange
Turbine Side:
Turbine Trim: 76.4
Turbine Housing: 7cm2;
Turbine Inducer Diameter:56mm
Turbine Exducer Diameter: 48.96mm
Compressor Side:
Compressor Trim: 59.8
Compressor Inducer Diameter: 52.6mm
Compressor Exducer Diameter:67.9mm
Compressor Housing Inlet OD: 57.8mm

Oil Feed: M10*1.5
Oil Drain: 2*M6*1.0
Water In/Out: M14*1.5
Turbine housing: 7cm2;

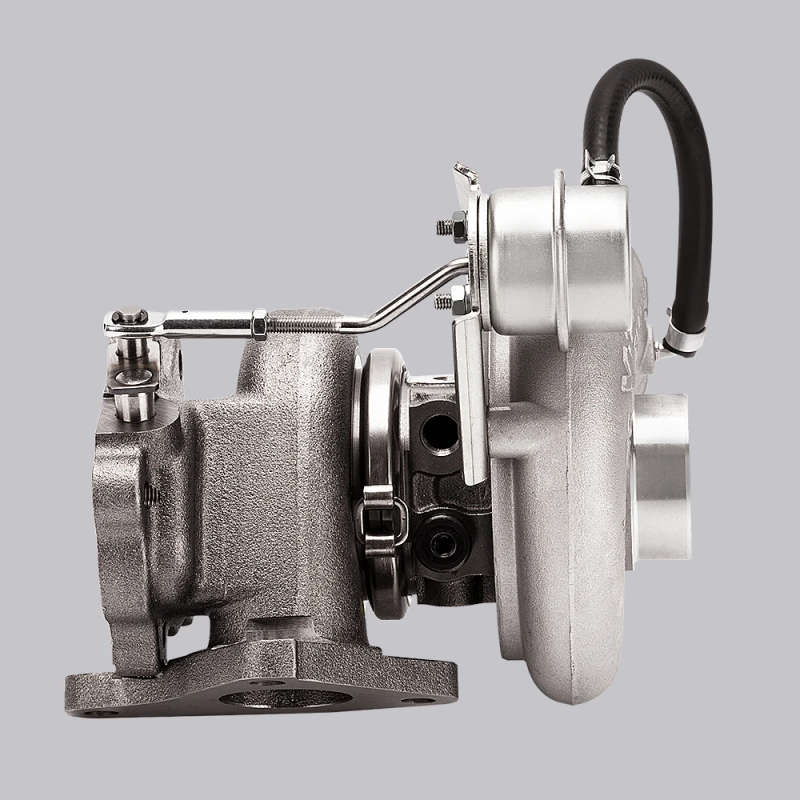

Wastegate: With internal Wastegate

Compressor housing inlet OD: 57.8mm,ID:53.62mm
Compressor housing outlet OD: 51.2mm,ID:41.2mm

Bearing: Wet Float/Journal Bearing
Cooling Type: Water + Oil cooled
Thrust Bearing:270 degree
Hosepower: Up to 420 HP
Turbo Type: Individual
Condition: 100% Brand New
Package Size:30x 28x 24 cm
Package Weight: 7650g

Feature

* Product Material

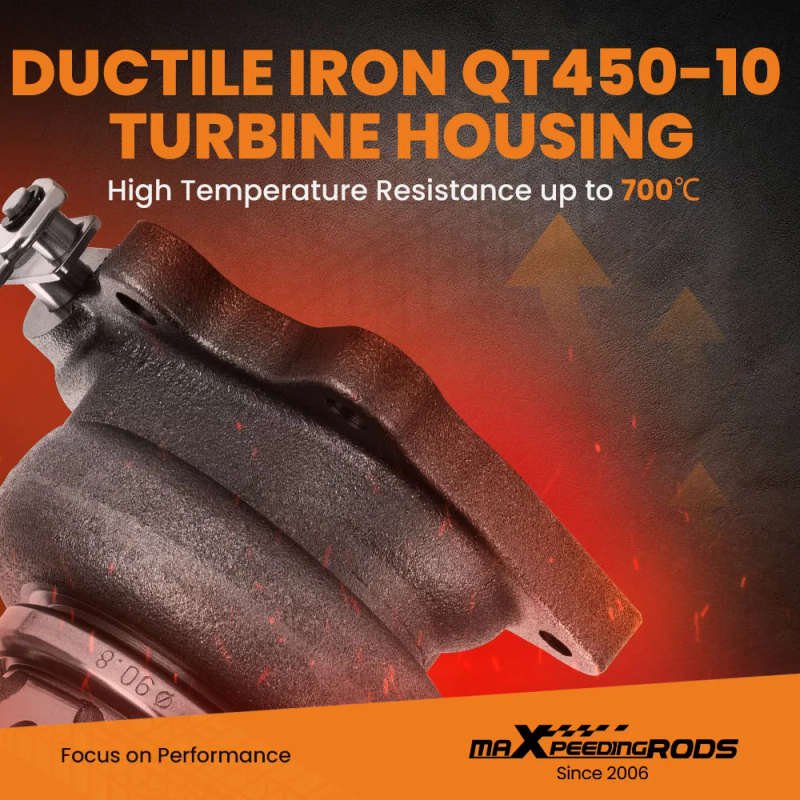

1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700

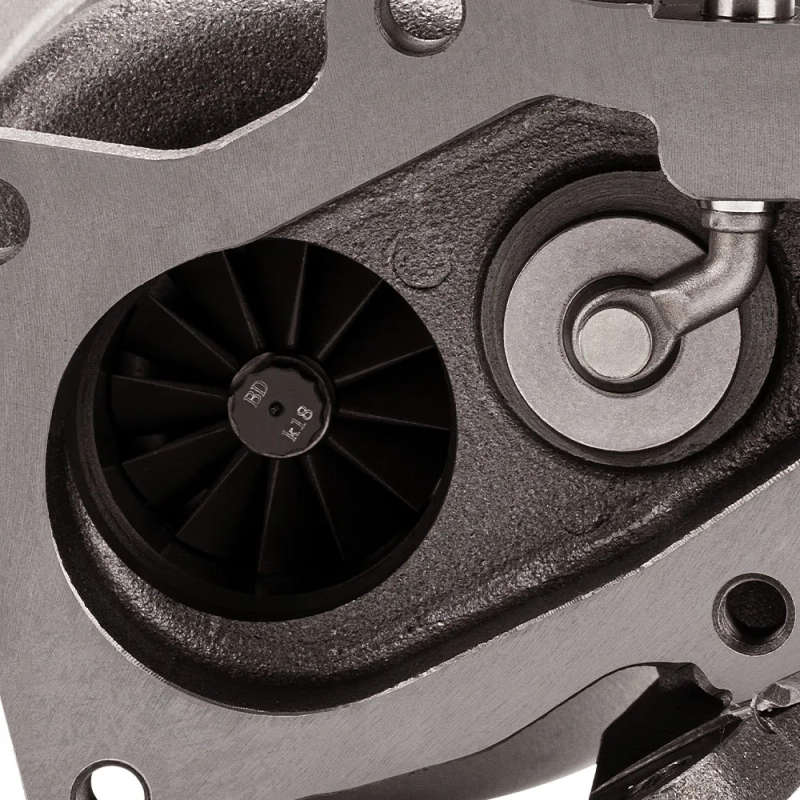

2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900

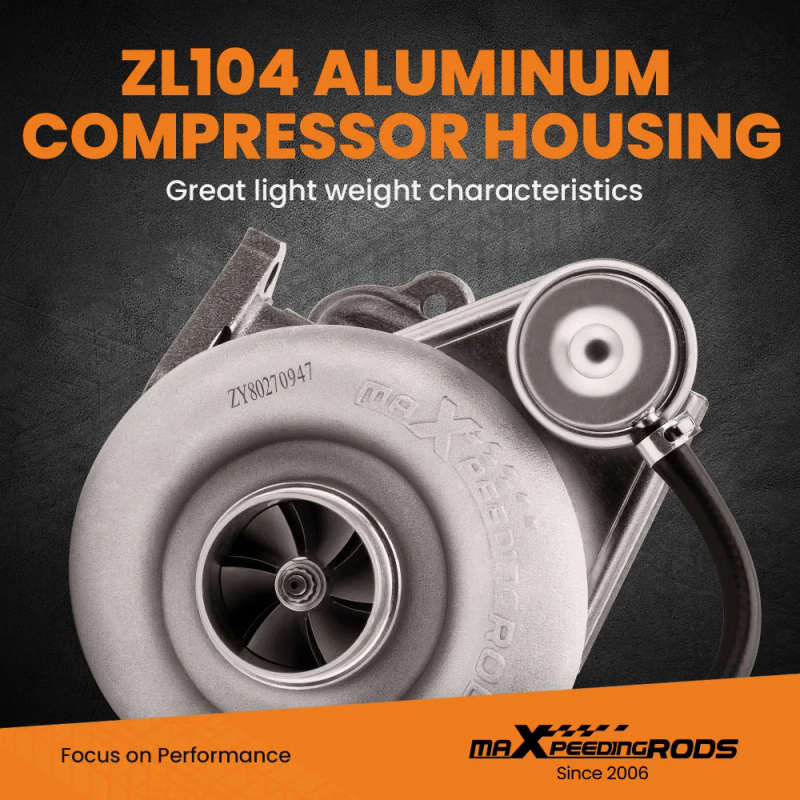

3. Compressor housing: ZL104 aluminum with lightweight

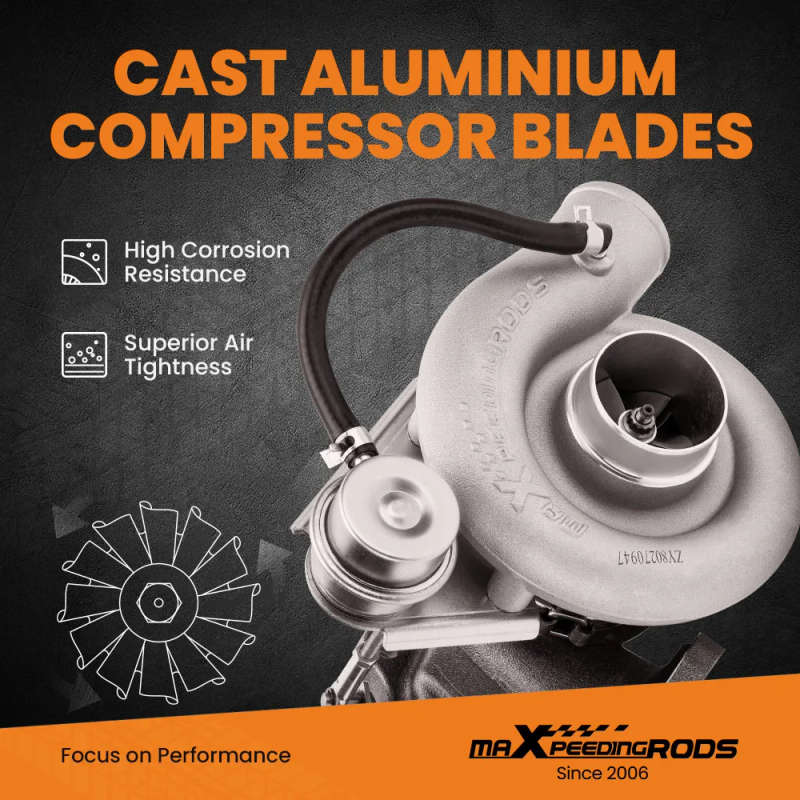

4. Compressor wheel/blades: Cast aluminum blades superior air tightness & corrosion resistance

* Product Performance
1. OEM-quality and size with little modification

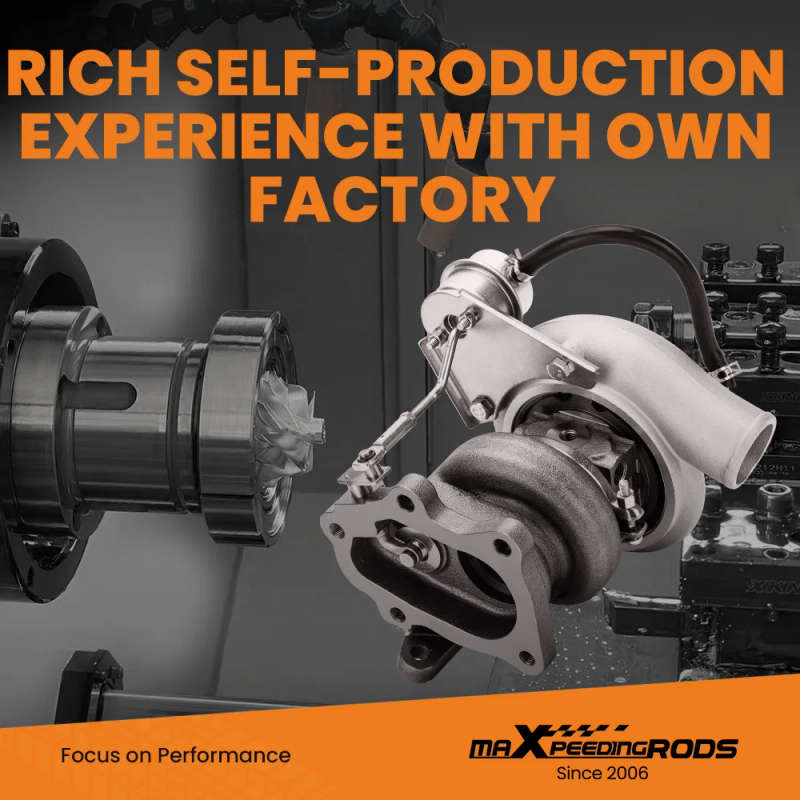

2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:

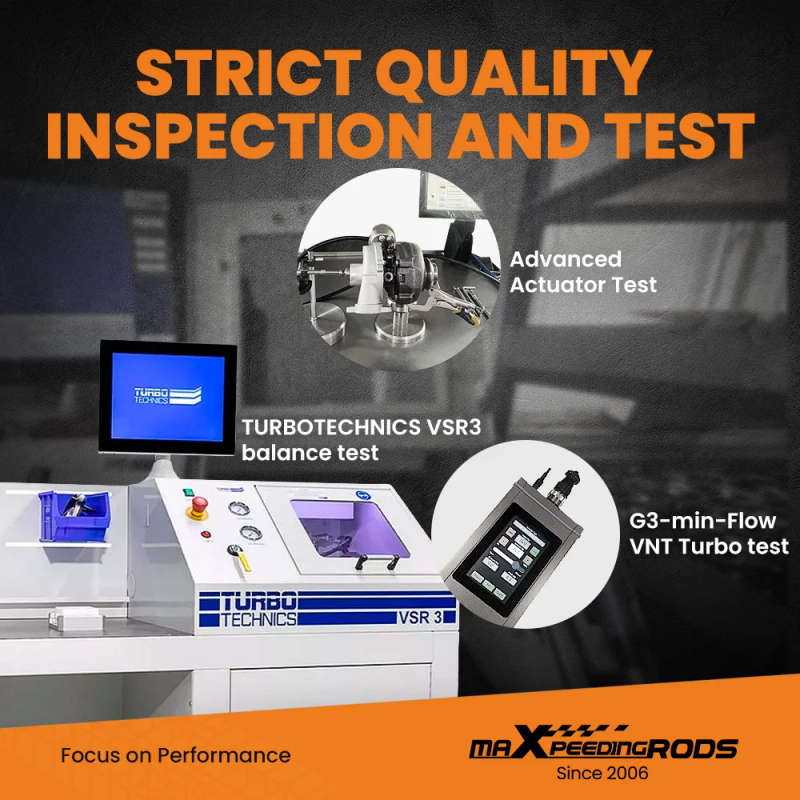

1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer
