TDA7377 Digital Power Amplifier Board Module 30W*2 Dual Channel Stereo 12V DIY Audio Power Amplifier

20 available / new

R532.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3465

93.39 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641134620

Description:

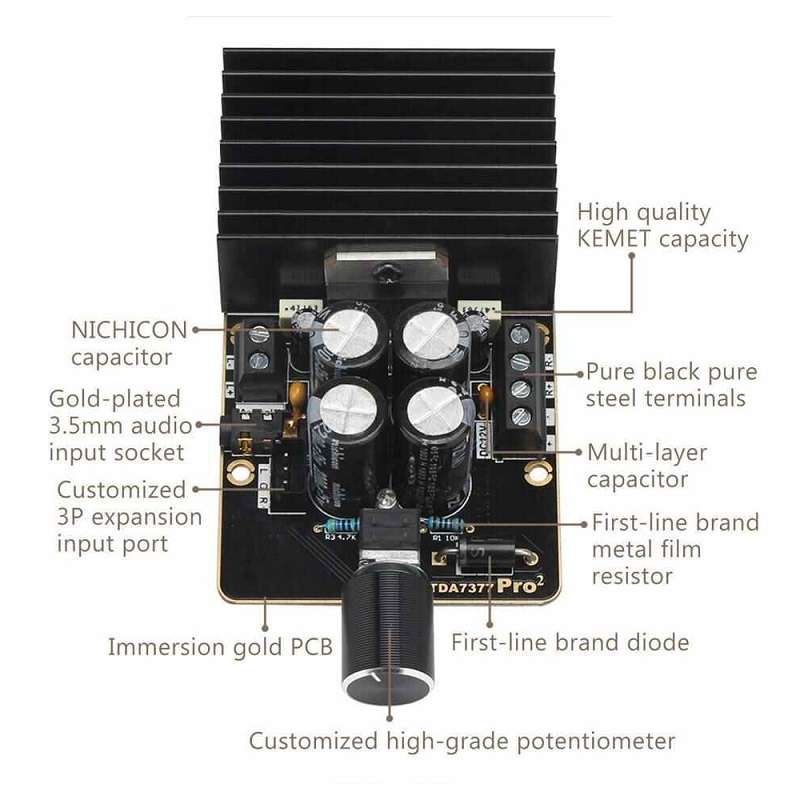

-Input voltage range is DC 9-18v; output power is 30W+30W; can be connected to 4-8 ohm speakers. -High Performance: Adopts high-grade pure black immersion gold circuit board, KEMET speaker capacitor, double NICHICON large-capacity filter capacitor per channel, high-quality monolithic filter capacitor and metal film resistor. These provide a high performance for this audio amplifier board. -Specially-customized Terminals: The automotive amplifier module adopts specially-customized pure black copper terminals, gold-plated audio access terminals and 3P pure black terminals. -Adjusting Knob: This dual-channel amplify module is comes with a adjustable knob, the volume can be adjusted conveniently. -Safe Protection: The stereo amp board is designed with input reverse connection protection, short-circuit protection, over-current protection, over-heat protection, which can protect your device perfectly and extend its service life. -Process materials:high-grade pure black immersion gold circuit board, imported KEMET audio capacitors, double imported NICHICON large-capacity filter capacitors per channel, domestic first-line brand monolithic filter capacitors and metal film resistors. Special order pure black pure copper terminal, gold-plated audio input terminal, order 3P pure black terminal.
Specification:

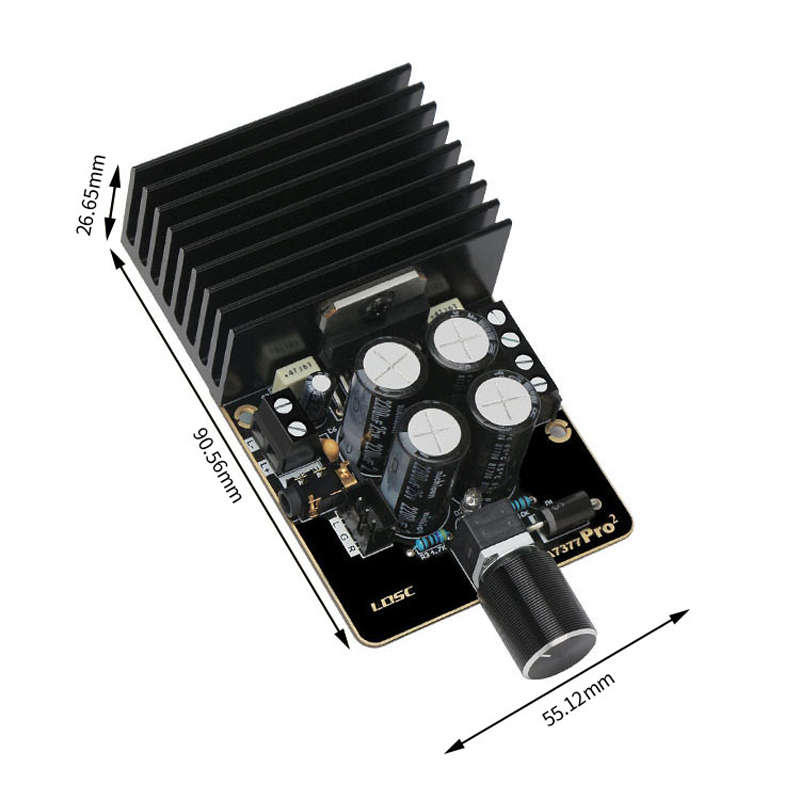

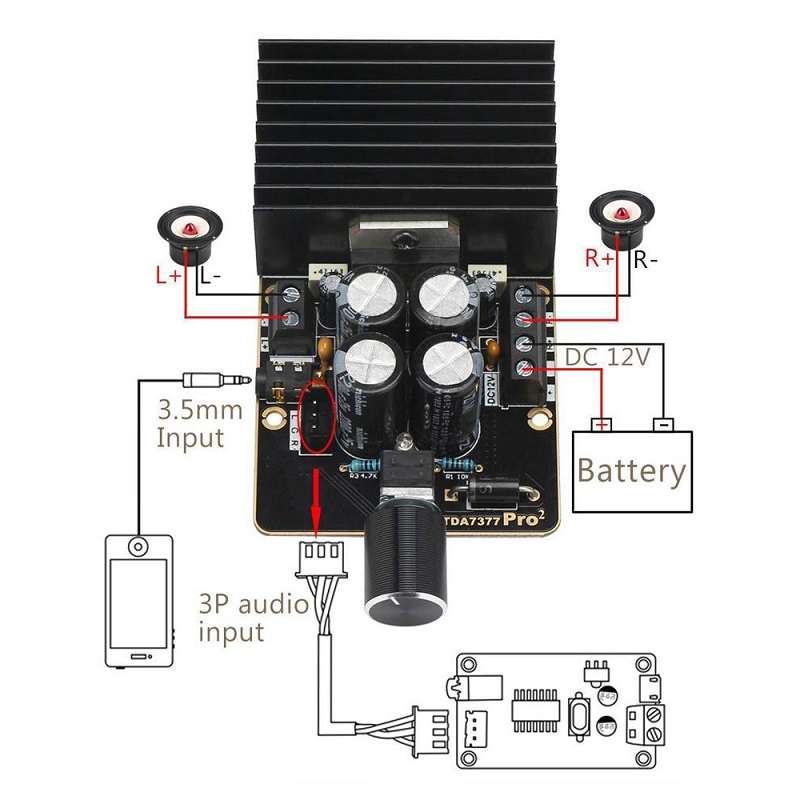

Power supply voltage: DC9-18V, 12V is recommended Output power: 4-8 ohm speakers can be connected, up to 2x35W stereo (18V 4 ohm) Input mode: 3.5mm audio input / 3P expansion input port Net weight: 112g Size: PCB size: 58.67*55.12mm Potentiometer handle opening: 7mm Overall (including heat sink): (length * width * height) 90.56*55.12mm*26.65mm
Package included:
1 x Amplifier Board
