TDA7498 Class D amplifier board 100W TDA7498 Class D amplifier board 100W
TDA7498 Class D amplifier board 100W TDA7498 Class D amplifier board 100W
Sold

TDA7498 Class D amplifier board 100W

New 6 were available
R419.51
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
MOD-137
Bob Shop ID
572243293

Wanna build your own amplifier for your home entertainment system etc.?

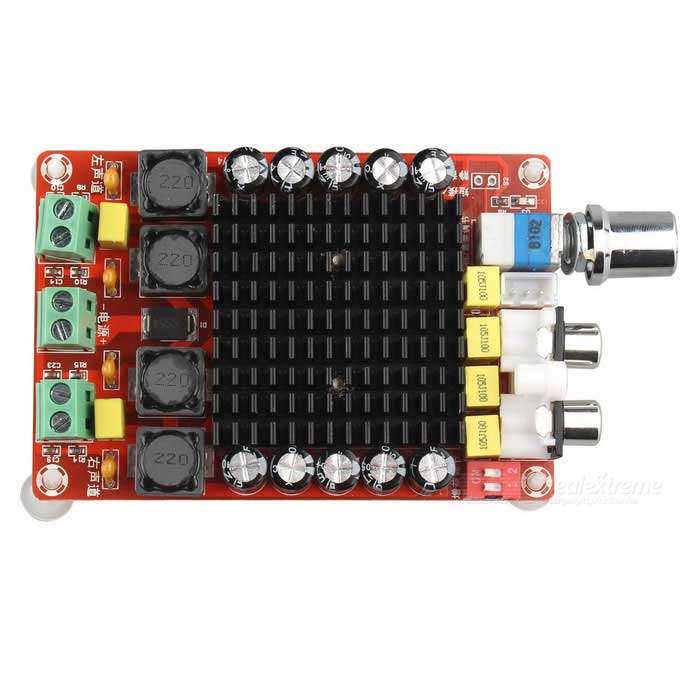

TDA7498 Class D amplifier board 100W

Output power: 100W + 100W (VCC = 32V, RL = 4 ohm, THD = 10%)
Wide (14-30V) single power supply
High efficiency (85%)
Quad gain selectable (21.6dB, 27.6dB, 31.1dB, 33.1dB)
Using differential input to reduce common-mode noise significantly
With turn-off mode and silent mode
With intelligent protection
With overheating protection

TDA7498 Class D amp diagram

TDA7498 Class D amplifier board 100W Specification:

Product name: Audio amplifier board
Input voltage: DC15-32V
Output power: 100W * 2
Output impedance: 4-8ohm
Line type: Class D
Chip selection: TDA7498
Harmonic distortion: Po = 1W / 0.05%
Frequency response range: 18-100KHz
Switching frequency: 360KHz
Signal to noise ratio: 100db
Size: 96 * 64 * 25mm
