TDA7498 Stereo 2X100W Dual Channel High Power Digital Computer Power Amplifier with Acrylic Shell

20 available / new

R542.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3466

93.47 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641134624

Description:

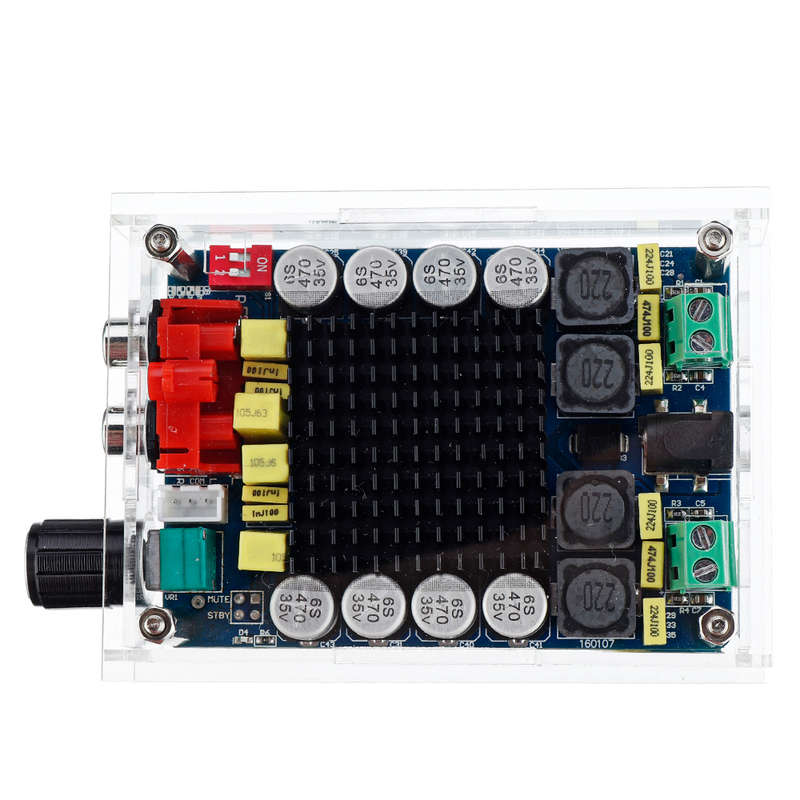

The TDA7498 is a 100W+100W dual-BTL class-D audio amplifier with single power supply designed for home theater and active speaker applications. It adopts 36-pin PowerSSO packaging with exposed pad up (EPU), more convenient to mount a separate heatsink. The TDA7498 has three kinds of modes: standby, mute and normal working mode(you can set the mode by shorting the pins shown on pictures). Standby mode: all circuits closed, at a low power state; Mute mode: all input signals connects ground, the duty cycle of forward/backward PWM output signal is 50%; Normal working mode: the amplifier works normally. Features:

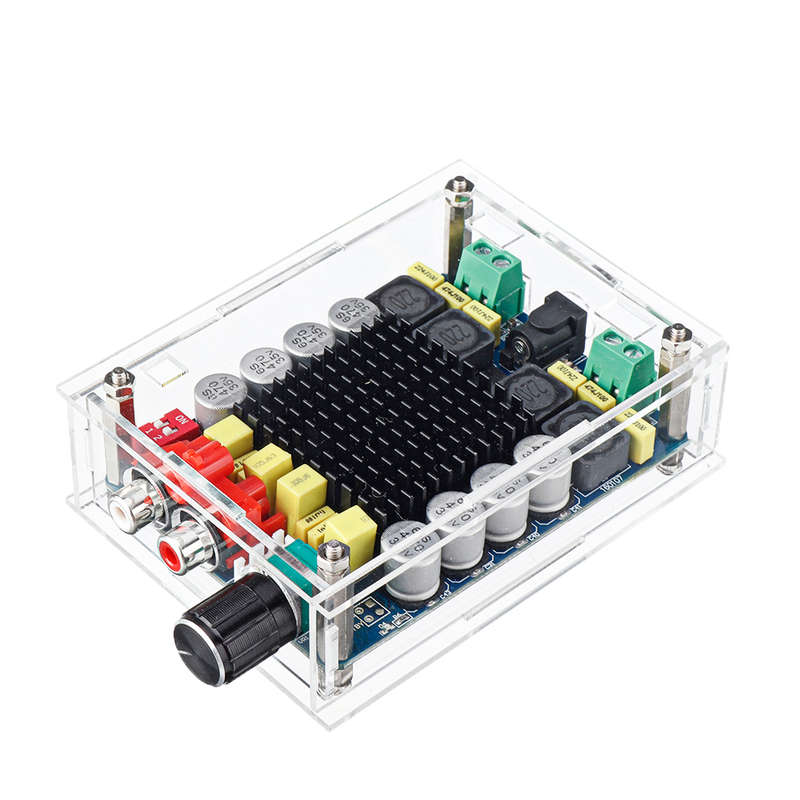

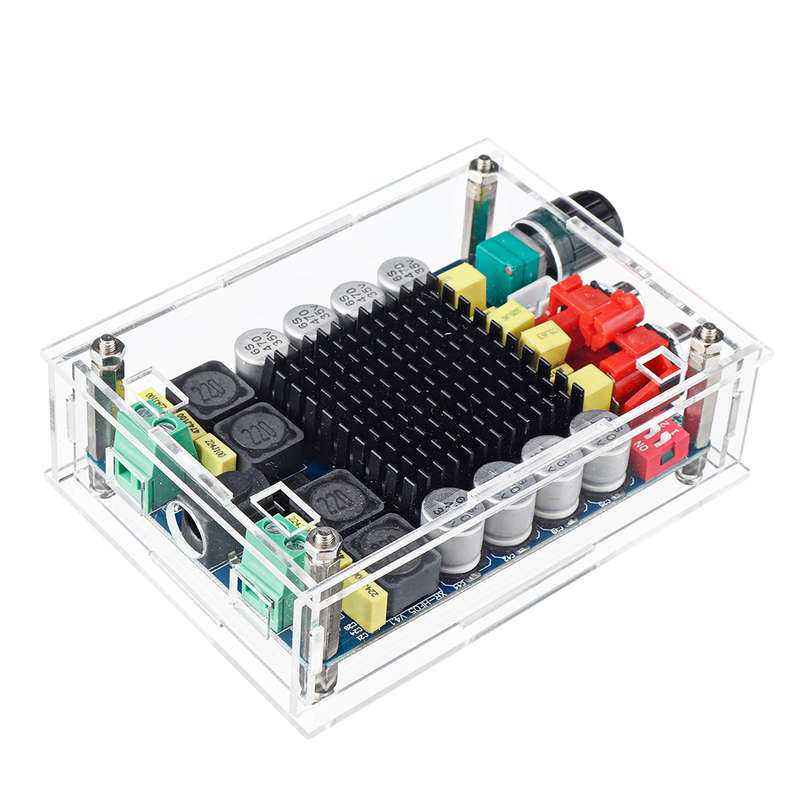

Amplifier chip: TDA7498 Output power: 100W+100W (Vcc = 36 V, RL = 6, THD: 10%) Output power: 80W+80W (Vcc = 34 V, RL = 8, THD: 10%) Wide range single power supply: 15-34VDC(recommended 24V) Applicable speaker impedance: 8 ohm best(4 ohm or 6 ohm also works) Four fixed gain settings available: 25.6 dB, 31.6 dB, 35.1 dB and 37.6 dB Adopts differential input to minimize common-mode noise Protection: short-circuit protection, over temperature protection Designed to optimize the circuit layout.Voice pure dynamic feels dye-in-the-wood Transparent acrylic shell and two mini heatsinks make the amplifier perfect. With standby and mute features High efficiency: 90% Weight: 215g
Package Included:

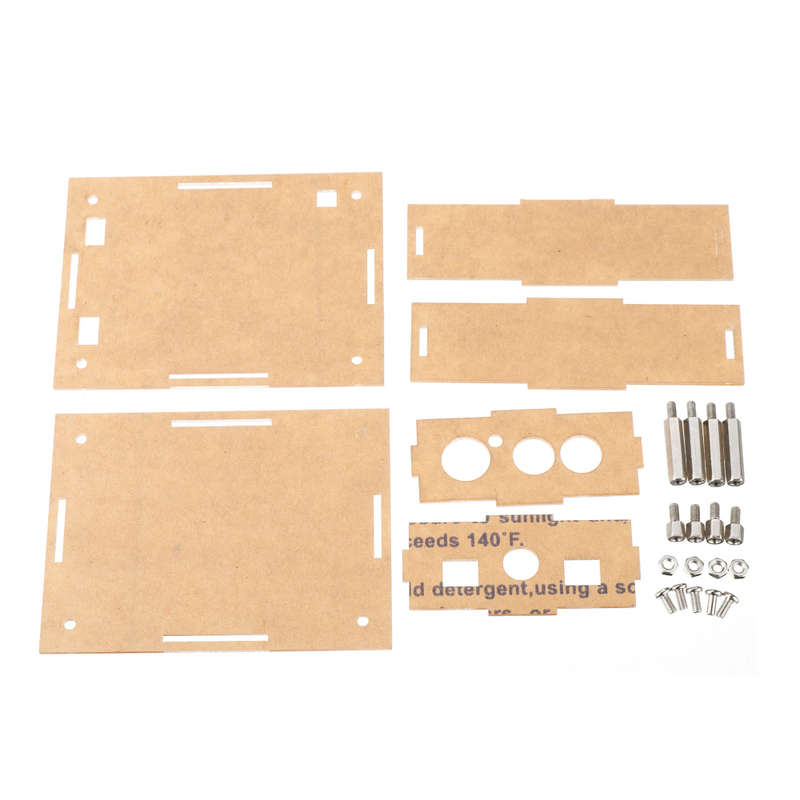

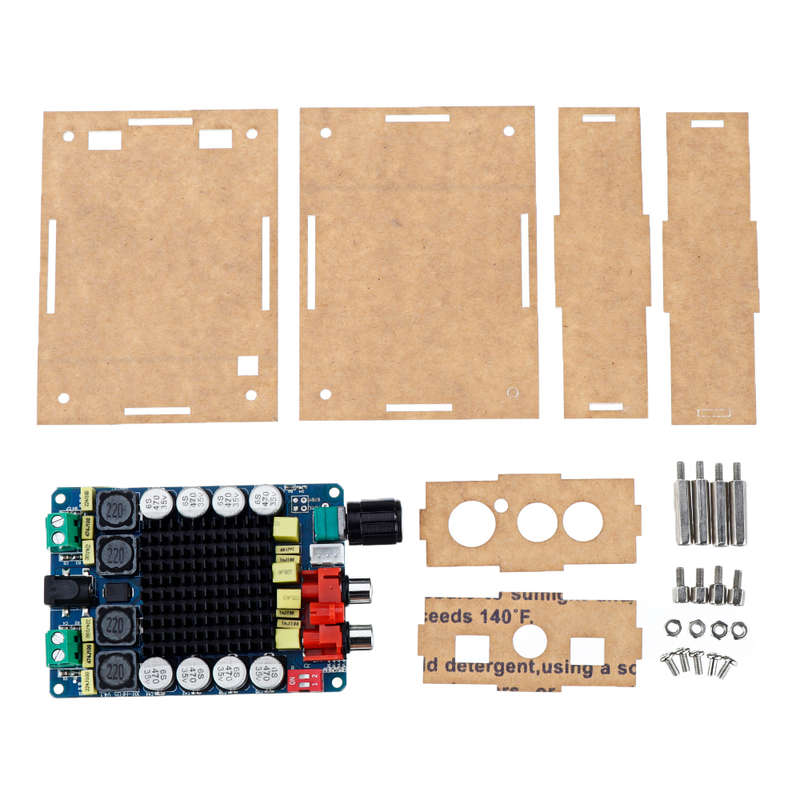

1 x Digital Amplifier Board 1 x Protective Case 1 x Matching screws and Knob
