Specifications:

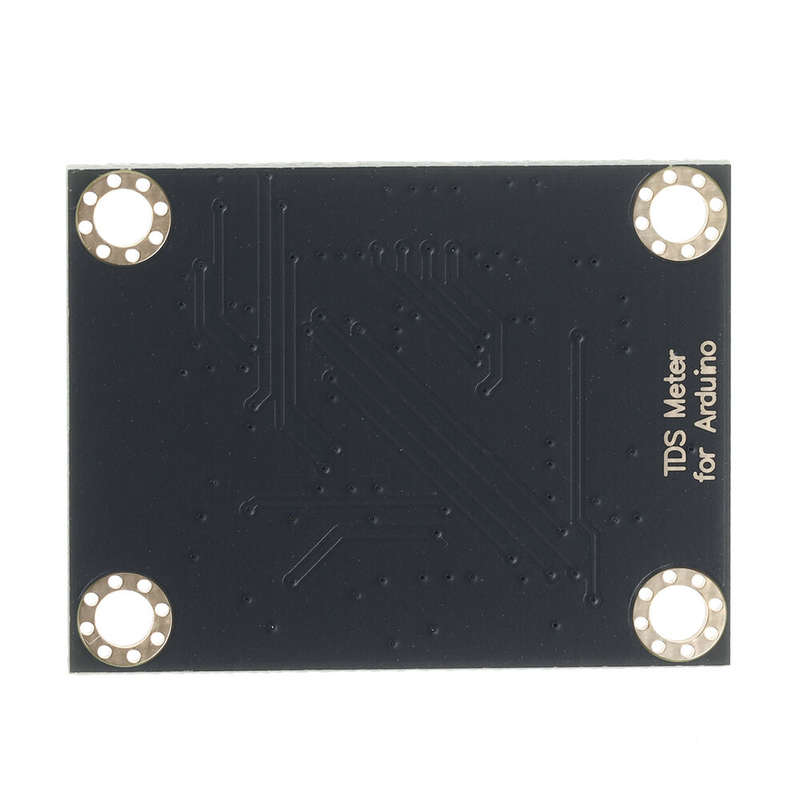

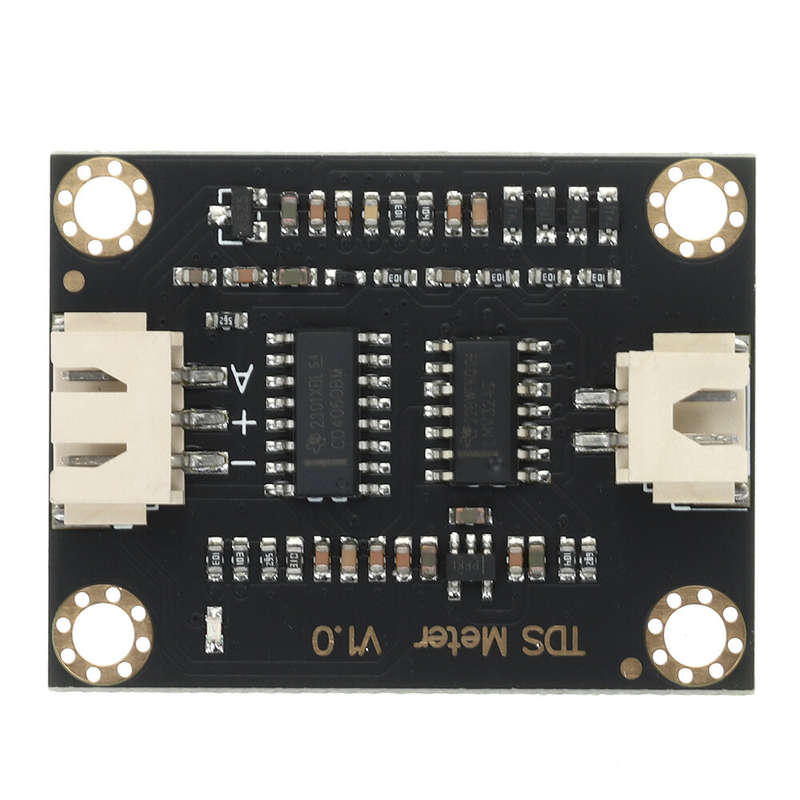

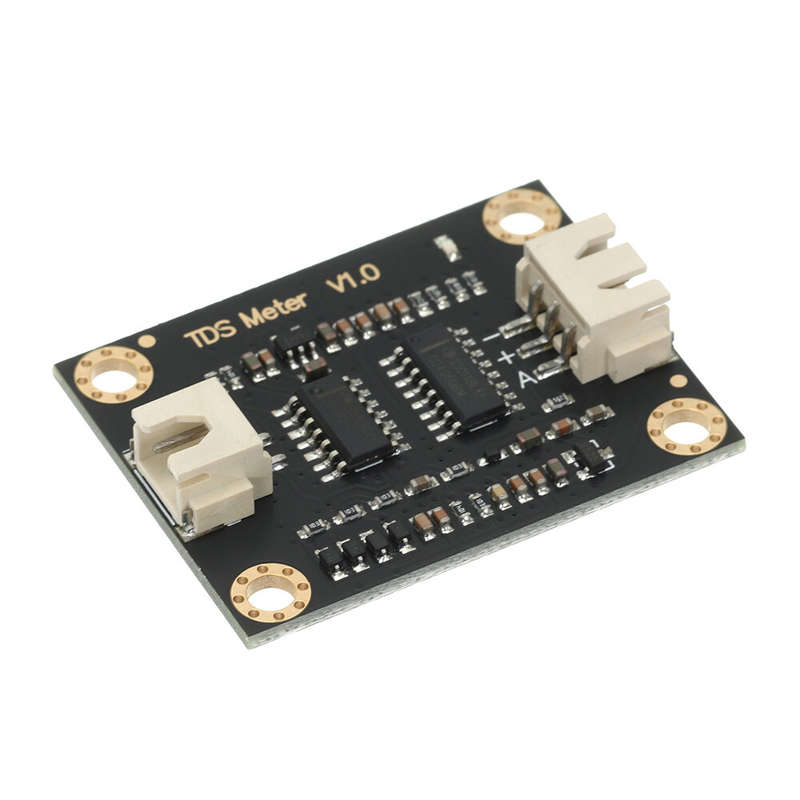

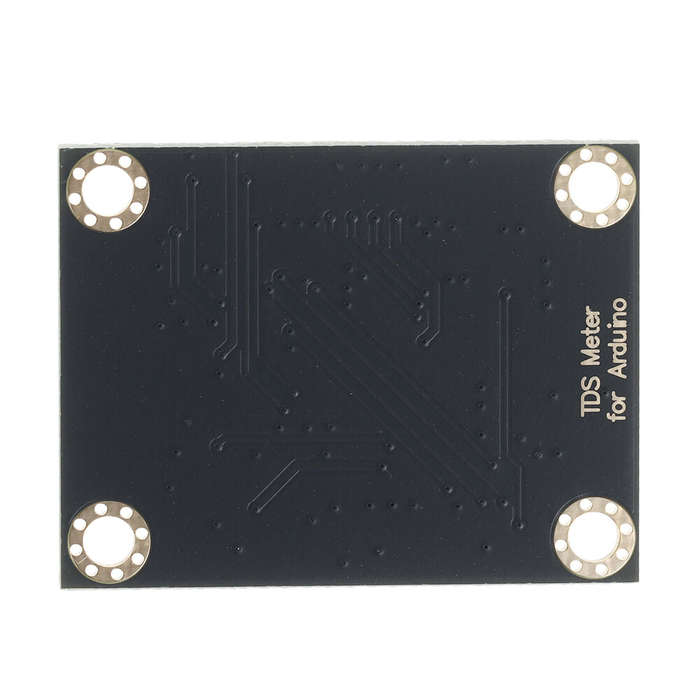

Product Name: TDS Sensor Meter V1.0 Development Board
Measurement Parameter: TDS (Total Dissolved Solids)
Input Voltage: 3.3~5.5V
Output Signal: 0~2.3V
Working Current: 3~6mA
TDS Measurement Range: 0~1000ppm
TDS Measurement Accuracy: ±10% F.S. (25)
Signal Transfer Board Size: 42*32mm
Electrode Interface: XH2.54-2P
TDS Probe Length: 83cm
Probe Interfaces: XH2.54-2P
Probe Color: Black
Waterproof Probe: Yes
Features:
1. TDS Measurement: This development board is equipped with a compatible TDS sensor designed for measuring the Total Dissolved Solids (TDS) value of water. It helps in assessing water cleanliness and is suitable for water quality detect in domestic water and hydroponics.
2. Wide Voltage Compatibility: With a wide vo
