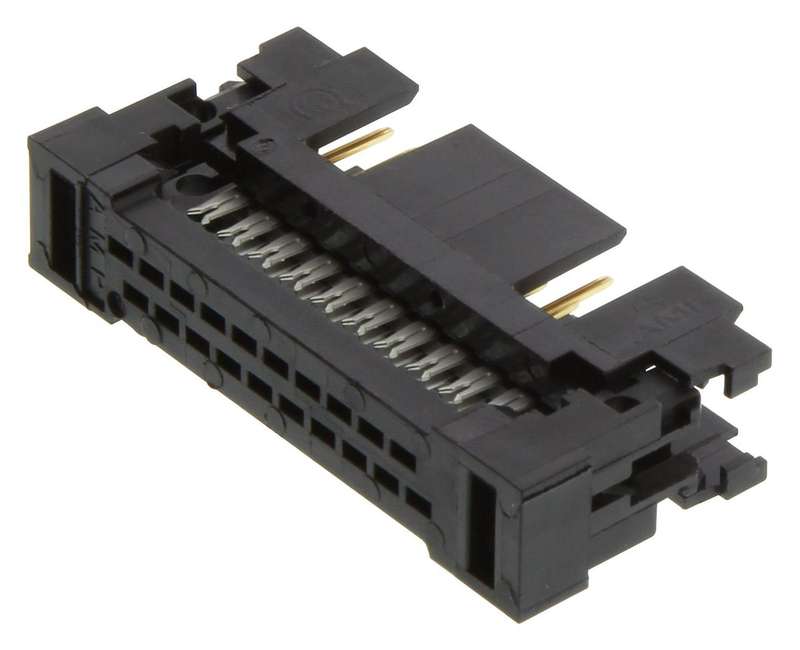

TE Connectivity (1-111446-8) IDC Connector, IDC Plug, Male, 2.54 mm, 2 Row

IDC Connector, IDC Plug, Male, 2.54 mm, 2 Row, 20 Contacts, Cable MountProduct OverviewThe 1-111446-8 is a 20-position 2-row vertical shrouded Wire-to-Wire UniversalI/O Ribbon Cable Connector with 0.76µm gold-plated phosphor bronze tuning forkdesign pin contacts and black UL 94V-0 rated flame retardant thermoplastichousing. The plug supports through-hole solder termination method to PC boardand screw mount PCB mount retention type.Low profilePolarizationWithout mounting ears and latchInsulation Displacement Crimp (IDC) termination method to wire/cableKeyed mating alignment typeApplicationsIndustrialProduct InformationPitch Spacing: 2.54mmIDC Connector Type: IDC PlugContact Gender: MaleNo. of Contacts: 20ContactsNo. of Rows: 2 RowConnector Mounting: Cable MountContact Material: Phosphor BronzeContact Plating: Gold Plated ContactsProduct Range: AMP-LATCH Universal I/O Series
