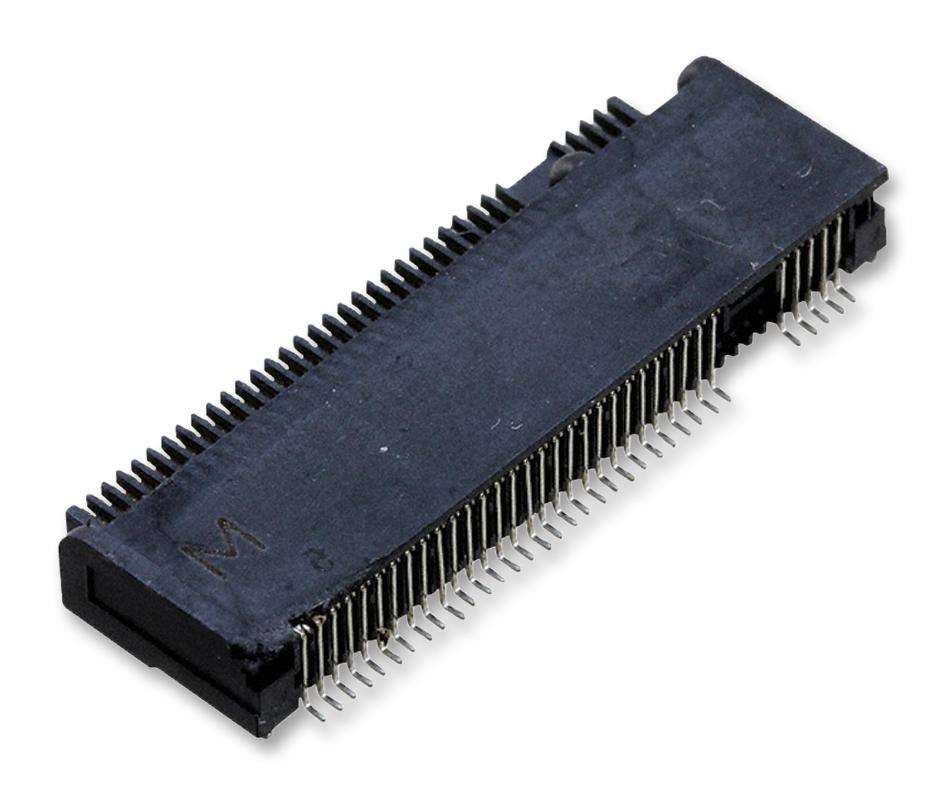

TE Connectivity (1-2199119-5) Card Edge Connector, Dual Side, 67 Contacts

Card Edge Connector, Dual Side, 67 Contacts, Surface Mount, Right Angle, SolderProduct OverviewThe 1-2199119-5 is a 67-position 2-row right angle Card Edge Socket withgold-plated copper alloy contacts and black high temperature thermoplastichousing. It supports multiple function add-in cards/modules including Wi-Fi,Bluetooth, global navigation satellite systems and near field communication. TheM.2 (NGFF) series surface mount card edge connector is designed for double-sidedmodules.M KeyingSupport PCI express 3.0, USB 3.0 and SATA 3.0Save more than 20% PCB real estate compared to PCIe mini cardReduces connector height by 15%Ensures proper mating with various module cardsSupports higher data rates50VAC Operating voltageApplicationsComputers & Computer Peripherals, Portable Devices, Consumer Electronics,Wireless, Communications & NetworkingProduct InformationCard Edge Connector Type: Dual SideNo. of Contacts: 67ContactsCard Thickness: -No. of Contacts: 67 ContactsCard Edge / Backplane Connector Type: Card EdgeConnector Mounting: Surface MountPitch Spacing: 0.5mmConnector Body Orientation: Right AngleContact Termination Type: SolderContact Material: Copper AlloyNo. of Rows: 2RowsContact Plating - Mating Side: 15µ" Gold Plated ContactsRow Pitch: 7.55mmConnector Body Material: Thermoplastic BodyContact Plating: Gold Plated ContactsProduct Range: M.2 (NGFF)
