TE Connectivity (1-406525-1) Modular Connector, RJ45 Jack, 1 x 1 (Port)

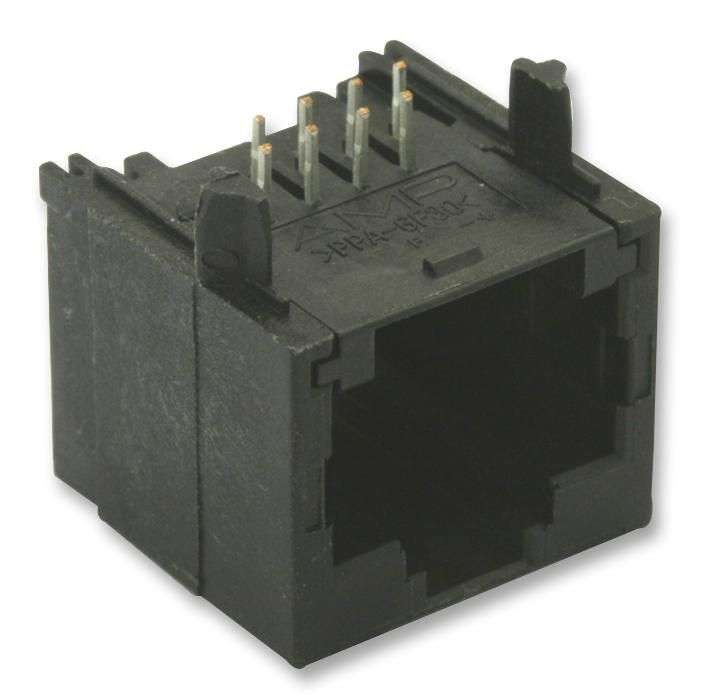

Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C, Cat5, Through Hole MountProduct OverviewThe 1-406525-1 is a 8P8C 1-port RJ45/CAT-5 right angle Modular Jack withgold-plated phosphor bronze contacts and high temperature thermoplastic housing.It is designed for direct mounting on PC boards, ease of soldering and boardcleaning.Solder termination150VAC Maximum voltage rating750 Mating cycles durabilityUL94V-0 Flammability ratingApplicationsComputers & Computer PeripheralsProduct InformationModular Connector Type: RJ45 JackPort Configuration: 1 x 1 (Port)Gender: JackNo. of Contacts: 8ContactsNo. of Positions / Loaded Contacts (per Port): 8P8CNo. of Positions: 8WaysLAN Category: Cat5Connector Mounting: Through Hole MountNo. of Ports: 1PortsConnector Orientation: Right AngleContact Termination Type: Through HoleShielding: UnshieldedMagnetics: Without MagneticsContact Plating: Gold Plated ContactsLEDs: Without LEDContact Material: Phosphor BronzeLight Pipes: Without Light Pipe
