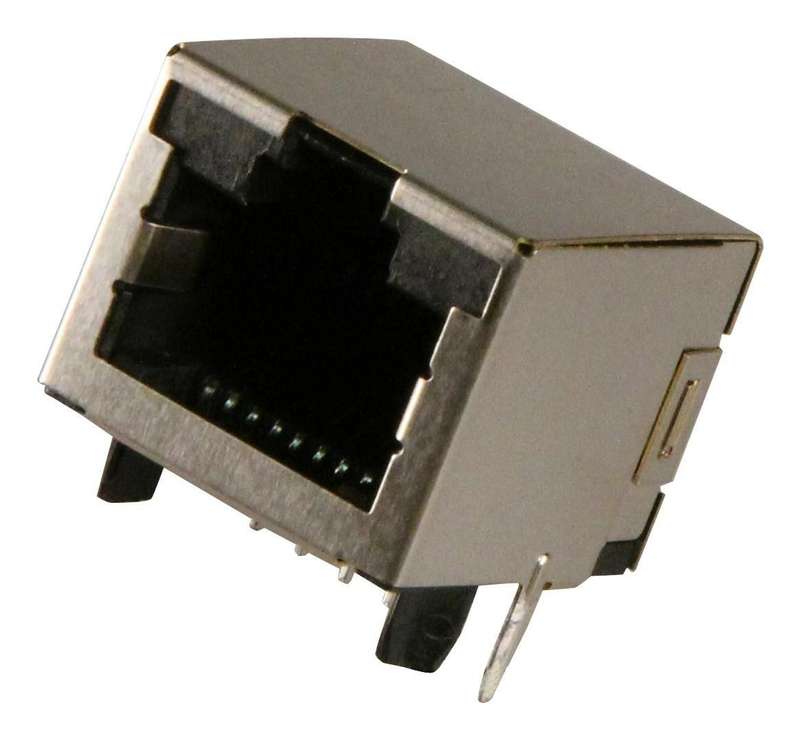

TE Connectivity (1-406541-5) Modular Connector, RJ45 Jack, 1 x 1 (Port)

Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C, Cat5, Through Hole MountProduct OverviewThe 1-406541-5 is a CAT-5 8P8C/RJ45 shielded Modular Plug with gold-platedphosphor bronze contacts, satin/nickel-plated copper alloy shield and hightemperature thermoplastic housing.Side entry (right angle) PCB mounting orientation?Solder termination method to PC boardApplicationsCommunications & Networking, Computers & Computer Peripherals, ConsumerElectronics, Wireless, IndustrialProduct InformationModular Connector Type: RJ45 JackPort Configuration: 1 x 1 (Port)Gender: JackNo. of Contacts: 8ContactsNo. of Positions / Loaded Contacts (per Port): 8P8CNo. of Positions: 8WaysLAN Category: Cat5Connector Mounting: Through Hole MountNo. of Ports: 1PortsConnector Orientation: Right AngleContact Termination Type: Through HoleShielding: ShieldedMagnetics: Without MagneticsContact Plating: Gold Plated ContactsLEDs: Without LEDContact Material: Phosphor BronzeLight Pipes: Without Light Pipe
