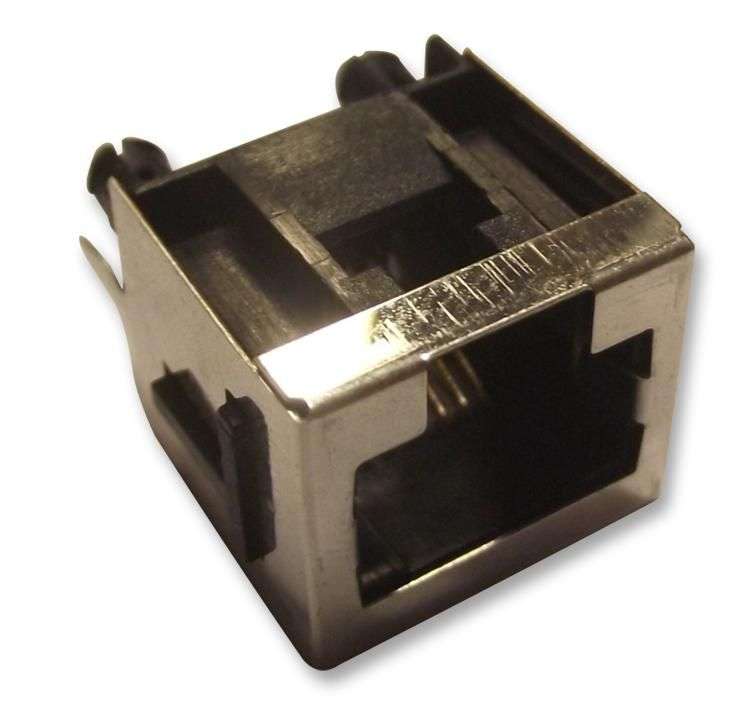

TE Connectivity (100616-1) Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C

Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C, Cat3, Through Hole MountProduct OverviewThe 100616-1 is a 1-port 8P8C RJ45/CAT-3 shielded vertical Modular Jack withgold-plated over nickel phosphor bronze contacts, black PBT housing andtin-plated brass shield. It is designed for direct mounting on PC boards, easeof soldering and board cleaning.Solder termination150VAC Maximum voltage rating750 Mating cycles durabilityUL94-HB Flammability rating?ApplicationsComputers & Computer PeripheralsProduct InformationModular Connector Type: RJ45 JackPort Configuration: 1 x 1 (Port)Gender: JackNo. of Contacts: 8ContactsNo. of Positions / Loaded Contacts (per Port): 8P8CNo. of Positions: 8WaysLAN Category: Cat3Connector Mounting: Through Hole MountNo. of Ports: 1PortsConnector Orientation: VerticalContact Termination Type: Through HoleShielding: ShieldedMagnetics: Without MagneticsContact Plating: Gold Plated ContactsLEDs: Without LEDContact Material: Phosphor BronzeLight Pipes: Without Light Pipe
