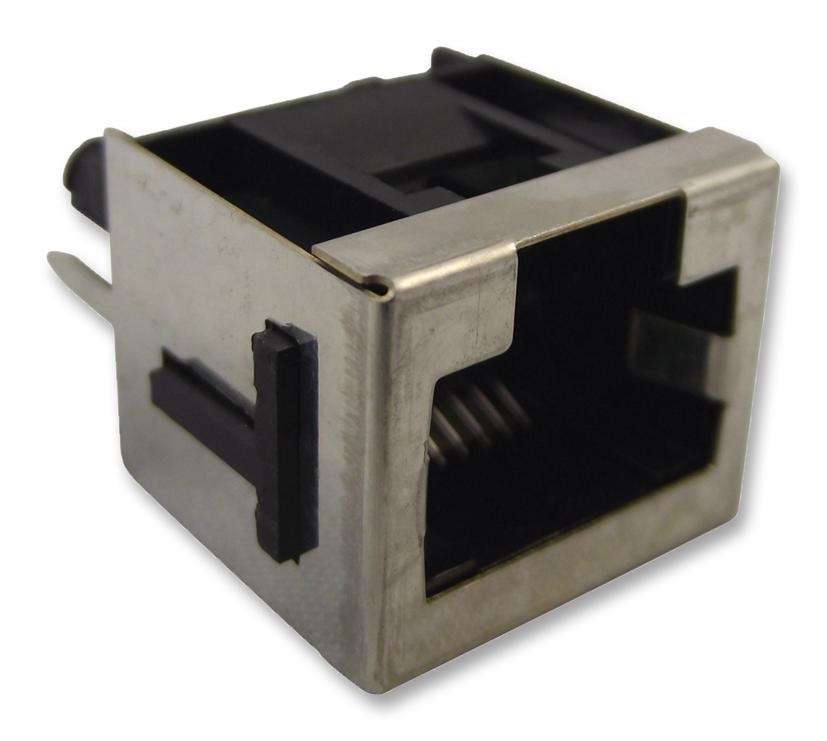

TE Connectivity (100616-2) Modular Connector, RJ45 Jack, 1 x 1 (Port)

Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C, Cat3, Through Hole MountProduct OverviewThe 100616-2 is a 1-port 8P8C Cat3 shielded thru-hole RJ45 Modular Jack Assemblywith panel stops and PCB ground option, top entry. It meets 1000V dielectricrequirement contact to contact and designed for direct mounting on pc boards. Ithas phosphor bronze plated with gold in contact area and tin-lead on soldertails over nickel under-plate contacts, polyester, polyphenylene sulphide orhigh temperature nylon material and finish housing.Designed for ease of soldering and board cleaning20dB shielding effectiveness from 30 to 400MHzUL94V-0 Flammability150VAC Voltage rating1.5A Current rating (maximum)750 Mating cycles durabilityApplicationsComputers & Computer Peripherals, Communications & NetworkingProduct InformationConnector Type: ModularModular Connector Type: RJ45 JackPort Configuration: 1 x 1 (Port)Gender: JackNo. of Contacts: 8ContactsNo. of Positions / Loaded Contacts (per Port): 8P8CNo. of Positions: 8WaysLAN Category: Cat3Connector Mounting: Through Hole MountNo. of Ports: 1PortsConnector Orientation: VerticalContact Termination Type: Through HoleShielding: ShieldedMagnetics: Without MagneticsContact Plating: Gold Plated ContactsLEDs: Without LEDContact Material: Phosphor BronzeLight Pipes: Without Light Pipe
