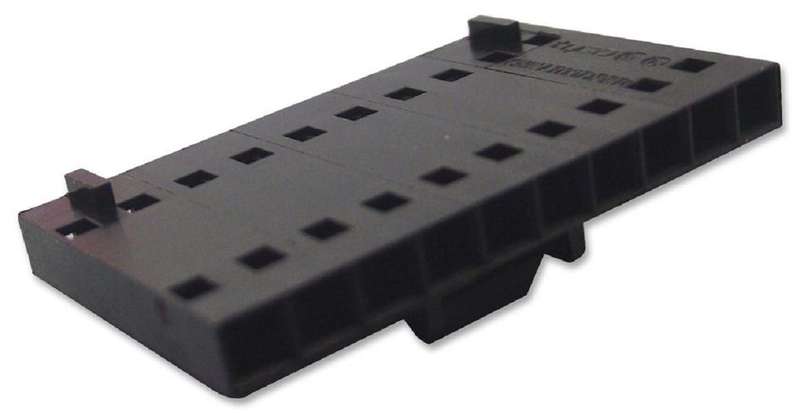

TE Connectivity(104257-9) Connector Housing, MTE, Receptacle, 10 Ways

Connector Housing, MTE, Receptacle, 10 Ways, 2.54 mm, MTE ContactsProduct OverviewThe 104257-9 is a 10-position Receptacle Housing with black thermoplasticconstruction and insulation displacement crimp termination. The Ampmodu MTEseries connectors provides interchangeable crimp snap-in pin and receptaclecontacts, optional header with swaged tail helps prevent movement prior to flowsoldering.UL94V-0 Flammability rating2.54mm Pitch spacing267V Voltage rating5000MR Insulation resistance-65 to +105°C Temperature rangeApplicationsAutomotive, Medical, Instrumentation, Test & Measurement, Telecommunications,Consumer Electronics, Portable DevicesProduct InformationProduct Range: MTEGender: Receptacle (View Associated Connectors)No. of Positions: 10WaysPitch Spacing: 2.54mmFor Use With: MTE Contacts
