TE Connectivity (1658527-7) IDC Connector, IDC Receptacle, Female, 2.54 mm

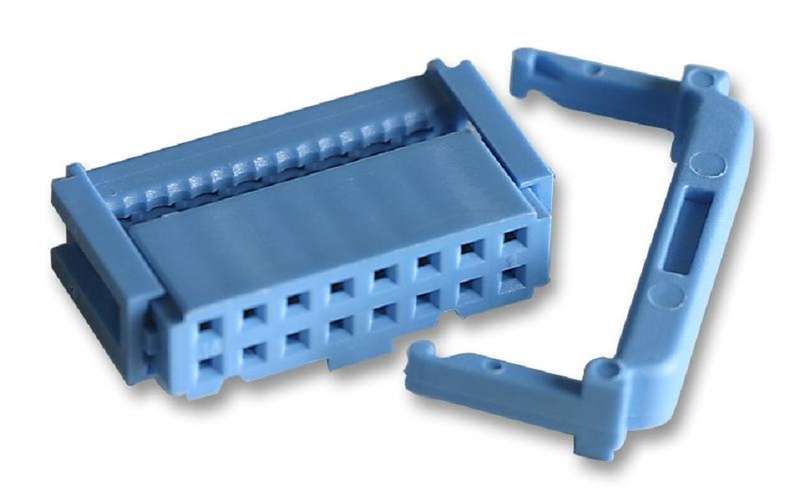

IDC Connector, IDC Receptacle, Female, 2.54 mm, 2 Row, 16 Contacts, Cable MountProduct OverviewThe 1658527-7 is a 16-way 2-row Female Ribbon Cable Socket with strain relief,gold-plated beryllium copper contacts and IDC/IDT termination. This 622 seriesconnector comes with blue glass-filled thermoplastic housing and accepts 28 to26AWG solid or stranded, PVC insulated ribbon cable.Military and centre polarizationUL94V-0 Flammability rating1A Current rating1 x 10?R at 500VDC Insulation resistance-55 to 125°C Operating temperature rangeApplicationsIndustrialProduct InformationPitch Spacing: 2.54mmIDC Connector Type: IDC ReceptacleContact Gender: FemaleNo. of Contacts: 16ContactsNo. of Rows: 2 RowConnector Mounting: Cable MountContact Material: Beryllium CopperContact Plating: Gold Plated ContactsProduct Range: 622 Series
