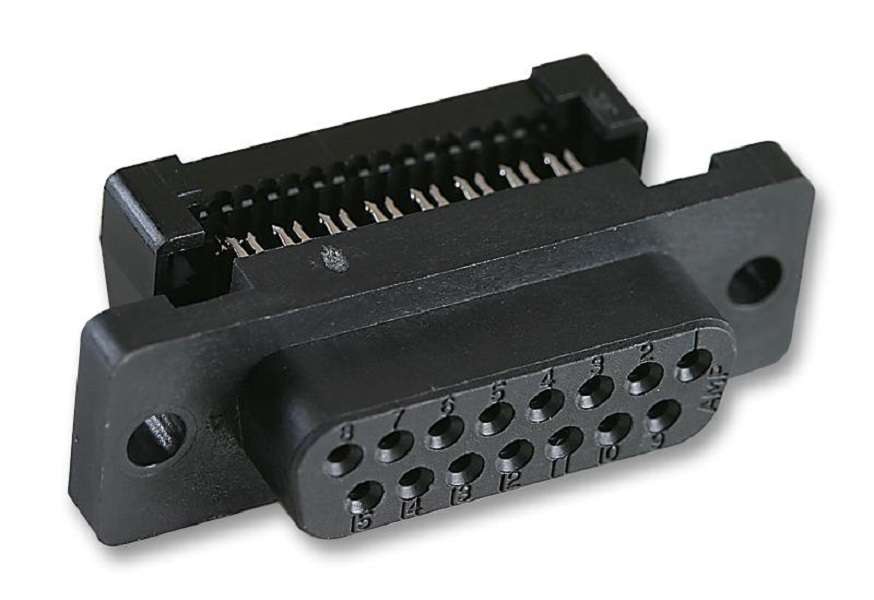

TE Connectivity (1658614-3) D Sub Connector, DB15, 15 Contacts, Receptacle

D Sub Connector, DB15, Standard, Receptacle, AMPLIMITE HDF, 15 Contacts, DA, IDC/ IDTProduct OverviewThe Amplimite HDF-20 series low-profile Sub-miniature D Connectors for roundconductor flat ribbon cable. It has phosphor bronze duplex plated pin contactwith gold on mating end, bright tin on termination end with entire contactunder-plated nickel, steel, tin or tin plated front shell and thermoplastichousing. The contacts accept 28AWG solid and stranded and 26AWG solid andstranded round conductor flat ribbon cable on 0.05-inch centres.Available in all 9, 15, 25, 37 and 50 standard shell sizesAvailable in all-plastic and metal shell plug and receptacleVisual inspection of termination possibleFluted cover provides positive alignment of cable prior to terminationWide range of application toolingPatented insulation displacement contact latches into the connector coverContact design provides a gas-tight terminationQualified to Battelle level III environmentUL94V-0 Flammability ratingApplicationsCommunications & Networking, Computers & Computer Peripherals, IndustrialProduct InformationD Sub Connector Type: StandardNo. of Contacts: 15ContactsGender: Receptacle (View Associated Connectors)Product Range: AMPLIMITE HDFD Sub Shell Size: DAContact Termination Type: IDC / IDTConnector Mounting: Cable Mount, Panel MountContact Material: Phosphor BronzeContact Plating: Gold Plated ContactsConnector Body Material: Plastic Body
