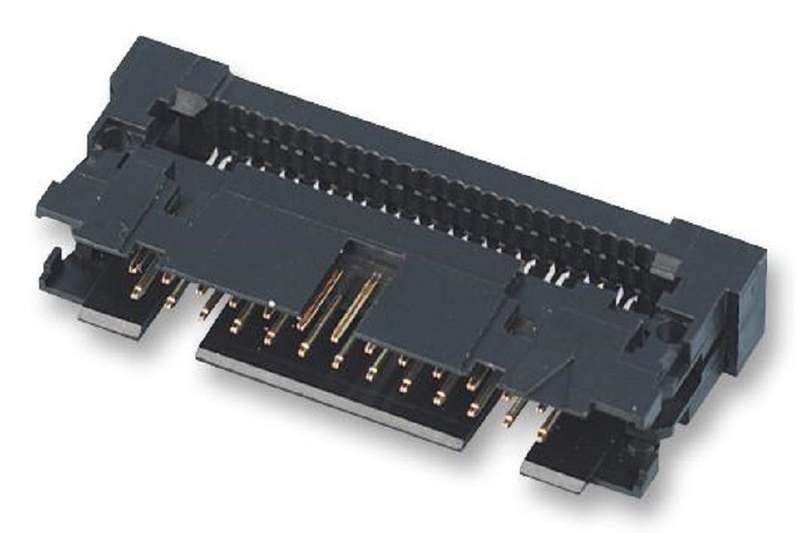

TE Connectivity (2-111446-0) IDC Connector, IDC Plug, Male, 2.54 mm, 2 Row

IDC Connector, IDC Plug, Male, 2.54 mm, 2 Row, 26 Contacts, Cable MountProduct OverviewThe 2-111446-0 is a 26-position 2-row vertical shrouded Wire-to-Wire UniversalI/O Connector with 0.76µm gold-plated phosphor bronze solder dip design pincontacts and black UL 94V-0 rated flame retardant thermoplastic housing. Theplug supports through-hole solder termination method to PC board, screw mountPCB mount retention type.Low profilePolarizationWithout mounting ears and latchInsulation Displacement Crimp (IDC) termination method to wire/cableKeyed mating alignment typeApplicationsIndustrialProduct InformationPitch Spacing: 2.54mmIDC Connector Type: IDC PlugContact Gender: MaleNo. of Contacts: 26ContactsNo. of Rows: 2 RowConnector Mounting: Cable MountContact Material: Phosphor BronzeContact Plating: Gold Plated ContactsProduct Range: AMP-LATCH Universal I/O Series
