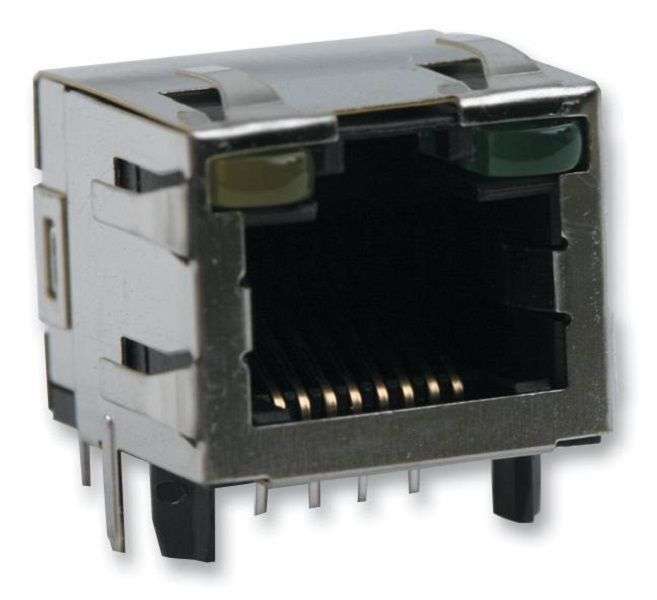

TE Connectivity (2-406549-1.) Modular Connector, RJ45 Jack, 1 x 1 (Port)

Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C, Cat5, Through Hole MountProduct OverviewThe LED's are integrated into the modular jack thus eliminating the need foradditional system space for indicators. The modular jack functions astransmit/receive with line status and collisions identified by viewing the LED'sdirectly in each port. Recommended applications include Fast Ethernet, 10 Base-TEthernet and 10/100 BaseT Ethernet (Cat 5 on two pair 1/2, 3/6)Compact size with high reliability8 position, 8 contactsMeet FCC Rules and Regulations, Part 68UL Recognised and CSA CertifiedProduct InformationModular Connector Type: RJ45 JackPort Configuration: 1 x 1 (Port)Gender: JackNo. of Contacts: 8ContactsNo. of Positions / Loaded Contacts (per Port): 8P8CNo. of Positions: 8WaysLAN Category: Cat5Connector Mounting: Through Hole MountNo. of Ports: 1PortsConnector Orientation: Right AngleContact Termination Type: Through HoleShielding: ShieldedMagnetics: Without MagneticsContact Plating: Gold Plated ContactsLEDs: With LEDContact Material: Phosphor BronzeLight Pipes: Without Light PipeProduct Range: LE
