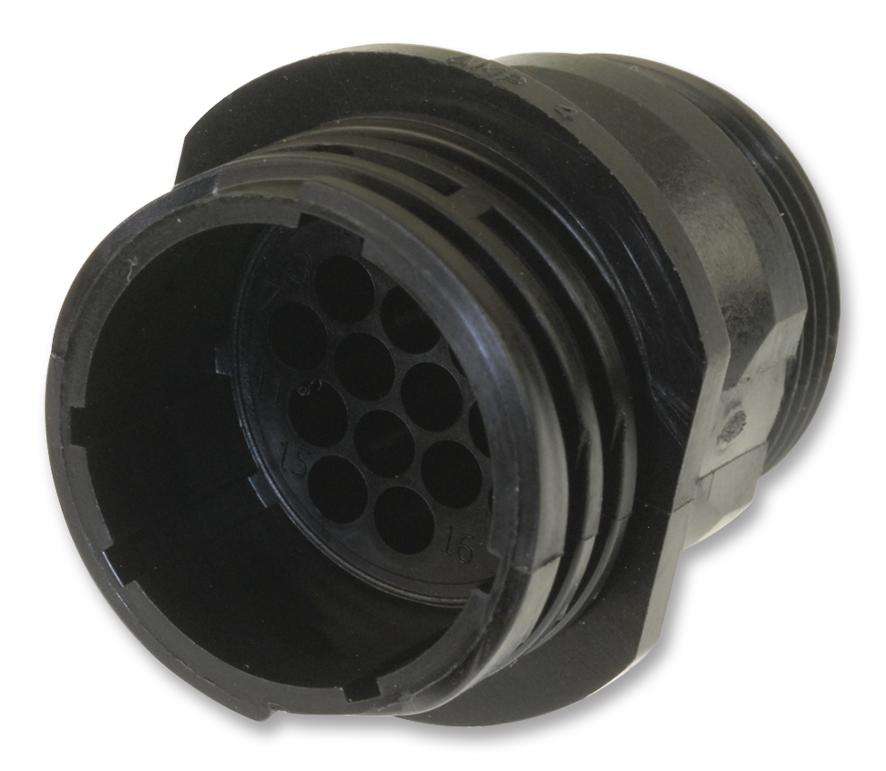

TE Connectivity (206036-3) Circular Connector, Cable Mount Receptacle

Circular Connector, CPC Series 1, Cable Mount Receptacle, 16 ContactsProduct OverviewThe 206036-3 is a 16-position straight Free-hanging Receptacle with pin typecontacts and 17-16 insert arrangement. The standard circular plastic connectoris made of UL94V-0 flame-rated black thermoplastic. The series 1 connectorpermit the use of multiple combinations of signal and coaxial circuits in thesame housing by accepting durable multi-mate contacts. Type III+ contacts(0.062-inch (1.57mm) pin diameter) are capable of carrying a maximum of 13A whencrimped in wire.LightweightQuick connect/disconnect capability with thread assist, positive detent couplingPolarized for proper mating of connector halvesKeyed mating alignmentThreaded coupling mating retentionContact protectionApplicationsCommercial, Signal Processing, Power ManagementProduct InformationProduct Range: CPC Series 1Circular Connector Shell Style: Cable Mount ReceptacleNo. of Contacts: 16ContactsCircular Contact Type: Crimp Pin - Contacts Not SuppliedCoupling Style: ThreadedConnector Body Material: Thermoplastic Body
