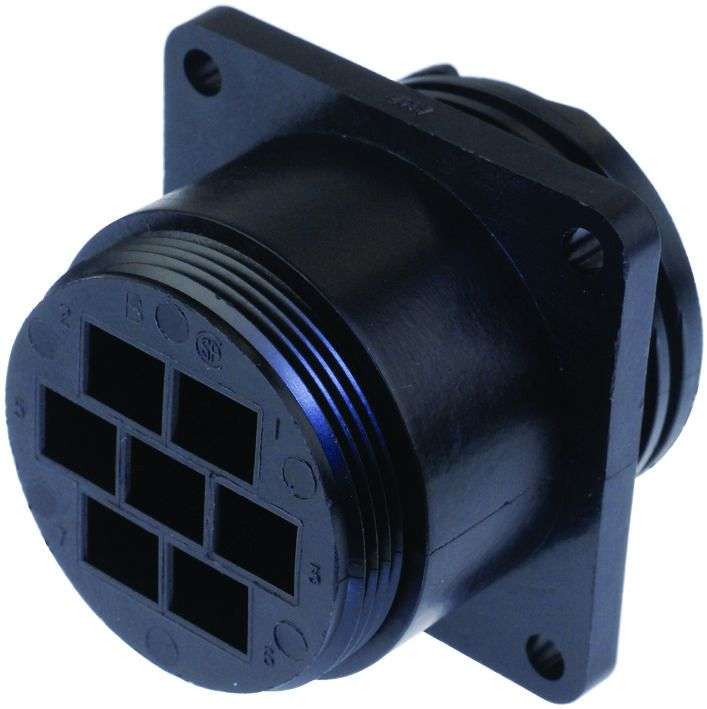

Circular Connector, CPC Series 3, Panel Mount Receptacle, 7 Contacts,Thermoplastic BodyProduct OverviewThe 206137-1 is a 7-position straight Square Flange Receptacle with pin typecontacts, mounting holes and 23-7 insert arrangement. This standard sex CPCconnector is made of UL94V-0 rated black thermoplastic housing. The series 3 CPCconnector for panel-mount. The series 3 connector accepts type XII powercontacts which can carry up to 25A per contact. These contacts will accommodatea wire size range of 16 to 10AWG (1.4 to 5mm²).LightweightQuick connect/disconnect capability with thread assist, positive detent couplingPolarized for proper mating of connector halvesKeyed mating alignmentThreaded coupling mating retentionContact protectionApplicationsCommercial, Signal Processing, Power ManagementProduct InformationProduct Range: CPC Series 3Circular Connector Shell Style: Panel Mount ReceptacleNo. of Contacts: 7ContactsConnector Body Material: Thermoplastic Body
