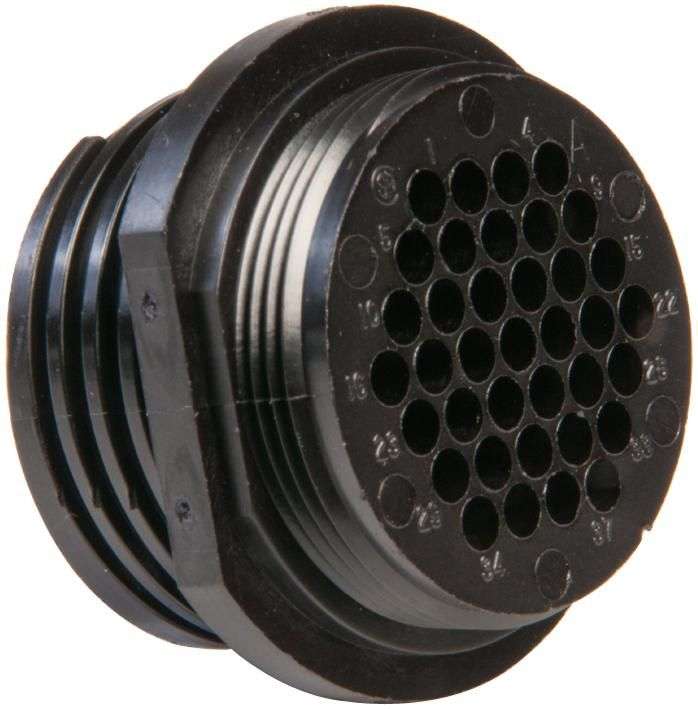

TE Connectivity (206306-2) Circular Connector, Cable Mount Receptacle

Circular Connector, CPC Series 1, Cable Mount Receptacle, 37 ContactsProduct OverviewThe 206306-2 is a 37-position straight Free-hanging Receptacle with socket typecontacts and 23-37 insert arrangement. The reverse sex CPC connector is made ofUL94V-0 rated black thermoplastic. The series 1 connector permit the use ofmultiple combinations of signal and coaxial circuits in the same housing byaccepting durable multi-mate contacts. Type III+ contacts (0.062-inch (1.57mm)pin diameter) are capable of carrying a maximum of 13A when crimped in wire.LightweightQuick connect/disconnect capability with thread assist, positive detent couplingPolarized for proper mating of connector halvesKeyed mating alignment (5 keys)Threaded coupling mating retentionContact protectionApplicationsCommercial, Signal Processing, Power ManagementProduct InformationProduct Range: CPC Series 1Circular Connector Shell Style: Cable Mount ReceptacleNo. of Contacts: 37ContactsCircular Contact Type: Crimp Socket - Contacts Not SuppliedCoupling Style: ThreadedConnector Body Material: Thermoplastic Body
