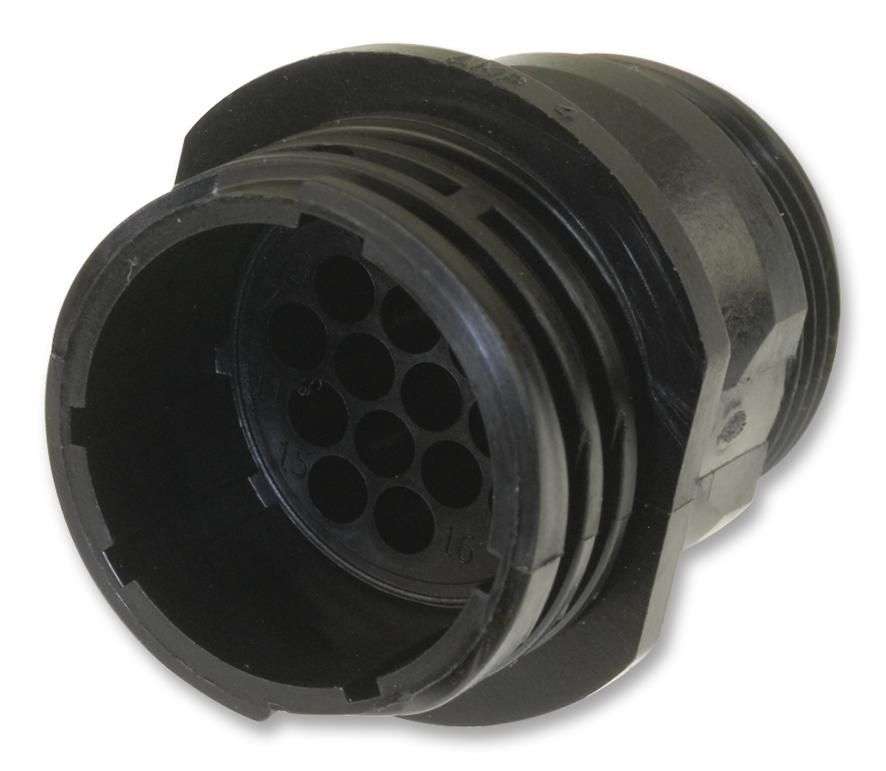

TE Connectivity (206838-2) Circular Connector, Receptacle, 24 Contacts

Circular Connector, CPC Series 1, Cable Mount Receptacle, 24 ContactsProduct OverviewThe 206838-2 is a 24-way straight Circular Connector with free-hanging, squareflange receptacle, 23-24 insert arrangement. The CPC connector is UL94V-0flame-rated and made of stabilized, heat-resistant, self extinguishingthermoplastic. Series 1 connector permit the use of multiple combinations ofsignal and coaxial circuits in the same housing by accepting durable multi-matecontacts. This pin contacts include type III+ and subminiature coaxial contacts,interchangeable in the same multi-mate contact cavity. Type III+ contacts(0.062-inch (1.57mm) pin diameter) are capable of carrying a maximum of 13A whencrimped in wire.LightweightQuick connect/disconnect capability with thread assist, positive detent couplingPolarized for proper mating of connector halvesKeyed mating alignment type?Threaded coupling mating retention typeFree hanging mounting styleContact protection-40 to +105°C Operating temperature rangeApplicationsCommercial, Signal Processing, Power ManagementProduct InformationProduct Range: CPC Series 1Circular Connector Shell Style: Cable Mount ReceptacleNo. of Contacts: 24ContactsCircular Contact Type: Crimp Pin - Contacts Not SuppliedCoupling Style: ThreadedConnector Body Material: Thermoplastic Body
