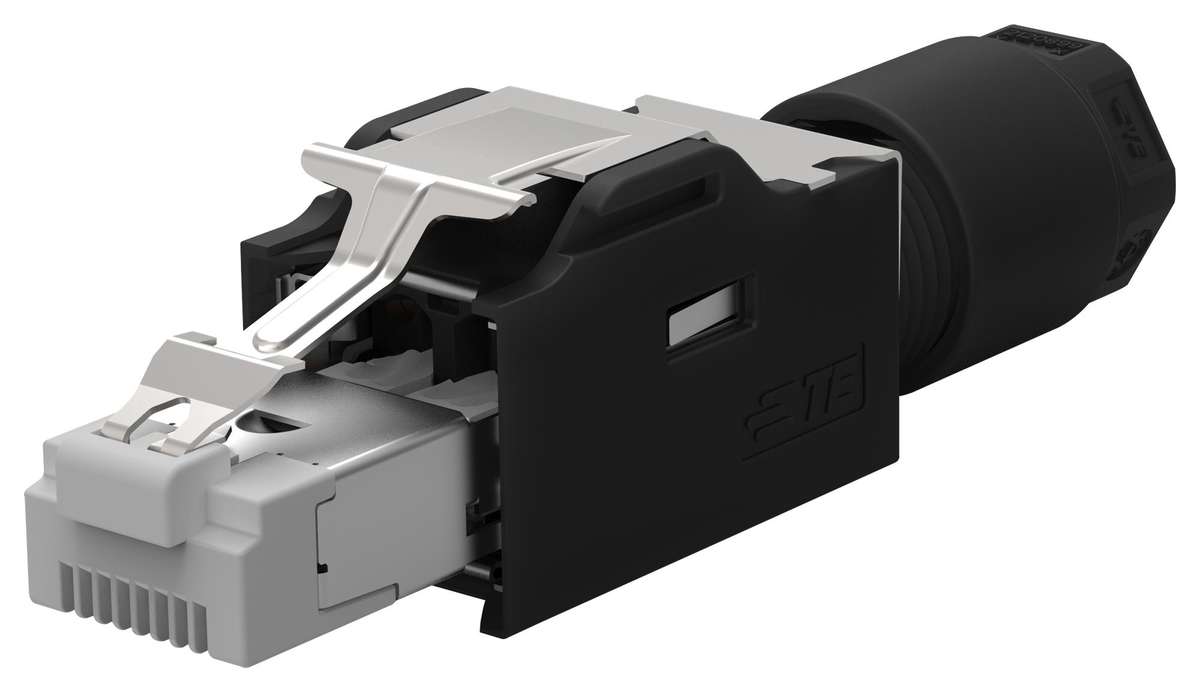

TE Connectivity (2120892-1) Modular Connector, IP20, Cat6a

Modular Connector, IP20, Cat6a, RJ45 Wired Plug, 1 x 1 (Port), 8P8C, Cat6a,IP20, Cable MountProduct OverviewTE Connectivity's latest Industrial IP20 RJ45 Cat6a plug is based on "commoncore" technology and it can be terminated tool-less with Cat6a cables in thefield. This solution includes an automatic wire cutoff function, which, uponclosing the core housing, the excess wire is cut off at the same time the wiresare connected to the plug contacts. It can handle 10 Gbps bit rates, supportingbandwidths of up to 500 MHz.Broad range of wires (AWG 26 to AWG 22, solid and stranded) can be terminatedwithout the use of toolsSupported wire insulation diameters of 0.88 - 1.5mmRange of cable diameters supported 5.8?-?8.2 mmOperating Temperature: -40 to +85 °CSupports 750 mating cycles minimumHousing: Thermoplastic (UL94 V0)Housing latch: Stainless SteelApplicationsIndustrial, Telecommunications, Communications & Networking, ConsumerElectronicsProduct InformationModular Connector Type: RJ45 Wired PlugPort Configuration: 1 x 1 (Port)No. of Positions / Loaded Contacts (per Port): 8P8CLAN Category: Cat6aIP Rating: IP20Contact Plating: Gold Plated ContactsConnector Mounting: Cable MountConnector Orientation: VerticalContact Material: Copper AlloyShielding: ShieldedMagnetics: Without MagneticsLEDs: Without LEDLight Pipes: Without Light Pipe
