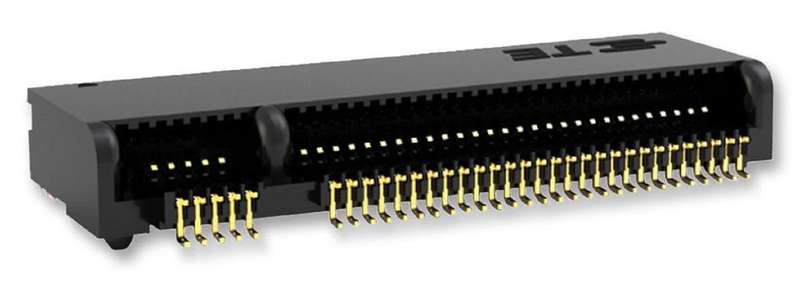

TE Connectivity (2199230-8) Card Edge Connector, Dual Side, 67 Contacts

Card Edge Connector, Dual Side, 67 Contacts, Surface Mount, Right Angle, SolderProduct OverviewThe M.2 (NGFF) series M.2 Connector supports multiple function add-in cards andmodules including WiFi, Bluetooth, global navigation satellite systems, nearfield communication, hybrid digital radio, wireless gigabit alliance (WiGig),wireless wide area network and solid-state storage devices. It also addsfunctionality to PCIe Gen 3, SATA 3, SATA I/O and USB 3.0. The new, smaller formfactor is suitable for applications in new thin platforms. The M.2 nextgeneration form factor (NGFF) product line is a natural transition from the minicard and half mini card to a smaller form factor in both size and volume.Available in various heightsDesigned for both single and double-sided modulesAvailable in various keying options for module cardsSupport PCI Express 3.0, USB 3.0 and SATA 3.0Save more than 20% PCB real estate compare to PCIe mini cardReduces connector height by 15%Ensures proper mating with various modules cardsSupports higher data rateApplicationsWireless, Computers & Computer Peripherals, Communications & Networking,Portable Devices, Consumer ElectronicsProduct InformationCard Edge Connector Type: Dual SideNo. of Contacts: 67ContactsCard Thickness: -No. of Contacts: 67 ContactsCard Edge / Backplane Connector Type: Card EdgeConnector Mounting: Surface MountPitch Spacing: 0.5mmConnector Body Orientation: Right AngleContact Termination Type: SolderContact Material: Copper AlloyNo. of Rows: 2RowsContact Plating - Mating Side: 15µ" Gold Plated ContactsRow Pitch: 7.55mmConnector Body Material: Thermoplastic BodyContact Plating: Gold Plated ContactsProduct Range: M.2 (NGFF)
