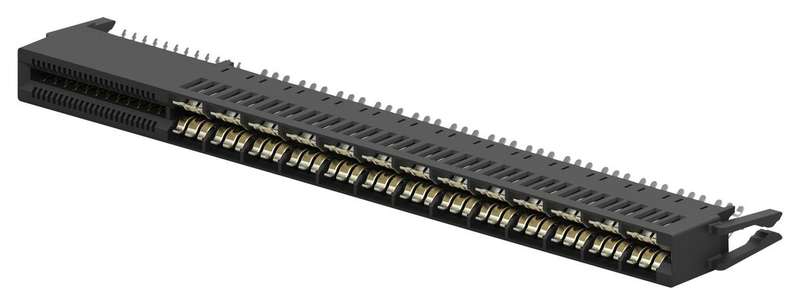

TE Connectivity (2212078-1) Card Edge Connector, Dual Side, 1.57 mm

Card Edge Connector, Dual Side, 1.57 mm, 26 (Power), 48 (Signal) Contacts,Straddle MountProduct OverviewTE Connectivity's next generation MULTI-BEAM card edge connectors deliver thebest overall power and signal density to address server market requirements forperformance, profile and cost. MULTI-BEAM card edge connectors are alsoapplicable in global data communication applications to decrease costs. Theseproducts are the next generation card edge connectors over the current SEC-IIpower card edge products and deliver superior current and signal density with aunique design. The scalable and modular features also support greaterflexibility in configuration and PCB design.Highest signal density in the market with 60% signal space savings (signal pitch1.00mm, power pitch 7.26mm)The series provide better gatherability for blind-mate applications: +/-2.0mm(X), +/-1.54mm (Y) and supports two PCB thickness: 1.57mm and 2.36mmCurrent Rating: Power contact: up to 43A; Signal contact: up to 2AVoltage Rating: Power: 100V max.; Signal: 60V max.Mechanical shock and vibration resistantLow mating force: 6N max. per power contact; 1.5N max. per signal contactDurability: 200 mating cyclesApplicationsCommunications & Networking, Data , Computing, Industrial Automation, PowerManagement, TelecommunicationsProduct InformationCard Edge Connector Type: Dual SideNo. of Contacts: 74ContactsCard Thickness: 1.57mmNo. of Contacts: 26 (Power), 48 (Signal) ContactsCard Edge / Backplane Connector Type: Card EdgeConnector Mounting: Straddle MountPitch Spacing: -Connector Body Orientation: StraightContact Termination Type: SolderContact Material: Copper AlloyNo. of Rows: 2RowsContact Plating - Mating Side: Gold Plated ContactsRow Pitch: -Connector Body Material: Thermoplastic BodyContact Plating: Gold Plated ContactsProduct Range: MULTI-BEAM CE
