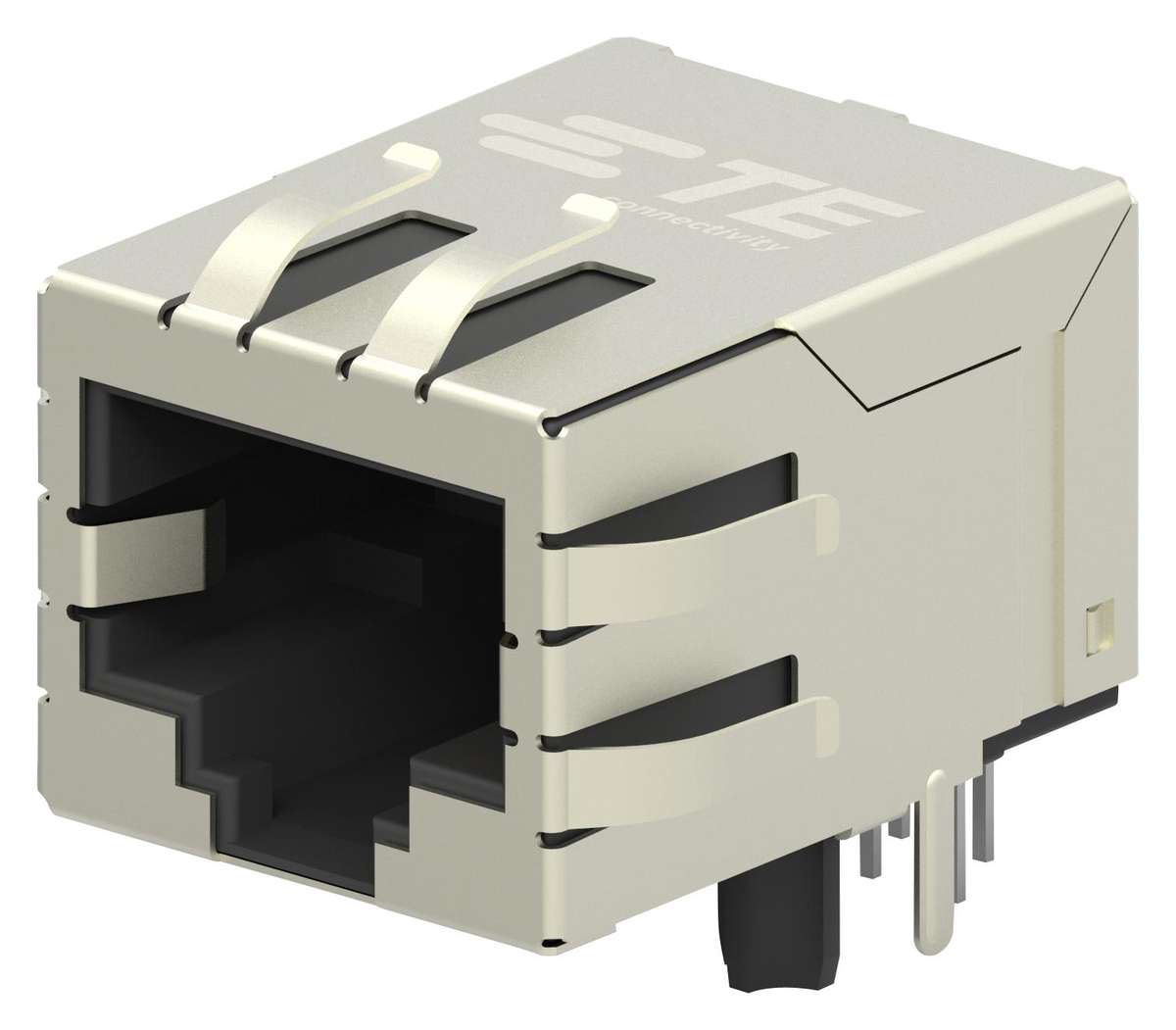

TE Connectivity (2301994-7) Modular Connector, Cat6

Product OverviewThe 2301994-7 from TE Connectivity is an industrial RJ45 jack with integratedmagnetics. It offers a highly integrated connectivity solution from the cable tothe physical layer for industrial Ethernet. Integrating the magnetics into thejack allows for a much improved EMI noise shielding, enabling more reliableconnections. A standardized RJ45 (8P8C) portfolio with 1x1 right angle formfactor addresses many of the industrial applications. Specific industrialrequirements such as high reliability through improved corrosion resistance,extended temperature range from -40°C to +85°C and long product lifetime are alladdressed, including support of the latest reflow soldering productionprocesses.Supports 1Gbps data rate (IEC 60603-7-51), Cat 6 performance categoryCurrent mode PHY-chips supportedAvailable with standard-latch down tab optionCopper alloy contacts with 0.76µm (30µ") gold over 1.27µm (50µ") nickel platingImproved EMI integrity and signal integrity performanceBrass shield with nickel plating, UL recognizedDielectric withstanding voltage of 2250VDC, through hole solder terminationMinimum 750 mating cycles, operating temperature range from -40°C to+85°CBlack colour high grade LCP (liquid crystal polymer material), UL94 V-0flammability ratingIntegrated magnetics reduces the (analogue) design efforts required by the userApplicationsIndustrialProduct InformationGender: JackNo. of Contacts: 8ContactsNo. of Positions: 8WaysLAN Category: Cat6No. of Ports: 1PortsContact Termination Type: Through HoleContact Plating: Gold Plated ContactsContact Material: Copper AlloyProduct Range: MagJack
