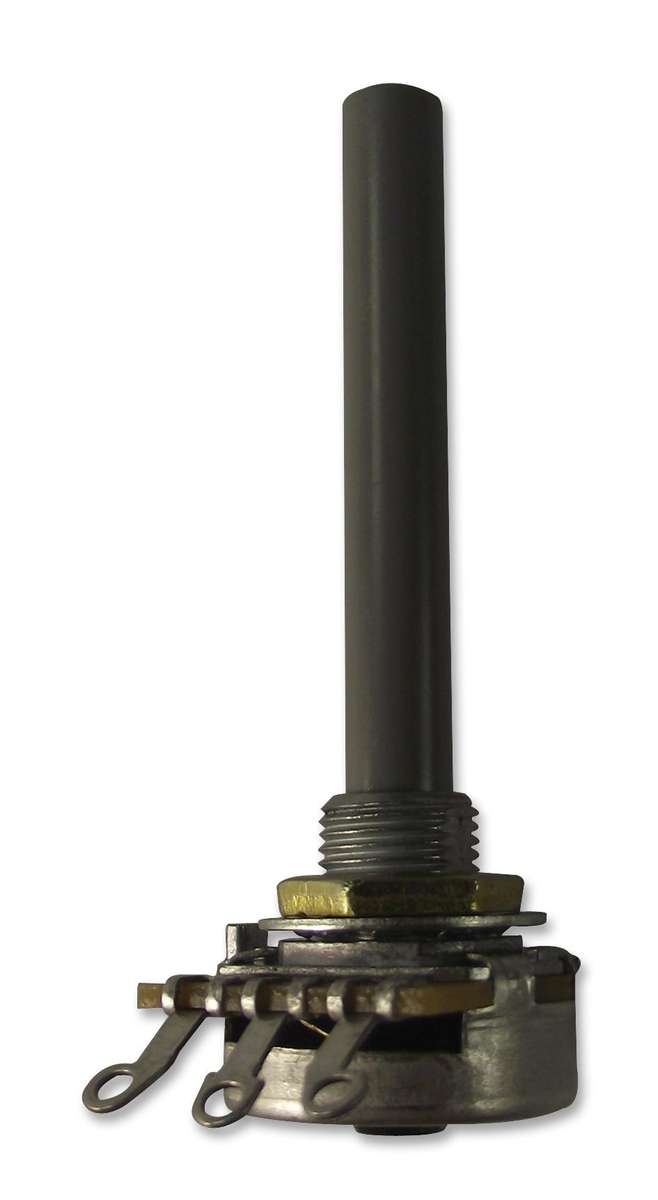

Te Connectivity (23ESA105MMF50NF) Rotary Potentiometer, Spindle Operated

Rotary Potentiometer, Spindle Operated, 1 Mohm, 1 Turns, Linear, 400 mW, ± 20%,23ESAProduct InformationTrack Resistance: 1MohmNo. of Turns: 1TurnsTrack Taper: LinearPower Rating: 400mWResistance Tolerance: ± 20%Product Range: 23ESAPotentiometer Mounting: Panel MountShaft Diameter: 6.35mmNo. of Gangs: 1Adjustment Type: Screwdriver SlotShaft Length: 50mmTemperature Coefficient: -Potentiometer Type: StandardResistor Technology: Metal FoilPotentiometer Terminals: Solder LugResistor Case / Package: -Product Length: 60.7mmProduct Width: -Product Height: -Operating Temperature Min: -10°COperating Temperature Max: 70°CProduct OverviewThe 23ESA series from TE connectivity are single turn spindle operatedpotentiometers. These potentiometers are standard linear types which can betailored to suit more specific requirements. The potentiometers are availablewith printed carbon resistance, various bush lengths in metal or plastic andinsulated shafts up to 50mm in length.Resistance range of 1Kohm to 1Mohm±20% toleranceRated power dissipation at 40°C is 0.4WMounting bracketDual gang and dual concentric StylesDiecast metal bush available
