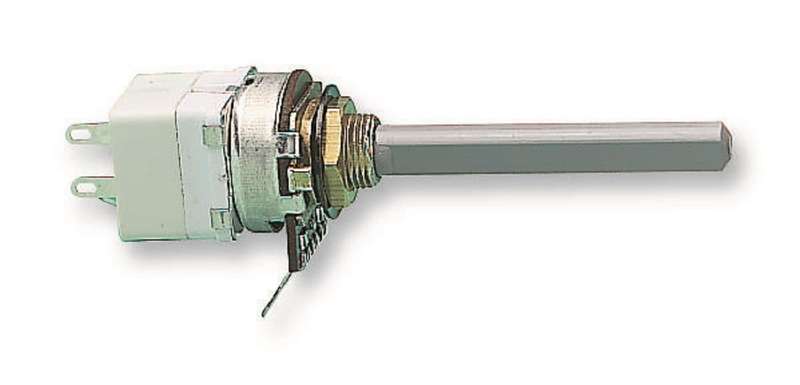

Te Connectivity (23ESA222MMF50AF) Rotary Potentiometer, Spindle Operated

Rotary Potentiometer, Spindle Operated, 2.2 kohm, 1 Turns, Linear, 400 mW, ±20%, 23ESAProduct InformationTrack Resistance: 2.2kohmNo. of Turns: 1TurnsTrack Taper: LinearPower Rating: 400mWResistance Tolerance: ± 20%Product Range: 23ESAPotentiometer Mounting: Panel MountShaft Diameter: 6.35mmNo. of Gangs: 1Adjustment Type: Rotary, DPSTShaft Length: 51mmTemperature Coefficient: -Potentiometer Type: StandardResistor Technology: Metal FoilPotentiometer Terminals: Solder LugResistor Case / Package: -Product Length: 60.7mmProduct Width: -Product Height: -Operating Temperature Min: -25°COperating Temperature Max: 70°CProduct OverviewThe 23ESA series Spindle Operated Potentiometer with eyelet or PC tailtermination. The potentiometers are available with printed carbon resistanceelement, choice of bush lengths in metal or plastic and insulated shafts up to50mm in length. In addition, approved mains and low current switches areavailable as standard options.Standard spindle styleVersatile design can be customised to suit your requirementsDie-cast metal bush availableInsulated bush availableRugged constructionStandard customer identityLinear resistance law
