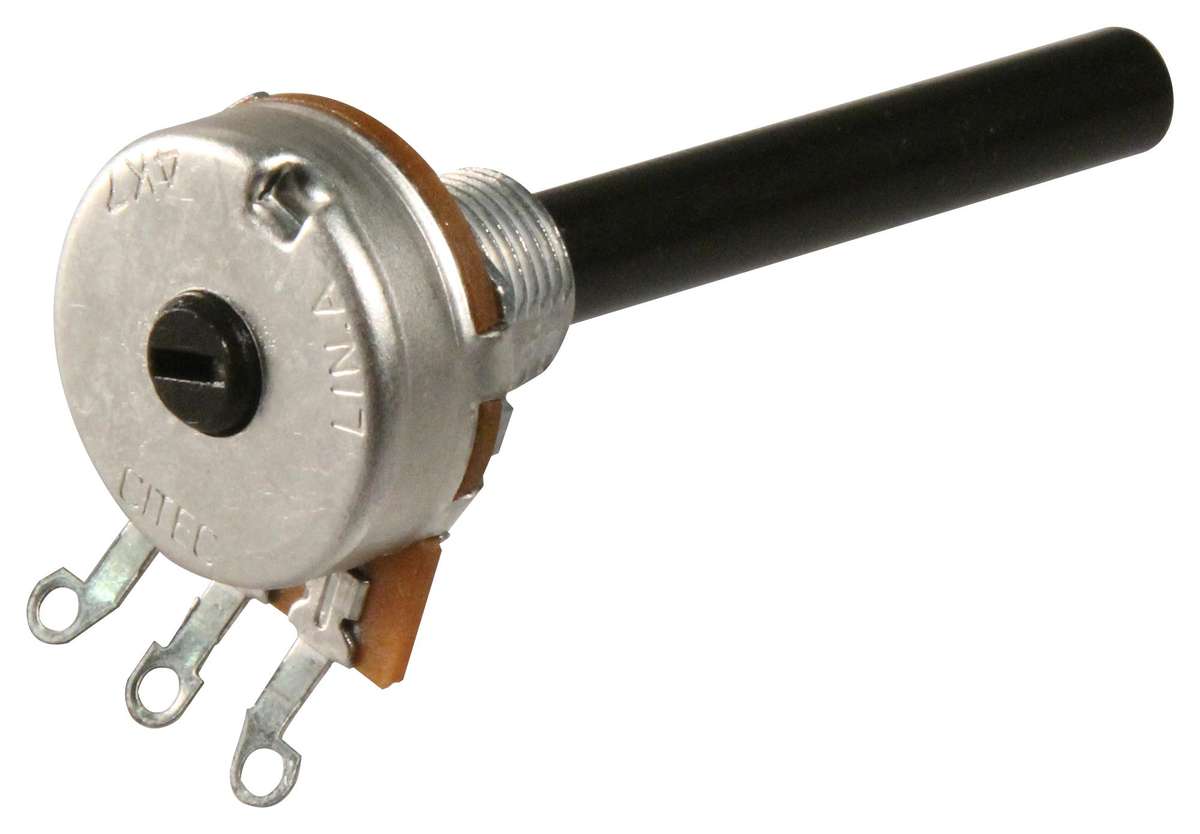

Te Connectivity (23ESA472MLA50N) Rotary Potentiometer, Spindle Operated

Te Connectivity (23ESA472MLA50N) Rotary Potentiometer, Spindle Operated

New 60 available
R375.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 7 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
2329397
Bob Shop ID
674507453
Rotary Potentiometer, Spindle Operated, 4.7 kohm, 1 Turns, Linear, 400 mW, ±20%, 23ESAProduct InformationTrack Resistance: 4.7kohmNo. of Turns: 1TurnsTrack Taper: LinearPower Rating: 400mWResistance Tolerance: ± 20%Product Range: 23ESAPotentiometer Mounting: Panel MountShaft Diameter: 6mmNo. of Gangs: 1Adjustment Type: RotaryShaft Length: 50mmTemperature Coefficient: -Potentiometer Type: StandardResistor Technology: CarbonPotentiometer Terminals: Solder LugResistor Case / Package: -Product Length: 60.7mmProduct Width: -Product Height: -Operating Temperature Min: -25°COperating Temperature Max: 70°CProduct OverviewThe 23ESA472MLA50N is a 4.7kR 400mW 1-turn 1-gang panel-mounting RotaryPotentiometer with side spindle adjustment and linear track taper. The type 23series potentiometer features printed carbon resistance element, 6mm plainshaft, eyelet terminals and versatile design can be customized to suit therequirements.Rugged constructionMounting bracketDie-cast M10x9mm no location lug and 6mm hole bush
