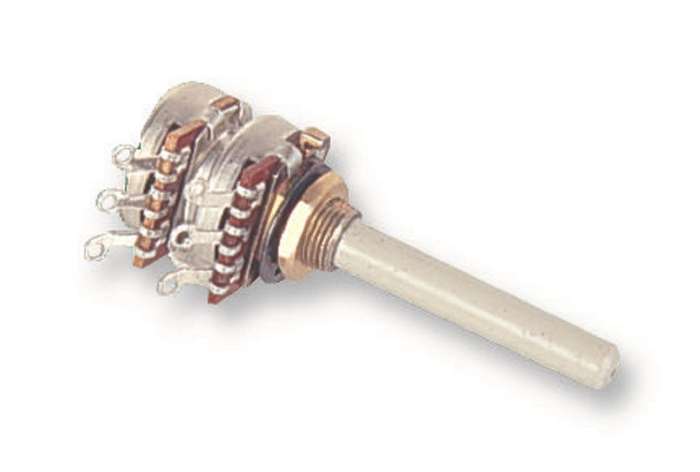

Te Connectivity (27ESA103MMF50NF) Rotary Potentiometer, Spindle Operated

Rotary Potentiometer, Spindle Operated, 10 kohm, 1 Turns, Linear, 400 mW, ± 20%,27Product InformationTrack Resistance: 10kohmNo. of Turns: 1TurnsTrack Taper: LinearPower Rating: 400mWResistance Tolerance: ± 20%Product Range: 27Potentiometer Mounting: Panel MountShaft Diameter: 6.35mmNo. of Gangs: 2Adjustment Type: Screwdriver SlotShaft Length: 50mmTemperature Coefficient: -Potentiometer Type: StandardResistor Technology: Metal FoilPotentiometer Terminals: Solder LugResistor Case / Package: -Product Length: 70.9mmProduct Width: -Product Height: -Operating Temperature Min: -25°COperating Temperature Max: 70°CProduct OverviewThe 27ESA103MMF50NF is a 10kR 400mW 1-turn 2-gang panel-mounting RotaryPotentiometer with side spindle adjustment and linear track taper. The type 23series potentiometer features printed carbon resistance element, full 6.35mmflat-special angle shaft, standard eyelet termination and versatile design canbe customized to suit the requirements.Rugged constructionMounting bracket15000 Operations minimum mechanical enduranceDie-cast 3/8"x8mm with location lug and 6.35mm hole bush
